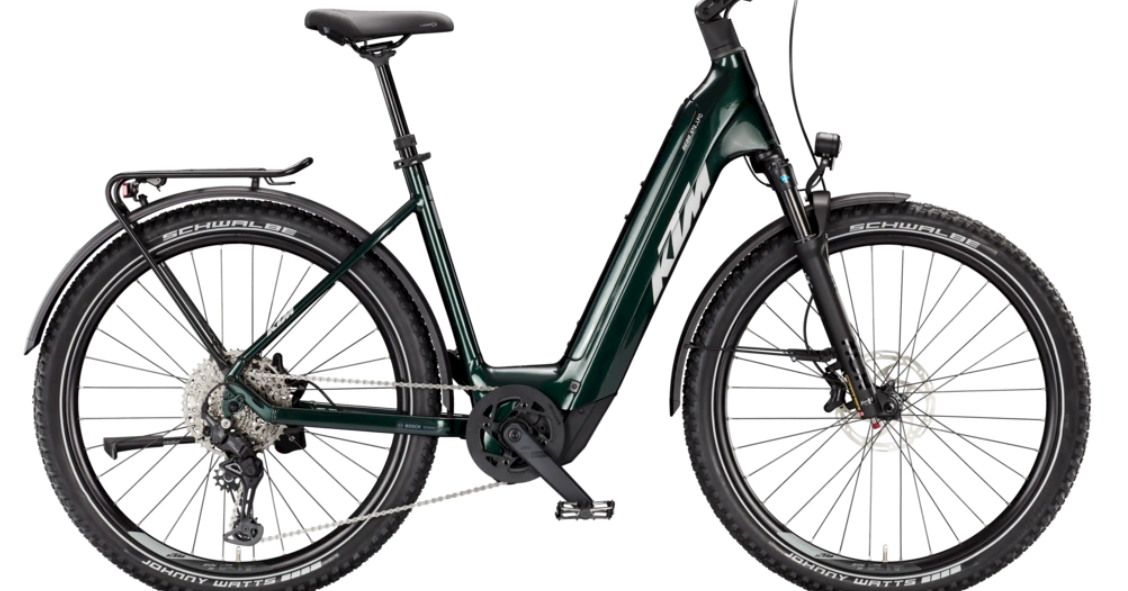

2026 KTM Macina Aera 872 LFC – 800 Wh 1×10 CUES Hardtail SUV E-Bike
Specifications
|
Specification |
Details |
|
Model |
Macina Aera 872 LFC |
|
Drivetrain Variant |
1×10 Shimano CUES (non-LinkGlide version) |
|
Vehicle Category |
Hardtail SUV E-Bike (LFC = Light-Fender-Carrier) |
|
Application |
Tour, Marathon, Commuting, Light Off-Road |
|
Starting Price (2025) |
€4,399 |
|
Color Options |
Smaragd Black (Grey) |
|
Sizes |
XS | S | M | L | XL |
Frame & Drivetrain
|
Specification |
Details |
|

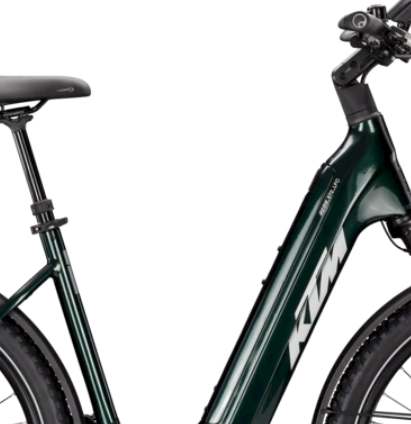

Frame |
Macina Trekking Onroad Alloy6061 | PT800 Bosch BDU38 |
|

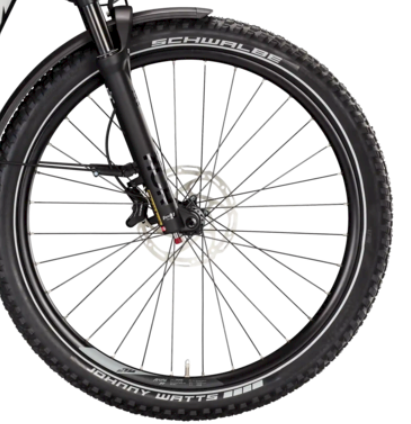

Fork |
SR Suntour XCR 34 Air LOR 27.5" 80 mm 15x110 |
|

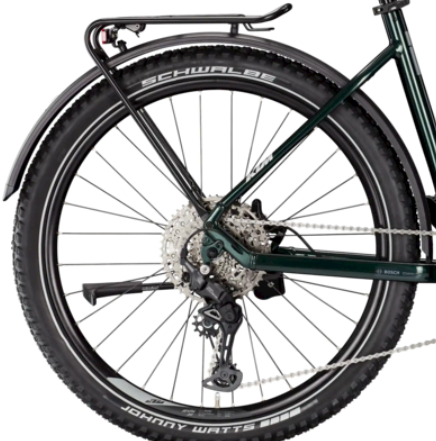

Rear Derailleur |
Shimano CUES U6000-11/10 LG shadow+ |
|
Shifter |
Shimano CUES U6000-10 |
|
Crank |
KTM E-COMP2 ISIS 170 mm |
|
Cassette |
Shimano LG400-10 11-48T |
|
Chain |
KMC e500 LG e-bike |
Components & Features
|
Specification |
Details |
|

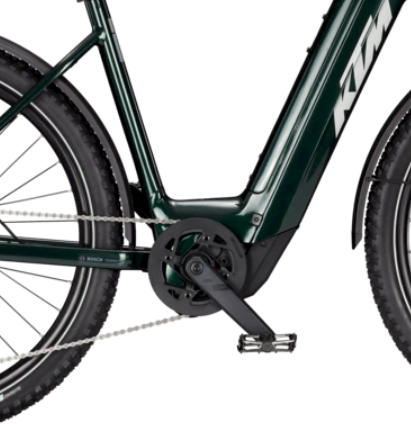

Motor |
Bosch PERFORMANCE CX BDU3840 – 100 Nm / 750 W peak |
|
Battery |
Bosch PowerTUBE 800 Wh horizontal (PTTL) |
|
Display |
Bosch LED Remote + KIOX 500 TFT Display |
|
Brakes |
Tektro HD-M535 4-piston | TR-45 180 mm rotors |
|
Wheels |
Ryde Rival30 27.5" |
|
Tires |
Schwalbe Johnny Watts Performance DD Folding Reflex 65-584 (front & rear) |
|
Lights |
F: Litemove SEC-150 150 Lux | R: integrated rear light |
|
Carrier |
KTM Alumee (Snap-it 2.0 + MonkeyLoad compatible) |
|
Fenders |
Racktime Alu 72 mm full coverage |
|
Kickstand |
KTM 28" adjustable MY2025 |
|
Weight (fully equipped) |
27.9 kg |
|
Permissible Total Weight |
138 kg |
