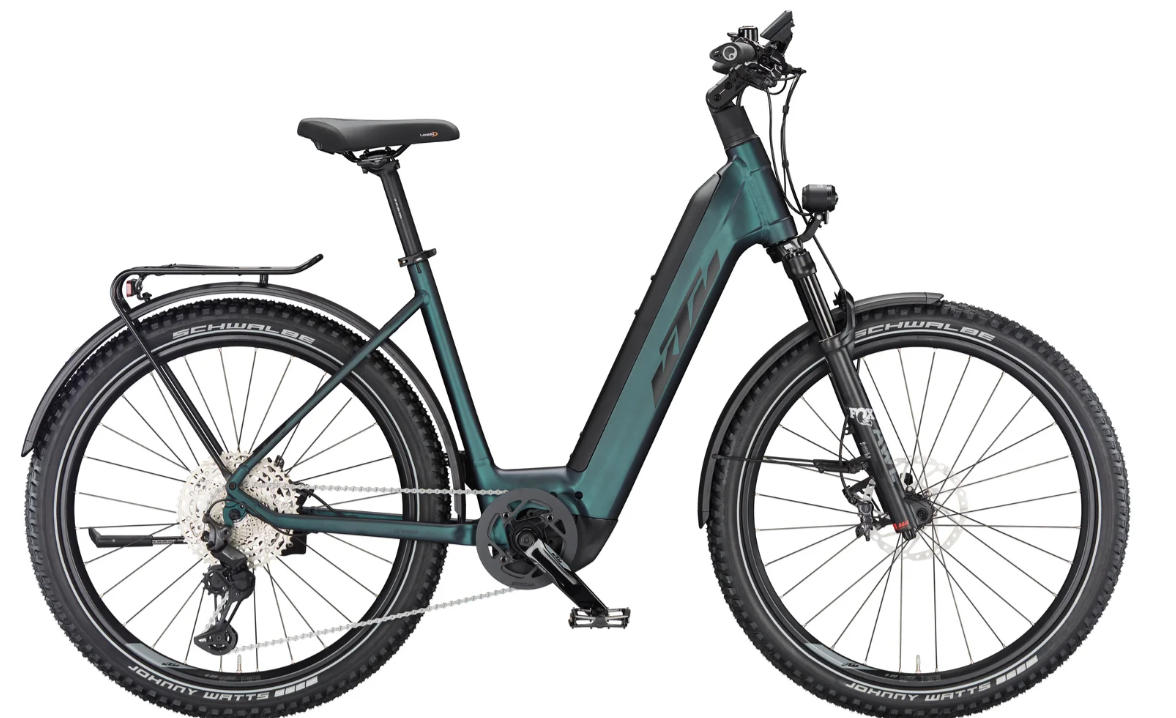

2023 KTM Macina Aera 771 LFC – Premium Light-Trekking / SUV E-MTB
Specifications
|
Specification |
Details |
|
Model |
Macina Aera 771 LFC Shimano XT 11 LG + Bosch PT-CX7K4 |
|
Vehicle Category |
Rigid Light-Trekking / SUV E-MTB (LFC = Light-Fender-Carrier) |
|
Application |
Long-distance touring, commuting, gravel/light trail – fully equipped |
|
Price (2025) |
€5,499 SRP |
|
Color |
Green Purple Flip Matt |
|
Sizes |
XS | S | M | L | XL |
Frame & Suspension
|
Specification |
Details |
|
Frame |
Macina Trekking Onroad Alloy 6061, rigid |
|

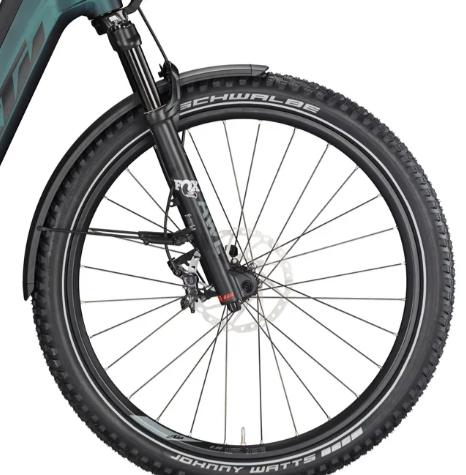

Fork |
FOX 34 Float AWL 27.5" e-bike 100 mm |
|
Travel |
100 mm front (rigid rear) |
|
Wheel Size |
27.5" |
Components & Features
|
Specification |
Details |
|
Motor |

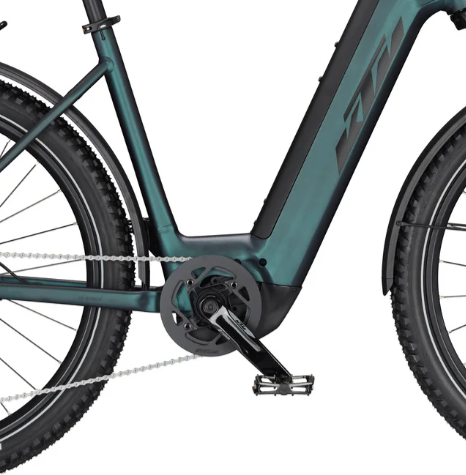

Bosch Performance Line CX Gen.4 Smart System – 85 Nm |
|
Battery |

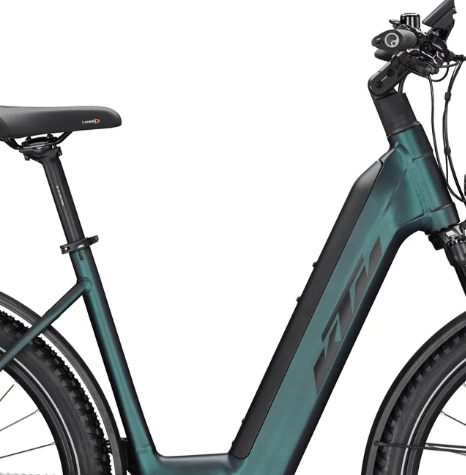

Bosch PowerTUBE 750 Wh horizontal (PTTL) |
|
Display |
Bosch KIOX 300 TFT + LED Remote Smart System |
|
Drivetrain |

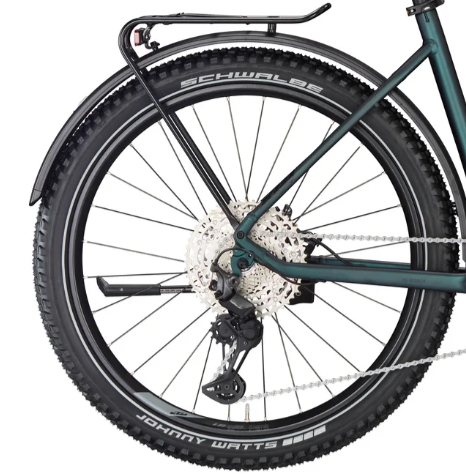

Shimano Deore XT M8130-11 LinkGlide Shadow+ |
|
Cassette |
Shimano LG400-11 11-50T |
|
Brakes |
Shimano Deore XT T8100 / M8120 4-piston |
|
Rotors |
Shimano RT64 CL 180 mm / 180 mm |
|
Wheels |
KTM Line – Ambrosio E30 Trail by DT Swiss 27.5" |
|
Tires |
Schwalbe Johnny Watts Performance DD 65-584 (both wheels) |
|
Lighting |
Litemove AE-130 High Beam 90-130 Lux front |
|
Carrier |
Racktime light (snap-it 2.0) |
|
Fenders |
Racktime Alu 72 mm B&M Xeltec |
|
Kickstand |
KTM 28" adjustable |
|
Weight |
27.40 kg (fully equipped) |
|
Permissible Total Weight |
146 kg |
