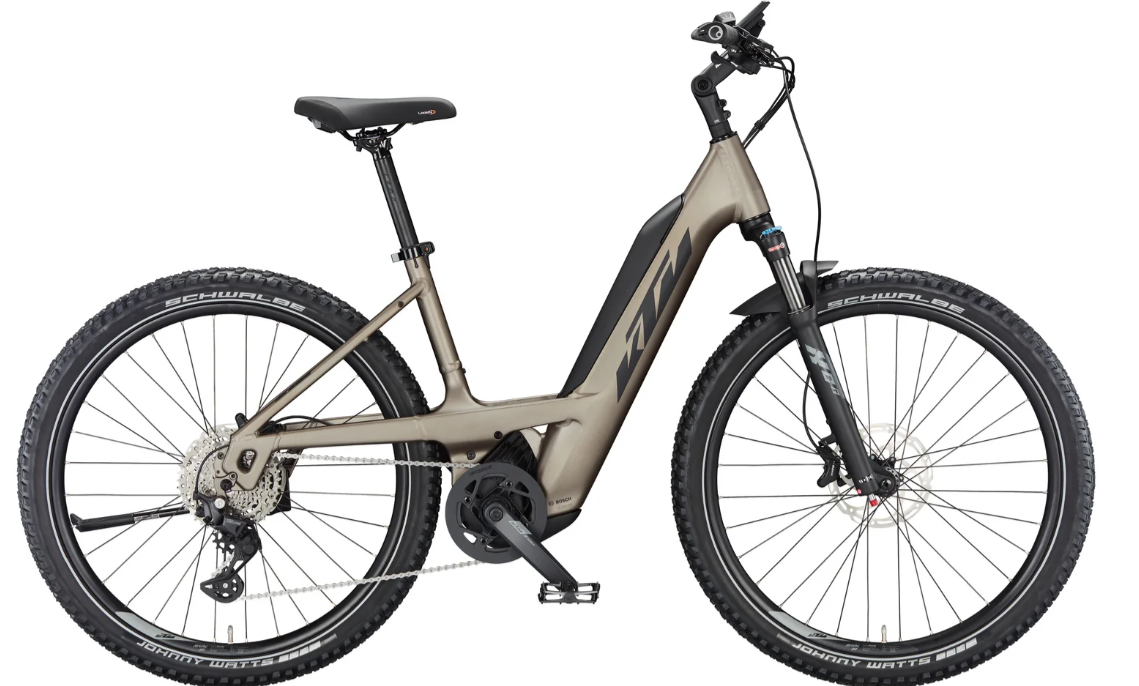

2023 KTM Macina Aera 571 LFC – Entry-Level Hardtail SUV E-Bike
Specifications
|
Specification |
Details |
|
Model |
Macina Aera 571 LFC |
|
Vehicle Category |
Hardtail SUV E-Bike (LFC = Light-Fender-Carrier) |
|
Application |
Tour, Daily Commuting, Light Trails |
|
Starting Price (2025) |
€3,899 |
|
Color Options |
Dew Silver Matt (Black + Orange) |
|
Sizes |
XS | S | M | L |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Macina Trekking Onroad Alloy6061 | PT750 Bosch Gen.4 |
|

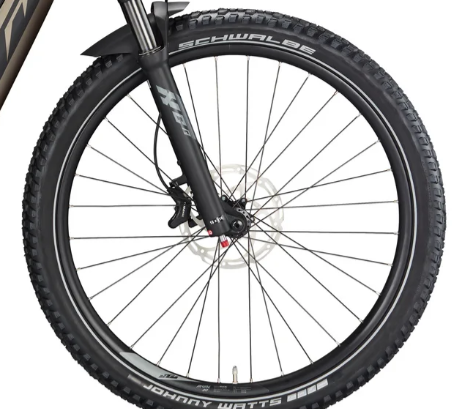

Fork |
SR Suntour XCM 32 coil 27.5" NLO 80 mm |
|

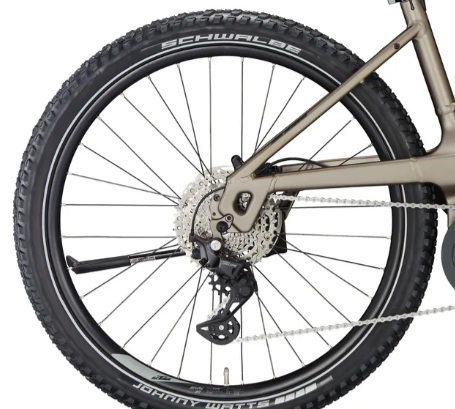

Rear Derailleur |
Shimano Deore M5130-10 LG shadow+ |
|
Shifter |
Shimano Deore M5130-10 LG |
|
Crank |
KTM E-COMP ISIS 170 mm | FSA Megatooth 38T + chainguard |
|
Cassette |
Shimano LG400-10 11-43T |
|
Chain |
Shimano LG500 |
Components & Features
|
Specification |
Details |
|

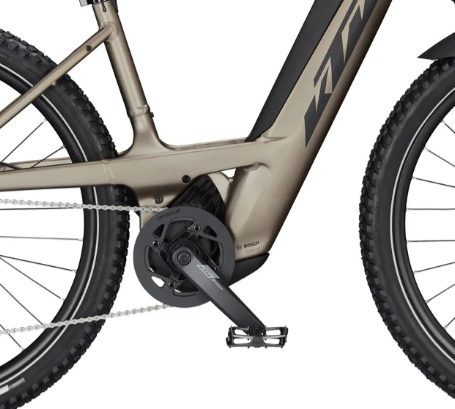

Motor |
Bosch PERFORMANCE CX Gen.4 SMART SYSTEM – 85 Nm |
|

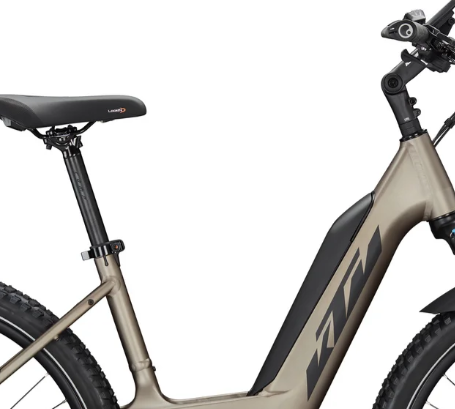

Battery |
Bosch PowerTUBE 500 Wh SMART SYSTEM horizontal (PTTL) |
|
Display |
Bosch LED Remote + INTUVIA 100 LCD Display |
|
Brakes |
Tektro HD-T390 / E390 2-piston | TR-45 180 mm rotors |
|
Wheels |
Ryde Rival30 27.5" on Shimano Deore M6000 hubs |
|
Tires |
Schwalbe Smart Sam Performance RT 57-584 (front & rear) |
|
Lights |
F: B&M Lumotec DOPP 35 Lux | R: B&M Toplight 2C LED |
|
Carrier |
KTM light (Snap-it 1.0) |
|
Fenders |
SKS A65R 65 mm black matt |
|
Kickstand |
KTM 28" adjustable |
|
Weight (fully equipped) |
26.30 kg |
|
Permissible Total Weight |
145 kg |
