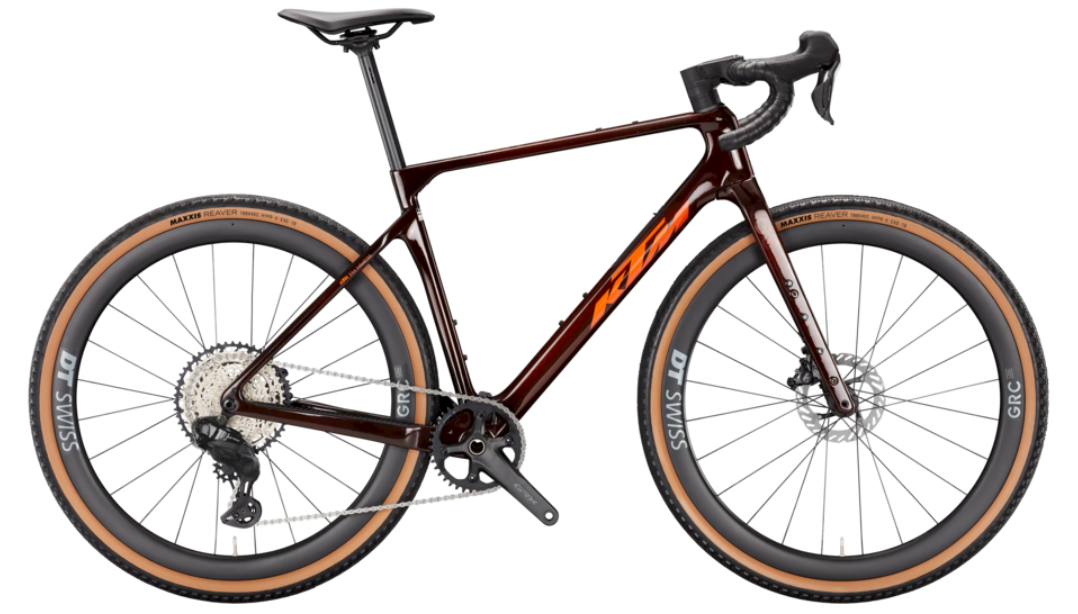

2026 KTM Gravelator Master – Carbon Gravel All-Star
Specifications
|
Specification |
Details |
|
Model |
Gravelator Master 1×12 Shimano GRX Di2 |
|
Vehicle Category |
Premium Carbon Gravel Bike with FIS & Flexibridge |
|
Application |
Fast Gravel, Bikepacking, All-Road Adventures |
|
Price (2025) |
€3,299 SRP |
|
Color |
Oranged Carbon |
|
Sizes |
XS | S | M | L | XL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Gravelator Carbon x1 – FIS storage + Flexibridge |
|
Fork |
Gravel Carbon Fork F18 with mounts |
|

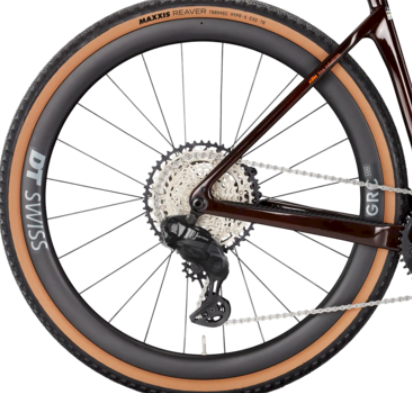

Drivetrain |
Shimano GRX Di2 RX827 12-speed electronic |
|
Cassette |
Shimano SLX M7100 10-51T |
|

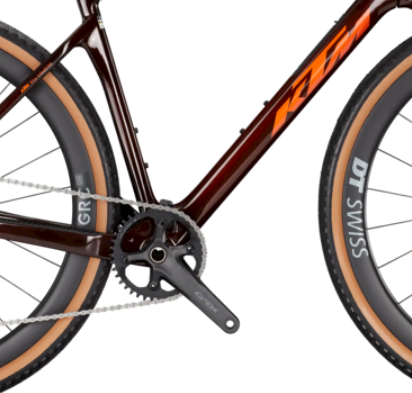

Crankset |
Shimano GRX RX610 40T |
Components & Features
|
Specification |
Details |
|
Brakes |
Shimano GRX RX825 / RX820 hydraulic |
|
Rotors |
Shimano CL700 Centerlock 160 mm Freeza |
|

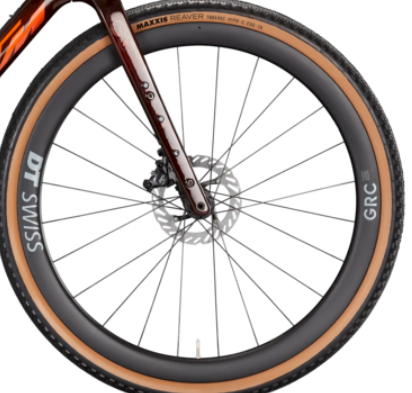

Wheels |
DT Swiss GRC LOG Carbon tubeless-ready |
|
Tires |
Maxxis Reaver Hypr-X Exo TR 45-622 |
|

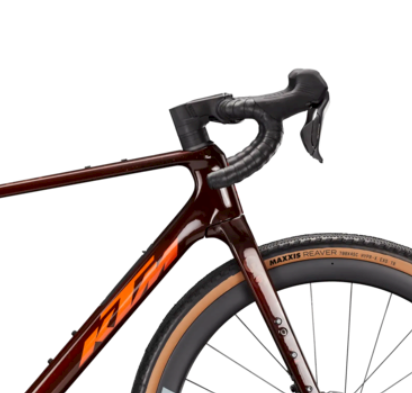

Handlebar |
KTM TEAM II Gravel 20° flare |
|
Saddle |
Fizik Terra Argo X5 |
|
Seatpost |
KTM TEAM II 27.2 mm |
|
Weight |
9.4 kg (size M, tubeless) |
|
Permissible Total Weight |
109 kg |
