Specification

Details

Engine

233cc, single-cylinder, 4-stroke, SOHC, air-cooled, fuel-injected, electric start

Power

18 hp (Japan spec)

Torque

13.5 lb-ft at 6,000 rpm (estimated)

Transmission

6-speed manual with wet multi-disc clutch

Brakes

Front 240mm petal disc with Nissin twin-piston caliper, rear 220mm petal disc with Nissin single-piston caliper

Suspension

Front 37mm telescopic fork (9.8 in travel), rear Uni-Trak shock, adjustable preload (10.0 in travel)

Wheel Size

Front 21-inch, rear 18-inch

Tyres

IRC Trails GP, front 2.75-21, rear 4.10-18

Weight

293.2 lb (curb)

Dimensions

Wheelbase 53.7 in, ground clearance 10.4 in, seat height 34.6 in

Fuel Tank Capacity

2.0 gal

Variants

KLX230, KLX230S (lower-seat dual-sport)

Price (MSRP, USA)

$5,299 USD(Year-2025)

Specification

Details

Chassis

High-tensile steel perimeter frame

Engine Type

Single-cylinder, 4-stroke, SOHC, air-cooled, fuel-injected

Clutch

Wet multi-disc, manual

Gearbox

6-speed manual

Specification

Details

Front Suspension

37mm telescopic fork, 9.8 in travel

Rear Suspension

Uni-Trak shock, adjustable preload, 10.0 in travel

Front Brake

240mm petal disc, Nissin twin-piston caliper

Rear Brake

220mm petal disc, Nissin single-piston caliper

Specification

Details

Wheels

Aluminium rims, 21-inch front, 18-inch rear

Tyres

IRC Trails GP, front 2.75-21, rear 4.10-18

Wheel Size

Front 21-inch, rear 18-inch

Specification

Details

Seat

Dual-sport, 6mm thicker urethane, flat silhouette

Handlebar

Steel, ERGO-FIT adjustable

Instrument Cluster

All-digital LCD (speedometer, odometer, dual trip meters, fuel gauge, clock, Bluetooth)

Features

Dual-LED headlight, ERGO-FIT (adjustable handlebars/footpegs), KX-inspired styling, low-fuel light, keyed ignition, oval silencer

Safety Features

Engine kill switch

Specification

Details

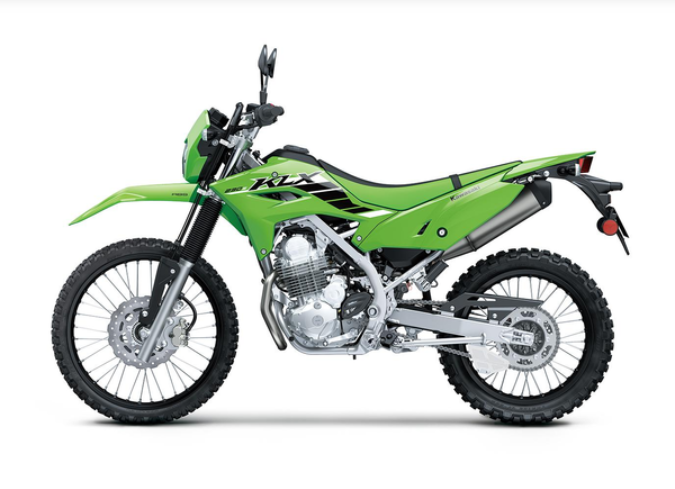

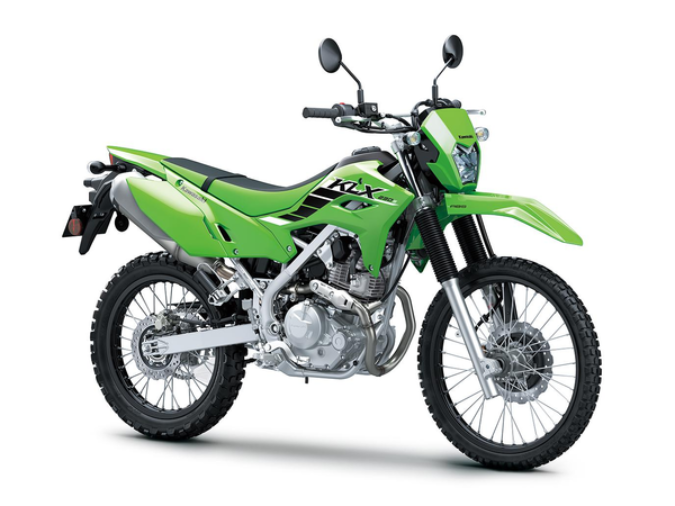

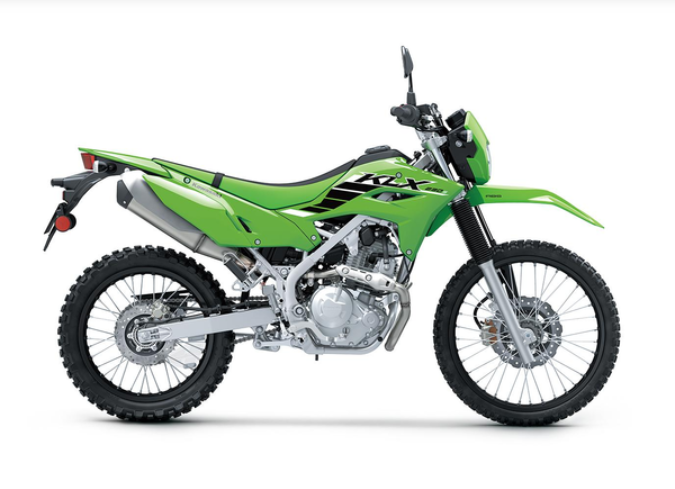

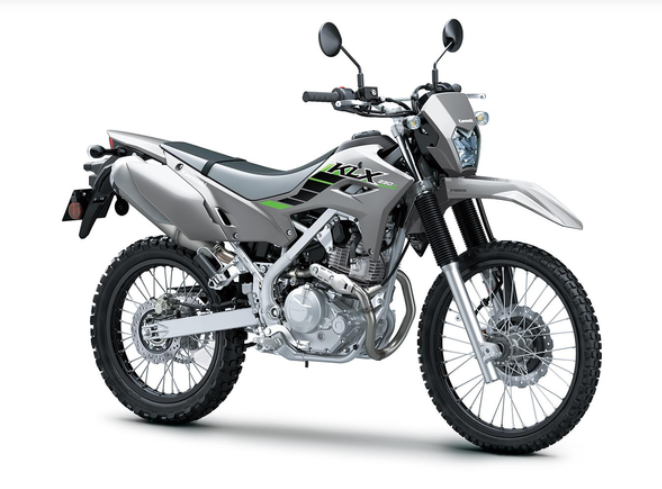

Colors

Battle Gray, Lime Green
