Specification

Details

Model

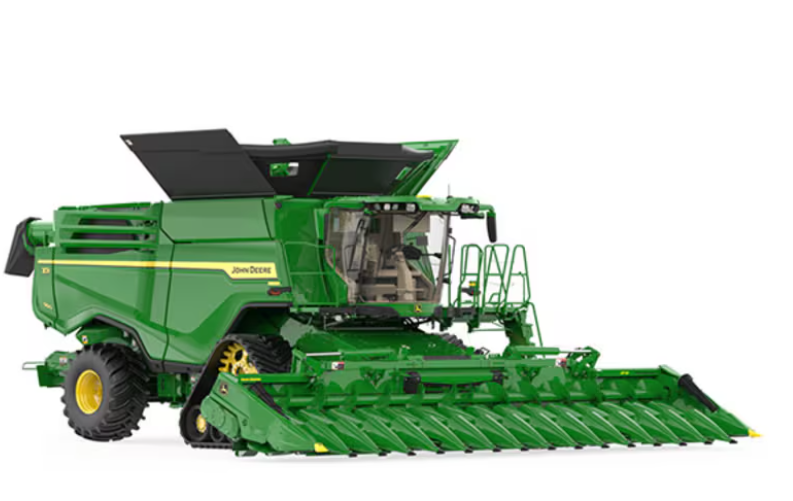

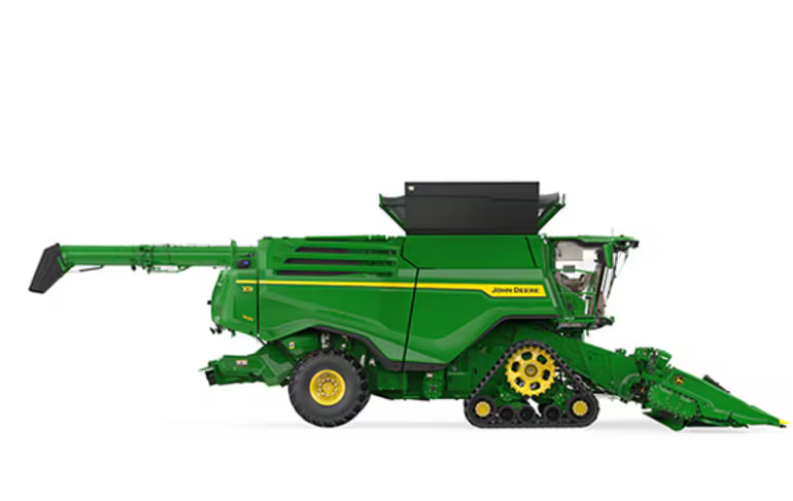

John Deere X9 1100

Vehicle Category

Combine Harvester

Fuel Type

Diesel

Application

Corn, wheat, soybeans, canola, barley, and other grains

Specification

Details

Engine

JD14, 13.6 L (830 cu.in.), Rated speed: 1900 RPM

Gross Horsepower

603 HP (450 kW) at rated speed, 690 HP (515 kW) peak power

Transmission Type

ProDrive™ XL

Specification

Details

Suspension

Ultimate Suspension Package (optional)

Specification

Details

Tracks

30" Tracks (3.8 m width and 3.0 m CTF), 30" Tracks (no width restriction), 36" Tracks (no width restriction)

Front Tires

IF 800/60R38 CFO+ 193A8 R-1W, VF 900/60R38 CFO+ 193A8 R-1W, IF 1100/50R42 CFO 197B R-1W, LSW 1100/45R46 CFO 195D R-1W, VF1100/45R46 CFO 201D R-1W, VF1250/35R46 CFO 202B R-2, VF 580/85R42 CFO 183B R-2 Duals, VF 580/85R42 CFO 183B R-1W Duals, IF 580/85R42 CFO 178A8 R-1W Duals, 650/85R38 173A8/B R-1W Duals, 650/85R38 176A8 R-1W Duals, VF 710/70R42 CFO 184B R-1W Duals, VF 710/70R42 CFO 193B R-1W Duals

Rear Tires

500/85R30 IMP 179A8/160A8, VF 620/70R26 CFO+ 173A8, VF 620/75R26 CFO 172B, VF 620/75R26 CFO 178D, VF 710/65R26 177D R-2, VF 750/60R30 CFO 180D, VF 750/65R26 CFO+ 180A8, VF 750/65R26 177B, VF 750/65R26 177D, VF 750/65R26 CFO 180B

Specification

Details

Feeding System

Fixed or variable drive, Four-strand chain with formed steel slats, Width: 1720 mm (67.7 in.), Eight-wing chevron Feed Accelerator and Stone Trap (FAST), Modulated feederhouse reverser

Threshing/Separating System

Dual rotor, Rotor length: 3.5 m (11.5 ft.), Rotor diameter: 60 cm (24 in.), Rotor speed range: 300-1300 RPM, Concave area: 1.6 m² (17.22 ft²), Separating area: 3.6 m² (38.75 ft²), Discharge grate area: 0.45 m² (4.85 ft²), Separator grate covers, Threshing elements, Separator tines, Kondex® Revolution™ half-width concaves, Concave threshing inserts, Concave cover plates

Cleaning System

Front chaffer: 0.97 m² (10.4 ft²), Chaffer: 3.13 m² (33.69 ft²), Sieve area: 2.87 m² (30.89 ft²), Total cleaning area: 6.97 m² (75.02 ft²), Cleaning fan speed: 570-1430 RPM

Grain Handling

Grain tank size: 16210 L (460 bu.), Unloading auger length: 7.9 m (26 ft.), 8.7 m (28.5 ft.), or 9.45 m (31 ft.), Unloading rate: 186.7 L/sec (5.3 bu./sec)

Fuel Tank Capacity

1249 L (330 gal.)

Front-End Equipment Compatibility

CR Rigid Corn Heads (C12R, C16R, C18R, C12R StalkMaster, C16R StalkMaster, C18R StalkMaster), CF Folding Corn Heads (C12F, C16F, C18F, C12F StalkMaster, C16F StalkMaster, C18F StalkMaster), RDF HydraFlex Drapers (RD35F, RD40F, RD45F), HDR Rigid Cutterbar Drapers (HD35R, HD40R, HD45R, HD50R), BP Belt Pickup (BP15)

Features

Signature Edition (Ultimate Comfort and Convenience Package, Ultimate Visibility Package with 360-degree LED lights, LED lights under each wing, electric and heated mirrors, front and right-hand sunshades, back-up camera, grain tank and unloading auger cameras, lighting on sides and under grain tank covers, Ultimate Suspension Package, Ultimate Technology Package with G5Plus CommandCenter™ Display, AutoTrac™ Guidance, Documentation, Data Sync, StarFire™ 7500 Receiver, JDLink™ Modem, AutoPath™, AutoTrac™ Turn Automation, Machine Sync, In-Field Data Sharing, SF-RTK, Harvest Settings Automation, Terrain Settings Automation, Predictive Ground Speed Automation, Harvest IPM, G5 Advanced Package, Forward cameras), Premium Visibility Package (LED lights under each wing, electric and heated mirrors, front sunshade, back-up camera, grain tank mirrors), Connect Mobile app, Operations Center Mobile app, Foot rests, Heated floor mat, Tablet mount
