Specification

Details

Model

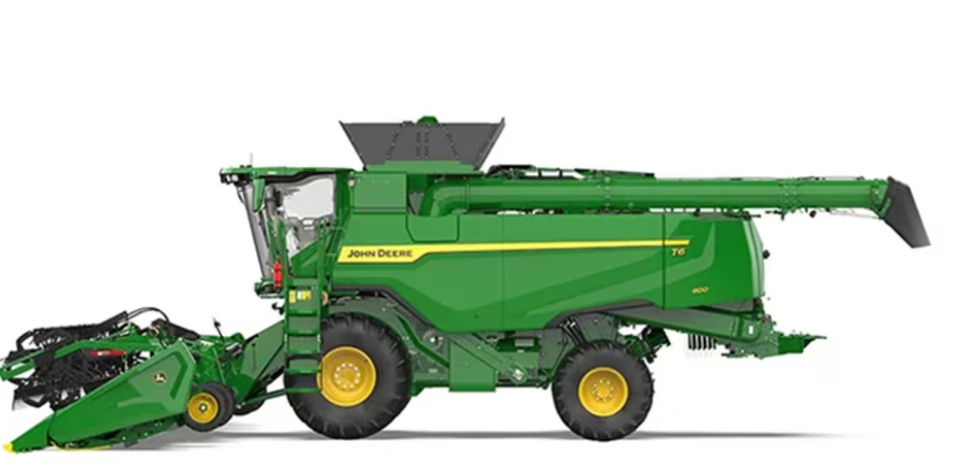

John Deere T6 800

Vehicle Category

Combine Harvester (Class 7, Conventional Straw Walker)

Fuel Type

Diesel

Application

Corn, soybeans, wheat, barley, canola, small grains, rice

Specification

Details

Engine

John Deere PowerTech™ PSS, 9.0 L (549 cu in.), Stage V, Rated speed: 2200 RPM, L40 control system for improved fuel dosing and serviceability

Gross Horsepower

402 HP (300 kW) at rated speed, 461 HP (344 kW) max power, Power boost: 34 HP (25 kW)

Transmission Type

Three-speed or ProDrive™ stepless transmission, Max speed: 40 km/h (25 mph, depending on country regulation)

Specification

Details

Suspension

Select: Vision cloth, mechanical controls, mechanical lumbar, 8º LH / 16º RH swivel; Premium: Vision cloth, electronic controls, pneumatic lumbar, 16º LH / 16º RH swivel; Ultimate: Vision cloth, electronic controls, pneumatic lumbar, 16º LH / 16º RH swivel, heated/ventilated, active fatigue prevention, adjustable bolsters, ActiveSeat™ II (optional, reduces vertical motion up to 90%)

Specification

Details

Tracks

24 inch John Deere Tracks (1.23 m² ground contact area), 30 inch John Deere Tracks (1.54 m² ground contact area)

Tires

650/75 R32, 680/85 R32, 680/75 R38, 800/65 R32, 800/70 R32, 900/60 R32, 520/85 R42 Dual Tires

Specification

Details

Feeding System

Xtra capacity feederhouse, 4 conveyor chains, Slip clutch: 900 Nm, Header reverser power: 59 kW (79 HP), Feederhouse speed: 3.6 m/sec, Cutting angle adjustment: 18° (12° on HillMaster), Lateral tilt: 8° (18° on HillMaster), Channel width: 1670 mm

Threshing/Separating System

Threshing cylinder: 660 mm diameter, 10 rasp bars, Wrapping angle: 124°, Cylinder speed range: 470-950 RPM (optional dual range: 250-470 & 470-950 RPM), Small grain concave (for very dry conditions), Universal concave (for small and coarse grains), Sectional concave with swappable inserts, Quick engage booster bar, Xtra Large Separator (800 mm diameter, 380/760 RPM), Tangential Plus Separator grate, Rear beater (400 mm diameter, single speed), Rear beater grate (2-position adjustable), Total active separation area: 4.0 m² (1.35 m² concave, 2.1 m² tine separator, 0.55 m² rear beater)

Cleaning System

DynaFlo Plus cleaning system, 6 conveying augers, Front chaffer with two ventilated steps, Chaffer: 2.6 m², Sieve: 2.3 m², Total cleaning shoe area: 4.9 m² (5.5 m² with fingers and rakes), Single range fan drive: 550-1350 RPM (optional dual range: 300-600 & 550-1350 RPM), Max fan air volume: 740 m³/min, Electric sieve adjustment, Tailings return to threshing cylinder

Grain Handling

Grain tank volume: 11000 L (312 bu) or 13500 L (383 bu, requires ProDrive, not available with HillMaster), Unloading auger swing range: 105°, Peak unloading rate: 150 L/s (4.3 bu/s), Tool-less cross auger cleanout hatches, Adjustable auger spout

Fuel Tank Capacity

800 L (211 gal), DEF capacity: 48 L (12.6 gal)

Transport Width

24” Tracks: 3.49 m, 30” Tracks: 3.79 m, 650/75 R32: 3.49 m, 680/85 R32: 3.49 m, 680/75 R38: 3.49 m, 800/65 R32: 3.79 m, 800/70 R32: 3.79 m, 900/60 R32: 3.99 m, 520/85 R42 Dual Tires: 5.19 m

Max Shipping Height

4 m

Shipping Length

< 9.5 m (with shortest or folded unloading auger, depending on configuration)

Weight

Approx. 16500 kg (36380 lb, depending on options)

Features

Select Visibility Package (LED working lights, mechanical mirrors, front sunshade, front wiper, backup camera), Premium Visibility Package (LED working lights, electric and heated mirrors, front sunshade, front wiper, backup camera, camera ready), Ultimate Visibility Package (LED working lights, electric and heated mirrors, front and right-side sunshades, front and right-side wipers, backup camera, grain tank and unload auger cameras, hitch), 4-row FineCut Chopper (68 knives) or ExtraFineCut Chopper (124 knives, 3200/1800 RPM), Remote knife adjustment, Chaff spreader (optional), Electrical adjustable vane tailboard (optional), HillMaster leveling system (up to 22% incline, optional), SideHill Package (up to 14% incline, optional), X-Traction 4WD axle with limited slip differential lock (optional), Traction Control Anti Slip Management (with ProDrive and X-Traction axle), Integrated G5Plus CommandCenter™ Display (12.8” HD), G5Plus extended monitor (optional), StarFire™ 7500 Receiver, JDLink™ Modem, HarvestDoc Moisture and Yield Documentation, Ground Speed Automation (with ProDrive), AutoTrac Guidance, AutoTrac Row Sense Guidance (for corn headers, optional), Automatic Combine Adjustment, Harvest Recommendations, Optimize Performance, Service ADVISOR™ Remote, Remote Display Access, Wireless Data Transfer, Yield Analysis and Work Planner via Operations Center, Up to 40 ft rigid draper header with flexible cutter bar, 35 ft hinged flex draper header, Passenger seat, Automatic air conditioning and heating, LED service and maintenance lights (27300-42700 lumen), Air compressor (optional), Carpeted floor mat, Leather-wrapped steering wheel, Dual tilt column, Refrigerator (optional), Up to 4 cameras
