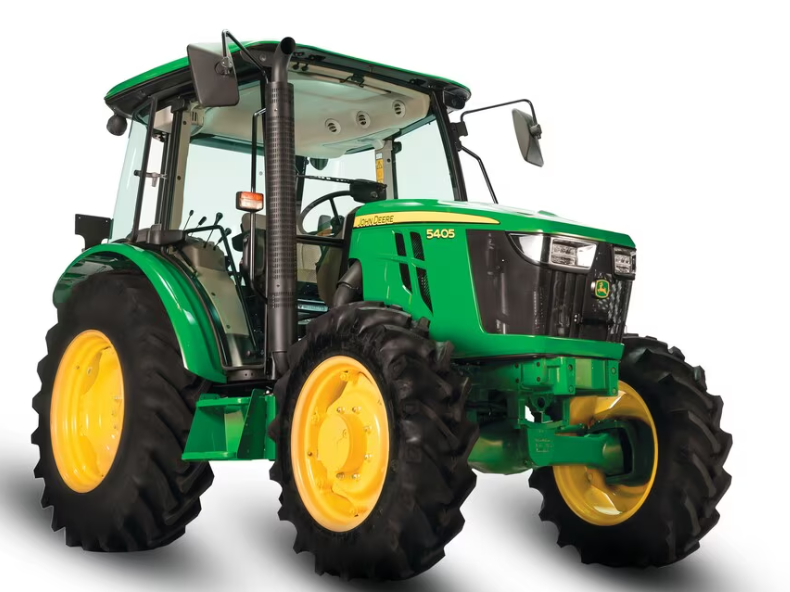

John Deere 5405 PowerTech™ 4WD – Agricultural Tractor by John Deere
Specifications
|
Specification |
Details |
|
Tractor Model |
5405 PowerTech™ 4WD |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
John Deere 3029H, 57 HP (42 kW), 2100 RPM, 3 Cylinders, Turbo Charged, HPCR fuel injection system, Coolant cooled with overflow reservoir |
|
Air Filter |
Dry Type, Dual element |
|
Clutch |
Dual, Dry |
|
Transmission Type |
GearPro (Collarshift) |
|
Number of Gears |
12 Forward + 4 Reverse |
|
Speeds |
Forward 1.9 - 32.6 kmph (GearPro), Reverse (GearPro, not specified) |
|
Mechanical Front-Wheel Drive (MFWD) Axle |
Limited-slip, heavy-duty |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Oil immersed disc brakes |
|
Steering Type |
Power, Tilt & Telescopic (Cab) |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
11.2 x 24, 8 PR |
|
Rear Tyres |
16.9 x 30, 12 PR |
Components & Features
|
Specification |
Details |
|
Maximum Lifting Capacity |
2000 kgf |
|
Power Take Off |
Independent, 6 Splines, 540 @ 2100 ERPM (Standard), 540 @ 1600 ERPM (Economy, Optional), 516 @ 2100 ERPM (Reverse, Optional) |
|
Fuel Tank Capacity |
71 L (Open operator station), 82 L (Cab) |
|
Electrical System |
85 Ah, 12 V battery, 800 CCA, 60 Amp alternator, 12 V, 2.5 kW starter motor |
|
Total Weight |
2600 kg |
|
Wheelbase |
2050 mm |
|
Overall Length |
3678 mm |
|
Overall Width |
1944 mm |
|
Ground Clearance |
425 mm |
|
Service Interval |
500 hours (Engine oil) |
|
Additional Features |
Dual Engine Mode switch (Economy & Standard), High back-up torque, HPCR fuel injection system, Dual Torque Mode, Wider platform with rear floor extensions, Combination Switch, CleanPro™ reversible fan, PermaClutch™ Dual Clutch Dual PTO, JDLink Operations Center |
|
Optional Features |
Electro-Hydraulic (EH) Clutch, 12F+12R PowrReverser Transmission, 9F+3R Creeper Transmission, 2500 kgf lift capacity, Tilt steering (Open operator station), Tilt & Telescopic steering (Cab) |
