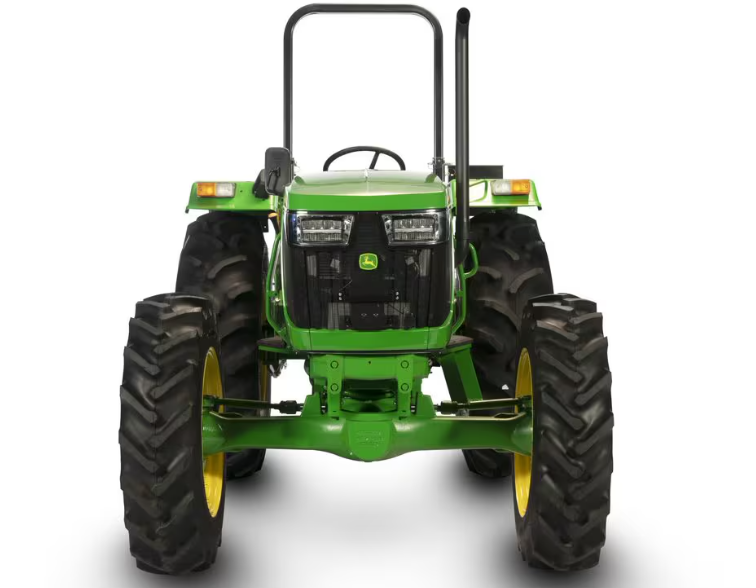

John Deere 5310 PowerTech™ 2WD – Agricultural Tractor by John Deere
Specifications
|
Specification |
Details |
|
Tractor Model |
5310 PowerTech™ 2WD |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
John Deere 3029H, 57 HP (42 kW), 2100 RPM, 3 Cylinders, Turbo Charged, HPCR fuel injection system, Coolant cooled with overflow reservoir |
|
Air Filter |
Dry Type, Dual element |
|
Clutch |
Dual, Dry |
|
Transmission Type |
GearPro (Collarshift) |
|
Number of Gears |
12 Forward + 4 Reverse |
|
Speeds |
Forward 2.8 - 32.6 kmph (GearPro), Reverse 3.5 - 20 kmph (GearPro) |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Oil immersed disc brakes |
|
Steering Type |
Power |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
6.5 x 20, 8 PR |
|
Rear Tyres |
16.9 x 28, 12 PR |
Components & Features
|
Specification |
Details |
|
Maximum Lifting Capacity |
2000 kgf |
|
Power Take Off |
Independent, 6 Splines, 540 @ 2100 ERPM (Standard), 540 @ 1600 ERPM (Economy, Optional), 516 @ 2100 ERPM (Reverse, Optional) |
|
Fuel Tank Capacity |
71 L |
|
Electrical System |
85 Ah, 12 V battery, 800 CCA, 60 Amp alternator, 12 V, 2.5 kW starter motor |
|
Total Weight |
2320 kg |
|
Wheelbase |
2050 mm |
|
Overall Length |
3678 mm |
|
Overall Width |
2243 mm |
|
Ground Clearance |
520 mm |
|
Turning Radius with Brakes |
3181 mm |
|
Service Interval |
500 hours (Engine oil) |
|
Additional Features |
High back-up torque, New Styling Hood with louvers and LED Headlamps, HPCR fuel injection system, Dual Torque Mode, Wider platform with rear floor extensions, Combination Switch, CleanPro™ reversible fan, PermaClutch™ Dual Clutch Dual PTO, JDLink Operations Center |
|
Optional Features |
Electro-Hydraulic (EH) Clutch, 12F+12R PowrReverser Transmission, 9F+3R Creeper Transmission, 2500 kgf lift capacity, Tilt steering |
