Specification

Details

Tractor Model

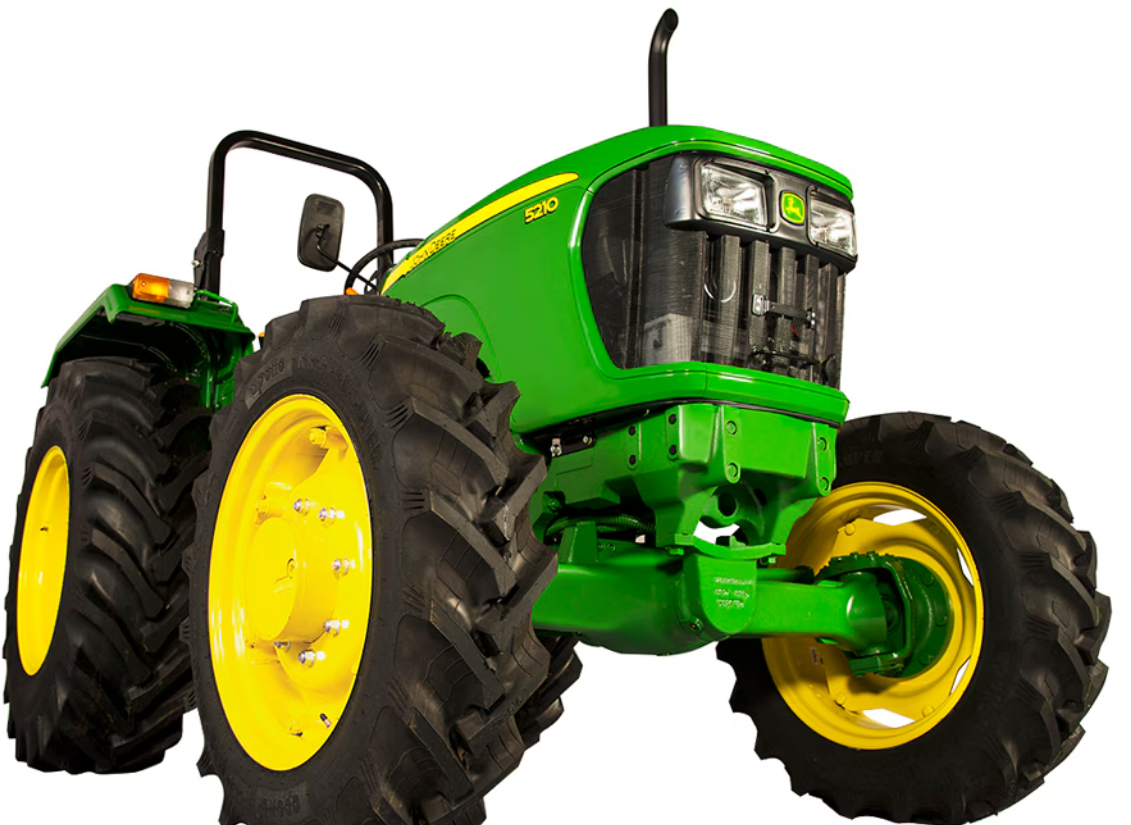

John Deere 5210 GearPro™ 2WD

Vehicle Category

2WD Tractor

Fuel Type

Diesel

Application

2WD Utility Tractor

Specification

Details

Engine Type

Direct injection, Turbocharged, Inline FIP, Coolant cooled with overflow reservoir

Number of Cylinders

3

Engine Rated RPM

2100

Backup Torque

38%

Transmission Type

Collarshift, Top Shaft Synchronizer (TSS)

Drive Type

2WD

Number of Gears

12 Forward + 4 Reverse

Forward Speed Range

1.9 – 31.5 kmph

Reverse Speed Range

3.4 – 22.1 kmph

Forward Range

A, B, C

Reverse Range

R

Gear Options

1, 2, 3, 4

Final Drives

Planetary Gear

Power Range

50 HP

Specification

Details

Brake Type

Self-adjusting, Self-equalizing, Hydraulically actuated, Oil Immersed Disc Brakes

Steering Type

Power Steering

Specification

Details

Front Tyres

6.5 x 20 (0.17 x 0.51 m), 8 PR

Front Tyres (Optional)

7.5 x 16 (0.19 x 0.41 m), 8 PR

Rear Tyres

16.9 x 28 (0.43 x 0.71 m), 12 PR

Rear Tyres (Optional)

14.9 x 28 (0.38 x 0.71 m), 12 PR

Specification

Details

Hydraulics Lifting Capacity

2000 kgf / 2500 kgf (optional)

3 Point Linkage

Category-II

Hydraulic Control System

Automatic Depth & Draft Control (ADDC)

Selective Control Valve

Yes

Electrical Quick Raise and Lower

Yes

PTO Type

Independent, 6 Splines

PTO Speed Standard

540 @ 2100 RPM

PTO Speed Economy

540 @ 1600 RPM

Dual PTO

Yes (Optional)

Reverse PTO

Yes (Optional)

Clutch Type

Dual

Fuel Tank Capacity

68 L

Battery

88 Ah, 12 V

Alternator

40 Amp, 12 V

Starter Motor

2.5 kW, 12 V

Total Weight

2110 kg

Wheel Base

2050 mm

Overall Length

3535 mm

Overall Width

1850 mm

Turning Radius with Brakes

3150 mm

Air Cleaner Type

Dry Type, Dual element

Suspended Pedals

Yes

Sway Bar

Yes

Ballast Weights

Yes

Canopy

Yes

Canopy Holder

Yes

Draw Bar

Yes

Wagon Hitch

Yes
