John Deere 5205 – Agricultural Tractor by John Deere
Specifications
|
Specification |
Details |
|
Tractor Model |
5205 |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
48 HP, 2100 RPM, 3 Cylinders, Coolant cooled with overflow reservoir, Naturally Aspirated |
|
Air Filter |
Dry type, Dual element |
|
Clutch |
Single |
|
Transmission Type |
Collarshift |
|
Number of Gears |
8 Forward + 4 Reverse |
|
Speeds |
Forward 2.96 - 32.39 km/h, Reverse 3.89 - 14.90 km/h |
|
3 Point Linkage |
Category II, Automatic Depth & Draft Control |
|
Inboard Planetary Final Drives |
Yes |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Wet-disc brakes |
|
Steering Type |
Power |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
7.5 x 16, 8 PR |
|
Rear Tyres |
14.9 x 28, 12 PR |
Components & Features
|
Specification |
Details |
|
Maximum Lifting Capacity |
1600 kgf at lower link ends |
|
Power Take Off |
Independent, 6 Splines, 540 @ 2100 ERPM (Standard), 540 @ 1600 ERPM (Economy, Optional) |
|
Total Weight |
1870 kg |
|
Wheelbase |
1950 mm |
|
Overall Length |
3355 mm |
|
Overall Width |
1778 mm |
|
Ground Clearance |
375 mm |
|
Turning Radius with Brakes |
2900 mm |
|
Additional Features |

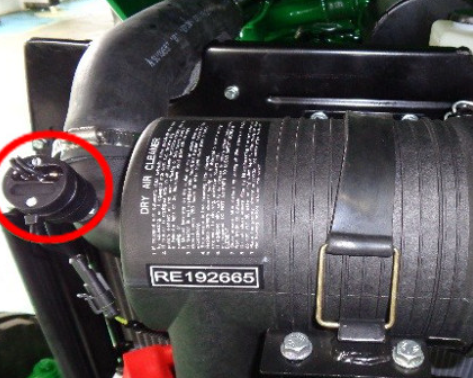

High engine torque, Piston spray jet system, Engine oil cooler, Dry-type air filter with air restriction indicator, Power steering, Wet-disc brakes, Inboard planetary final drives, Comfortable seat with Side Shift Gear Levers |
|
Optional Features |
Dual Clutch, Mechanical Quick Raise and Lower (MQRL) |
