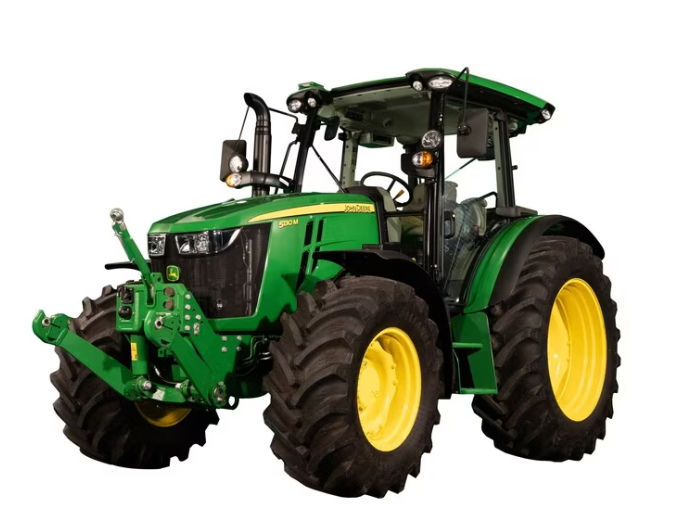

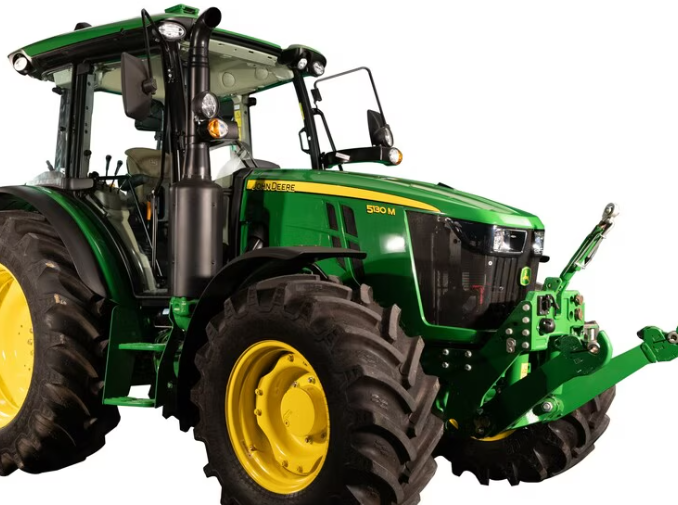

John Deere 5130M – Agricultural Tractor by John Deere
Specifications
|
Specification |
Details |
|
Tractor Model |
5130M |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
4.5L, 4 Cylinders, 130 HP, 2200 RPM, Trem-V HPCR, PowerTech™ Plus |
|
Clutch |
Dual clutch |
|
Transmission Type |
Powr8 EcoShift |
|
Number of Gears |
32 Forward + 16 Reverse with Creeper (16F+8R) |
|
Speeds |
0.45 - 2.36 km/h (Creeper), 40 km/h EcoShift at 1750 RPM |
|
Mechanical Front-Wheel Drive (MFWD) Axle |
Limited-slip, heavy-duty |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Hydraulic wet disc brakes |
|
Steering Type |
Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
480/65R24R1 |
|
Rear Tyres |
540/65R38R1 |
Components & Features
|
Specification |
Details |
|
Maximum Lifting Capacity |
3700 kg |
|
Power Take Off |
119.6 HP, 540/540E/1000 RPM, 30% Torque Rise, FHFPTO |
|
Fuel Tank Capacity |
165 L |
|
Total Weight |
3964 kg |
|
Additional Features |
Fully synchronized Powr8 EcoShift Transmission, Premium Cab (Fully Adjustable Operator Controls, Air Suspension Seat), ISOBUS Ready, JDLink™, Electro-Hydraulic PTO Control, Electronic Hitch Control, 3 Rear SCVs, Hydraulic Flow 97 L/min |
