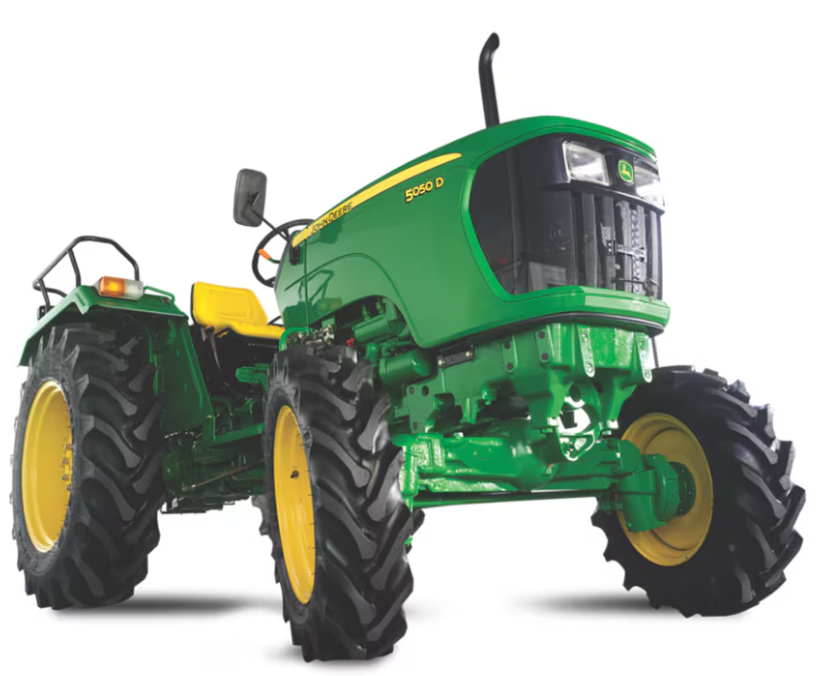

John Deere 5050D 2WD/4WD – Agricultural Tractor by John Deere
Specifications
|
Specification |
Details |
|
Tractor Model |
5050D |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
50 HP (36.5 kW), 2100 RPM, 3 Cylinders, Coolant cooled with overflow reservoir, Naturally Aspirated |
|
Air Filter |
Dry type, Dual element |
|
Clutch |
Single |
|
Transmission Type |
Collarshift |
|
Number of Gears |
8 Forward + 4 Reverse |
|
Speeds |
Forward 2.96 - 32.39 km/h, Reverse 3.89 - 14.90 km/h |
|
3 Point Linkage |
Category II, Automatic Depth & Draft Control |
|
Park Pawl |
Yes |
|
Mechanical Front-Wheel Drive (MFWD) Axle |
Limited-slip, heavy-duty (4WD only) |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Oil-immersed disc brakes |
|
Steering Type |
Power |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
7.5 x 16, 8 PR (2WD and 4WD) |
|
Rear Tyres |
14.9 x 28, 12 PR (2WD and 4WD) |
Components & Features
|
Specification |
Details |
|
Maximum Lifting Capacity |
1600 kgf at lower link ends |
|
Power Take Off |

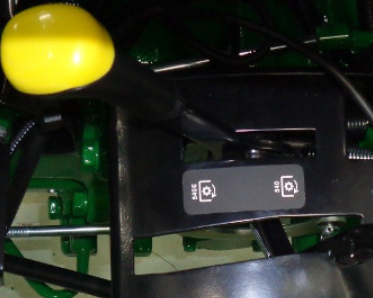

Independent, 6 Splines, 540 @ 2100 ERPM (Standard), 540 @ 1600 ERPM (Economy, Optional) |
|
Total Weight |
1870 kg |
|
Wheelbase |
1950 mm |
|
Overall Length |
3355 mm |
|
Overall Width |
1778 mm |
|
Ground Clearance |
375 mm |
|
Turning Radius with Brakes |
2900 mm |
|
Additional Features |
High backup torque, Oil-immersed disc brakes, Power steering, Straddle-mount operator station, Deluxe seat with armrest, Toolbox, Water bottle holder, Steps and handrails, Tiltable steering column, Best-in-class instrument panel, Park pawl, 4WD with HLD option, Comfortable seat with Side Shift Gear Levers, Availability of reaper speeds |
|
Optional Features |
Dual Clutch, Electrical Quick Raise and Lower (EQRL), 9F/3R Synchromesh Transmission, 12F/4R Synchromesh Transmission, Front Tyres: 6.0 x 16 (2WD), 9.5 x 20 (4WD), 8.0 x 18 (4WD), 8.3 x 24 (4WD), Rear Tyres: 16.9 x 28, 12 PR (2WD and 4WD) |
