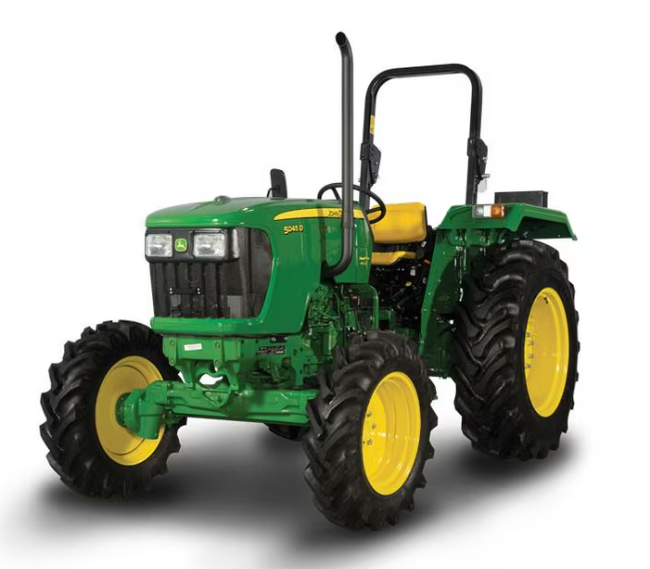

John Deere 5045D PowerPro™ GearPro™ LiftPro™ – 4WD Utility Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
John Deere 5045D PowerPro™ GearPro™ LiftPro™ 4WD |
|
Vehicle Category |
4WD Tractor |
|
Fuel Type |
Diesel |
|
Application |
4WD Utility Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Model |
John Deere 3029D |
|
Engine Type |
Coolant cooled with overflow reservoir, Naturally aspirated |
|
Number of Cylinders |
3 |
|
Engine Rated RPM |
2100 |
|
Transmission Type |
Collarshift |
|
Drive Type |
4WD |
|
Number of Gears |
12 Forward + 4 Reverse |
|
Forward Speed Range |
2.50 – 32.40 kmph |
|
Reverse Speed Range |
3.20 – 12.60 kmph |
|
Forward Range |
A, B, C |
|
Reverse Range |
R |
|
Gear Options |
1, 2, 3, 4 |
|
Final Drives |
Planetary Gear with Straight Axle |
|
Power Range |
46 HP |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed Disc Brakes |
|
Steering Type |
Hydrostatic Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
8.0 x 18 in(0.20 x 0.46 m), 8 PR |
|
Front Tyres (Optional) |
9.5 x 20in (0.20 x 0.46 m), 8 PR (Puddling Special HLD Tyres) |
|
Rear Tyres |
13.6 x 28 in(0.34 x 0.71 m), 12 PR |
|
Rear Tyres (Optional) |
14.9 x 28 in(0.38 x 0.71 m), 12 PR (Puddling Special HLD Tyres) |
|
High Lug Depth Tyres |
Yes |
Components & Features
|
Specification |
Details |
|
Hydraulics Lifting Capacity |
1600 kgf / 1800 kgf |
|
3 Point Linkage |
Category-II |
|
Hydraulic Control System |
Automatic Depth & Draft Control (ADDC) |
|
Mechanical Quick Raise and Lower |
Yes |
|
PTO Type |
Independent, 6 Splines |
|
PTO Speed Standard |
540 @ 2100 ERPM |
|
PTO Speed Economy |
540 @ 1600 ERPM |
|
Dual PTO |
Yes (Optional) |
|
Reverse PTO |
Yes (Optional) |
|
Clutch Type |
Single/Dual |
|
Fuel Tank Capacity |
60 L |
|
Battery |
88 Ah, 12 V |
|
Alternator |
40 Amp, 12 V |
|
Starter Motor |
2.5 kW, 12 V |
|
Total Weight |
1810 kg |
|
Wheel Base |
1970 mm |
|
Overall Length |
3367 mm |
|
Overall Width |
1726 mm |
|
Ground Clearance |
415 mm |
|
Turning Radius with Brakes |
2900 mm |
|
Air Cleaner Type |
Dry Type, Dual element |
|
Power Steering |
Hydrostatic |
|
Stylish Steering Wheel |
Yes |
|
Durable Rubber Floor Mat |
Yes |
|
Premium Seat |
Yes |
|
Service Interval |
500 hours |
|
High Engine Torque |
Yes |
|
Ballast Weights |
Yes |
|
Canopy |
Yes |
|
Draw Bar |
Yes |
|
Tow Hook |
Yes |
|
Wagon Hitch |
Yes |
|
Roll Over Protection Structure |
Yes (with Deluxe Seat and Seat Belt) |
|
Adjustable Front Axle |
Yes |
