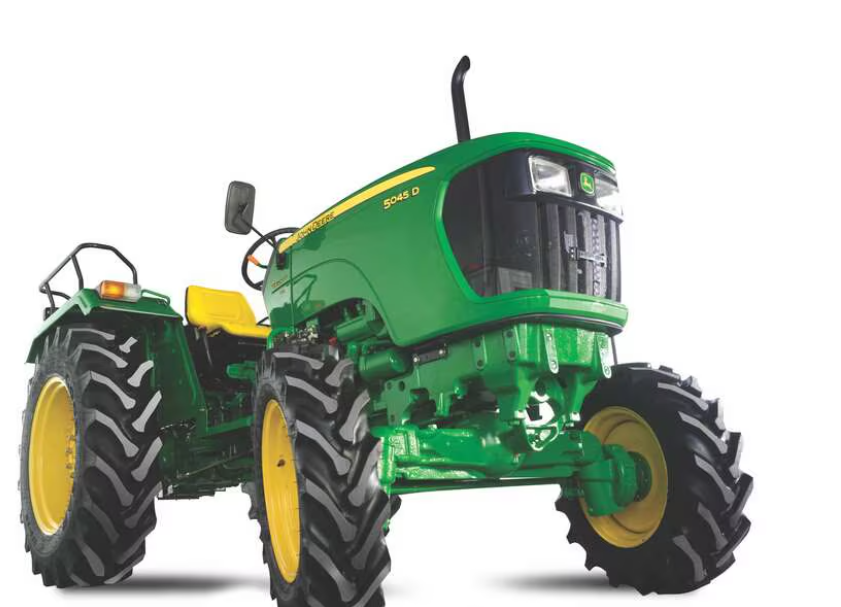

John Deere 5045D GearPro™ Puddling Special 4WD – Agricultural Tractor by John Deere
Specifications
|
Specification |
Details |
|
Tractor Model |
5045D GearPro™ Puddling Special 4WD |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
John Deere 3029D, 46 HP (34.1 kW), 2100 RPM, 3 Cylinders, Coolant cooled with overflow reservoir, Naturally aspirated |
|
Air Filter |
Dry Type, Dual element |
|
Clutch |
Single |
|
Transmission Type |
Collarshift |
|
Number of Gears |
12 Forward + 4 Reverse |
|
Speeds |
Forward 2.5 – 32.4 kmph, Reverse 3.2 - 12.6 kmph |
|
3 Point Linkage |
Category-II, Automatic depth and draft control (ADDC) |
|
Planetary Gear With Straight Axle |
Yes |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Oil immersed disc brakes |
|
Steering Type |
Power |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
8.0 x 18 in (0.20 x 0.46 m), 8 PR |
|
Rear Tyres |
13.6 x 28 in (0.34 x 0.71 m), 12 PR |
Components & Features
|
Specification |
Details |
|
Maximum Lifting Capacity |
1600 kgf |
|
Power Take Off |
Independent, 6 Splines, 540 @ 2100 ERPM (Standard), 540 @ 1600 ERPM (Economy, Optional) |
|
Fuel Tank Capacity |
60 L |
|
Electrical System |
88 Ah, 12 V Battery, 40 Amp. Alternator, 12 V, 2.5 kW Starter motor |
|
Total Weight |
2100 kg |
|
Wheelbase |
1950 mm |
|
Overall Length |
3370 mm |
|
Overall Width |
1810 mm |
|
Ground Clearance |
360 mm |
|
Turning Radius with Brakes |
2900 mm |
|
Service Interval |
500 hours |
|
Additional Features |
High engine back up torque, Stylish Power Steering, Rubber Mats, Oil Immersed Disc Brakes, Planetary Gear With Straight Axle, 4WD with HLD option, Premium seat |
|
Optional Features |
Dual Clutch, Reverse PTO, Roll over protection structure (ROPS) with deluxe seat and seat belt, Adjustable front axle, Mechanical quick raise and lower (MQRL), JDLink (Alerts, Monitoring and Tracking System), Ballast Weights, Canopy, Draw bar, Tow hook, Wagon hitch, 14.9 x 28 (0.38 x 0.71 m), 12 PR Rear Tyres |
