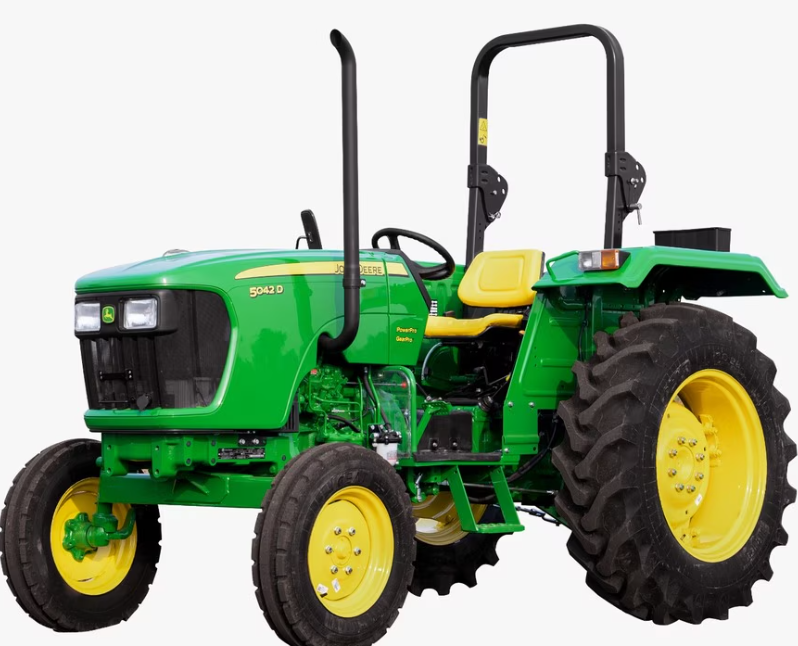

John Deere 5042D GearPro™ PowerPro™ – Agricultural Tractor by John Deere
Specifications
|
Specification |
Details |
|
Tractor Model |
5042D GearPro™ PowerPro™ |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
John Deere 3029D, 44 HP (32.3 kW), 2100 RPM, 3 Cylinders, Coolant cooled with overflow reservoir, Naturally aspirated |
|
Air Filter |
Dry Type, Dual element |
|
Clutch |
Single |
|
Transmission Type |
Collarshift |
|
Number of Gears |
12 Forward + 4 Reverse |
|
Speeds |
Forward 2.3 - 30.9 kmph, Reverse 3.12 - 12 kmph |
|
3 Point Linkage |
Category-II, Automatic depth and draft control (ADDC) |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Oil immersed disc brakes |
|
Steering Type |
Power |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
6.0 x 16in (0.15 x 0.41 m), 8 PR |
|
Rear Tyres |
13.6 x 28in (0.34 x 0.71 m), 12 PR |
Components & Features
|
Specification |
Details |
|
Maximum Lifting Capacity |
1600 kgf |
|
Power Take Off |
Independent, 6 Splines, 540 @ 2100 ERPM (Standard), 540 @ 1600 ERPM (Economy, Optional) |
|
Fuel Tank Capacity |
60 L |
|
Electrical System |
88 Ah, 12 V Battery, 40 Amp. Alternator, 12 V, 2.5 kW Starter motor |
|
Total Weight |
1810 kg |
|
Wheelbase |
1970 mm |
|
Overall Length |
3410 mm |
|
Overall Width |
1810 mm |
|
Ground Clearance |
415 mm |
|
Turning Radius with Brakes |
2900 mm |
|
Service Interval |
500 hours |
|
Additional Features |
High engine back up torque, Power steering, Oil immersed disc brakes, Premium Seat, Rubber floor Mat |
|
Optional Features |
Dual Clutch, Dual PTO, Reverse PTO, Roll over protection structure (ROPS) with deluxe seat and seat belt, Adjustable front axle, Mechanical quick raise and lower (MQRL), Ballast Weights, Canopy, Canopy holder, Draw bar, Tow hook, Wagon hitch |
