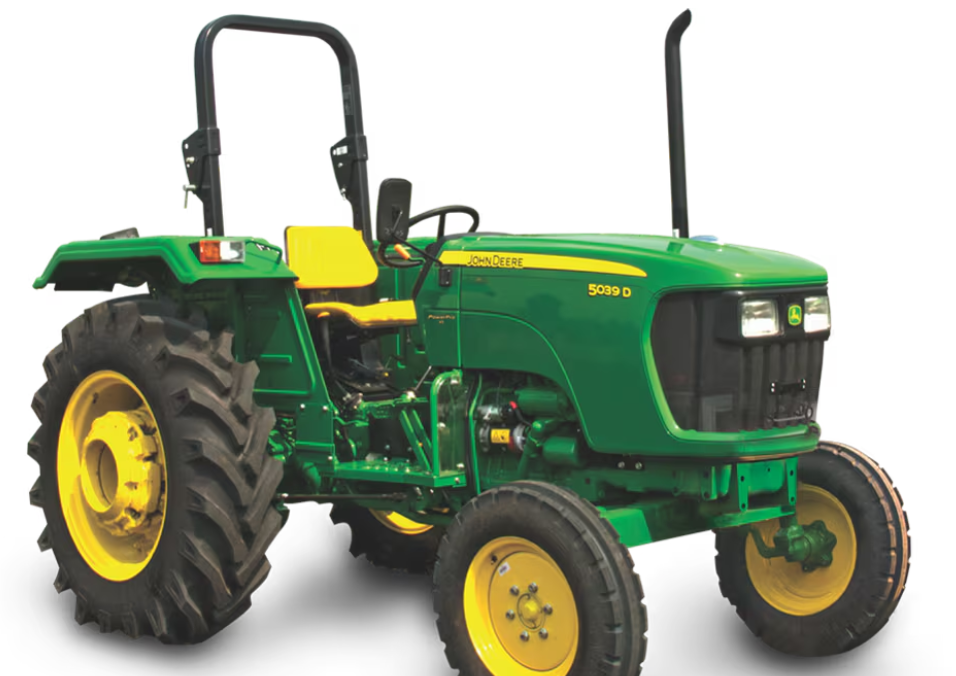

John Deere 5039D PowerPro™ – 4WD Utility Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
John Deere 5039D PowerPro™ 4WD |
|
Vehicle Category |
4WD Tractor |
|
Fuel Type |
Diesel |
|
Application |
4WD Utility Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Model |
John Deere 3029D |
|
Engine Type |
Naturally aspirated |
|
Number of Cylinders |
3 |
|
Engine Rated RPM |
2100 |
|
Transmission Type |
Collarshift |
|
Drive Type |
4WD |
|
Number of Gears |
8 Forward + 4 Reverse |
|
Forward Speed Range |
3.25 – 35.51 kmph |
|
Reverse Speed Range |
4.27 – 15.45 kmph |
|
Side Shift Gear Levers |
Yes |
|
Final Drives |
Inboard Planetary |
|
Power Range |
41 HP |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed Disc Brakes (Inboard Wet-Disc after Planetary Reduction, 545 sq cm) |
|
Steering Type |
Hydrostatic Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
6.0 x 16 in (0.15 x 0.41 m), 8 PR |
|
Rear Tyres (Optional) |
12.4 x 28 in (0.31 x 0.71 m), 12 PR |
|
Rear Tyres (Optional) |
13.6 x 28 in (0.34 x 0.71 m), 12 PR |
Components & Features
|
Specification |
Details |
|
Hydraulics Lifting Capacity |
1600 kgf |
|
3 Point Linkage |
Category-II |
|
Hydraulic Control System |
Automatic depth and draft control (ADDC) |
|
Mechanical Quick Raise and Lower |
Yes (with JD Rockshaft) |
|
PTO Type |
Independent, 6 Splines |
|
PTO Speed Standard |
540 @ 2100 ERPM |
|
PTO Speed Economy |
540 @ 1600 ERPM (Optional) |
|
Clutch Type |
Single/Dual |
|
Fuel Tank Capacity |
60 L |
|
Total Weight |
1760 kg |
|
Wheel Base |
1970 mm |
|
Overall Length |
3400 mm |
|
Overall Width |
1780 mm |
|
Ground Clearance |
390 mm |
|
Turning Radius with Brakes |
2900 mm |
|
Air Cleaner Type |
Dry Type, Dual element |
|

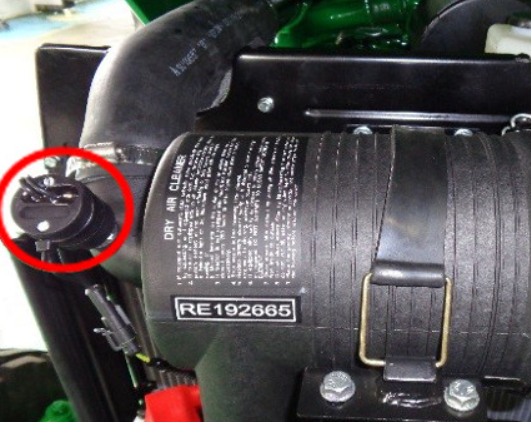

Air Restriction Indicator |
Yes |
|
Piston Spray System |
Yes |
|
Power Steering |
Hydrostatic |
|
High Engine Torque |
Yes |
