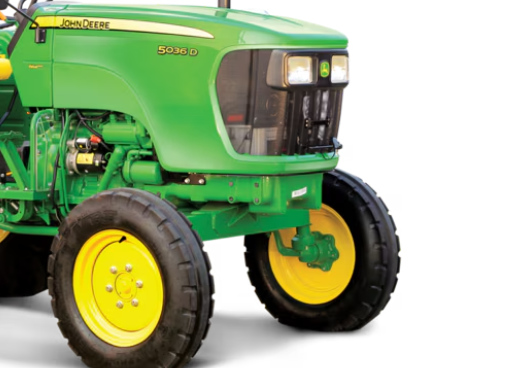

John Deere 5036D – Agricultural Tractor by John Deere
Specifications
|
Specification |
Details |
|
Tractor Model |
5036D |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
John Deere 3029D, 36 HP (26.8 kW), 2100 RPM, 3 Cylinders, Coolant cooled with overflow reservoir, Naturally aspirated |
|
Air Filter |
Dry Type, Dual element |
|
Clutch |
Single |
|
Transmission Type |
Collarshift |
|
Number of Gears |
8 Forward + 4 Reverse |
|
Speeds |
Forward 3.13 – 34.18 kmph, Reverse 4.10 - 14.87 kmph |
|
3 Point Linkage |
Category-II, Automatic depth and draft control (ADDC) |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Oil immersed disc brakes |
|
Steering Type |
Power |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
6.0 x 16 in (0.15 x 0.41 m), 8 PR |
|
Rear Tyres |
12.4 x 28 in (0.31 x 0.71 m), 12 PR |
Components & Features
|
Specification |
Details |
|
Maximum Lifting Capacity |
1600 kgf |
|
Power Take Off |
Independent, 6 Splines, 540 @ 2100 ERPM |
|
Fuel Tank Capacity |
60 L |
|
Electrical System |
88 Ah, 12 V Battery, 40 Amp. Alternator, 12 V, 2.5 kW Starter motor |
|
Total Weight |
1760 kg |
|
Wheelbase |
1970 mm |
|
Overall Length |
3400 mm |
|
Overall Width |
1780 mm |
|
Ground Clearance |
390 mm |
|
Turning Radius with Brakes |
2900 mm |
|
Additional Features |
Power Steering, Side Shift Gear Levers, Oil Immersed Disc Brakes, Dry Type Air Filter with Air Restriction Sensor, Single-piece hood opening |
|
Optional Features |
13.6 x 28 (0.34 x 0.71 m), 12 PR Rear Tyres, 1400 kgf Lifting Capacity |
