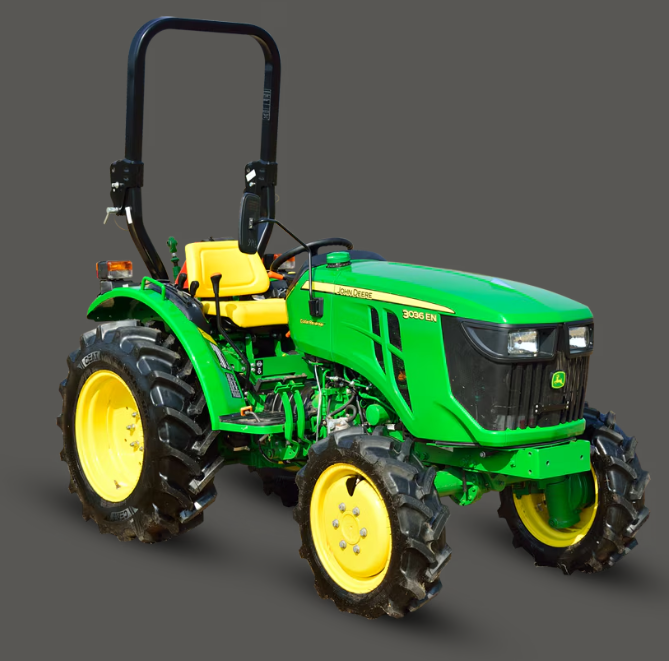

John Deere 3036EN with Wider Tires – Agricultural Tractor by John Deere
Specifications
|
Specification |
Details |
|
Tractor Model |
3036EN with Wider Tires |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
35 HP (25.9 kW), 2800 RPM, 3 Cylinders, Coolant cooled with overflow reservoir, Naturally Aspirated |
|
Air Filter |
Dry Type, Dual element |
|
Clutch |
Single |
|
Transmission Type |
FNR Sync Reverser / Collar Reverser |
|
Number of Gears |
8 Forward + 8 Reverse |
|
Speeds |
Forward 1.6 - 19.3 km/h (Rear tires 280/85 R20); Reverse 1.5 - 18.4 km/h (Rear tires 280/85 R20) |
|
Mechanical Front-Wheel Drive (MFWD) Axle |
Limited-slip, heavy-duty |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Oil immersed disc brakes |
|
Steering Type |
Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
6.0 x 16, 8 PR |
|
Rear Tyres |
280/85 R20 (Radial tubeless) |
|
Overall Width (Front Tyres) |
1235 mm |
|
Overall Width (Rear Tyres) |
1248 mm |
Components & Features
|
Specification |
Details |
|
Maximum Lifting Capacity |
910 kgf |
|
Ground Clearance |
320 mm |
|
Turning Radius |
1.63 m |
|
Additional Features |
Narrow width, Key ON/OFF Switch, Better engine power producing torque of 17-28%, Wider radial tubeless tires |
