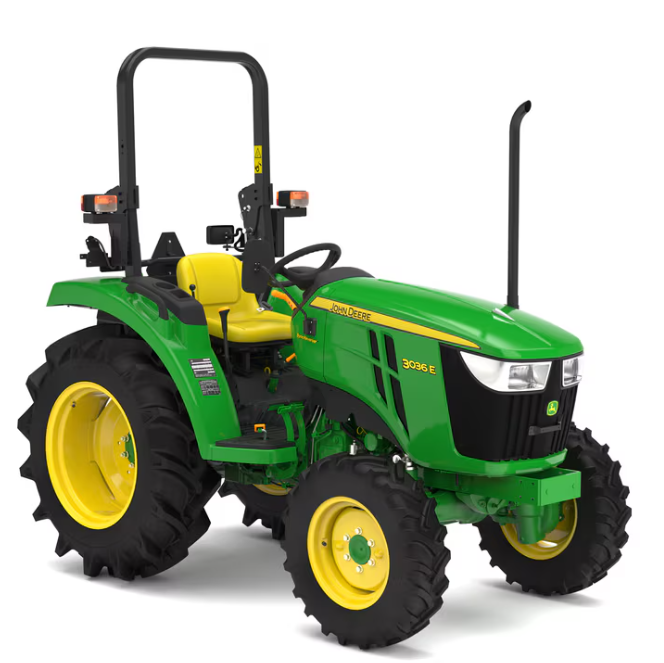

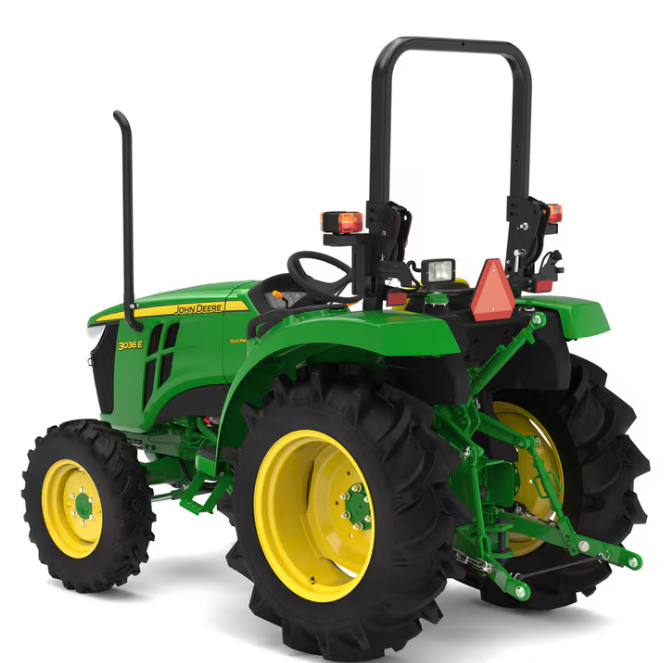

John Deere 3036E – 4WD Puddling Special Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
John Deere 3036E 4WD |
|
Vehicle Category |
4WD Tractor |
|
Fuel Type |
Diesel |
|
Application |
4WD Puddling Special Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
Coolant cooled with overflow reservoir, Naturally Aspirated |
|
Number of Cylinders |
3 |
|
Engine Rated RPM |
2800 |
|
Engine Power |
25.9 kW |
|
Transmission Type |
Sync Reverser / Collar Reverser |
|
Drive Type |
4WD (Heavy Duty Front Axle) |
|
Number of Gears |
8 Forward + 8 Reverse |
|
Forward Speed Range |
1.90 – 22.70 km/h |
|
Reverse Speed Range |
1.70 – 23.70 km/h |
|
Power Range |
35 HP |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed Disc Brakes |
|
Steering Type |
Power Steering |
Components & Features
|
Specification |
Details |
|
Selective Control Valve |
Yes |
|
PTO Type |
Dual PTO |
|
Clutch Type |
Single |
|
Turning Radius with Brakes |
2.6 m |
|
Turning Radius without Brakes |
2.8 m |
|
Air Cleaner Type |
Dry Type, Dual element |
|
Key ON/OFF Switch |
Yes |
|
ROPS |
Yes (Optional) |
|
Seat Belt |
Yes (Optional) |
|
Side Shift Control Levers |
Yes |
