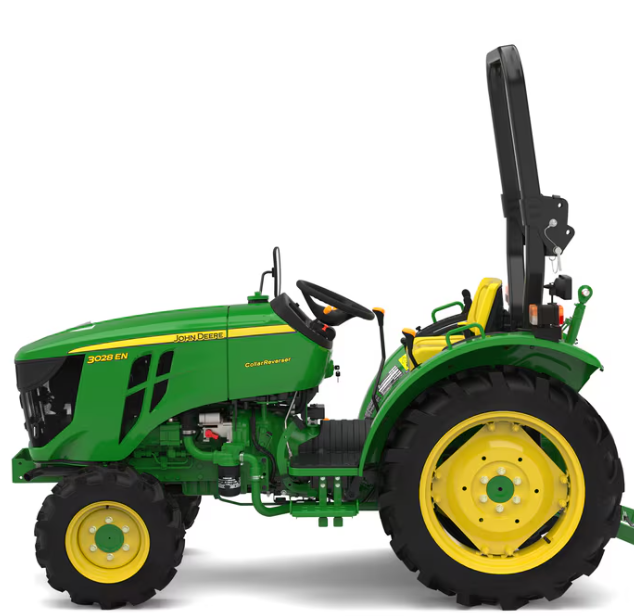

John Deere 3028EN – 4WD Mini Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
John Deere 3028EN 4WD |
|
Vehicle Category |
4WD Tractor |
|
Fuel Type |
Diesel |
|
Application |
4WD Mini Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
Coolant cooled with overflow reservoir, Naturally Aspirated |
|
Number of Cylinders |
3 |
|
Engine Rated RPM |
2800 |
|
Backup Torque |
14-24% |
|
Transmission Type |
FNR Sync Reverser / Collar Reverser |
|
Drive Type |
4WD (MFWD) |
|
Number of Gears |
8 Forward + 8 Reverse |
|
Forward Speed Range (8.3x24) |
1.6 – 19.5 km/h |
|
Forward Speed Range (9.5x24) |
1.7 – 20.7 km/h |
|
Reverse Speed Range (8.3x24) |
1.5 – 18.6 km/h |
|
Reverse Speed Range (9.5x24) |
1.6 – 19.8 km/h |
|
Power Range |
28 HP |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed Disc Brakes |
|
Steering Type |
Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
6.00 x 14 in |
|
Rear Tyres |
8.30 x 24 in or 9.50 x 24 in |
Components & Features
|
Specification |
Details |
|
Hydraulics Lifting Capacity |
910 kgf |
|
PTO Type |
Independent, 6 Splines |
|
PTO Speed Standard |
540 @ 2490 RPM |
|
PTO Speed Economy |
540 @ 1925 RPM |
|
Clutch Type |
Single |
|
Fuel Tank Capacity |
32 L |
|
Total Weight |
1070 kg |
|
Wheel Base |
1574 mm |
|
Overall Length |
2520 mm |
|
Ground Clearance |
285 mm |
|
Turning Radius |
2300 mm |
|
Air Cleaner Type |
Dry Type, Dual element |
|
Key ON/OFF Switch |
Yes |
|
Sync Reverser |
Yes |
|
Finger Guard |
Yes |
|
PTO NSS |
Yes |
|
Underhood with Updraft Exhaust Muffler |
Yes |
|
Water Separator |
Yes |
|
Digital Hour Meter |
Yes |
|
Radiator Screen |
Yes |
|
Metal Face Seals for Front and Rear Axle |
Yes |
|
ROPS |
Yes |
|
Seat Belt |
Yes |
