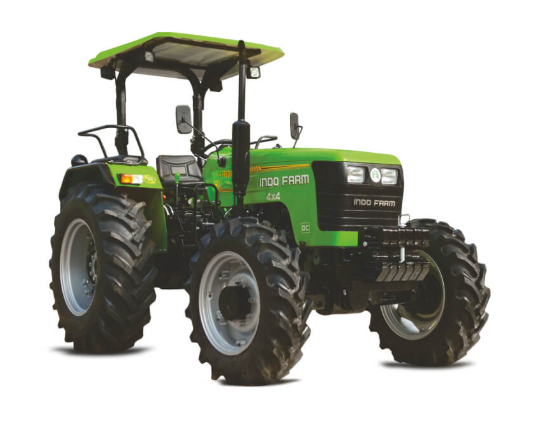

Indo Farm 4195 DI 2WD/4WD – Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Indo Farm 4195 DI 2WD/4WD |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Rotavator, Cultivator, Spraying, Haulage, Sowing, Reaper, Threshing; Crops: Corn, Grapes, Groundnut, Cotton, Castor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
4-cylinder, Diesel, Four Stroke Direct Injection |
|
Number of Cylinders |
4 |
|
Engine Rated RPM |
2200 |
|
Engine Power |
95 HP |
|
Transmission Type |
Synchromesh with Carraro Transmission |
|
Drive Type |
2WD/4WD |
|
Number of Gears |
12 Forward + 12 Reverse |
|
Forward Speed Range |
1.60–33.86 km/h |
|
Reverse Speed Range |
1.34–27.64 km/h |
|
Power Range |
95 HP |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed Multi-Disc Brakes |
|
Actuation |
Mechanical, Independent Right/Left or Combined |
|
Parking Brake |
Independent Through Hand Lever, Locking Brake Pedals |
|
Steering Type |
Hydrostatic Power Steering |
|
Minimum Turning Radius |
4.0 m (2WD); 5.0 m (4WD) |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyre Size (2WD) |
7.5 x 16 inches |
|
Rear Tyre Size (2WD) |
16.9 x 30 inches |
|
Front Tyre Size (4WD) |
11.2 x 24 inches |
|
Rear Tyre Size (4WD) |
18.4 x 30 inches |
Components & Features
|
Specification |
Details |
|
Hydraulic Control System |
Multipurpose Selective DC Valve with ADDC |
|
Hydraulic Pump |
Gear Type |
|
Lifting Capacity |
2600 kg |
|
PTO Type |
6 Spline |
|
PTO Speed |
540 & 1000 RPM |
|
PTO Power |
81.7 HP |
|

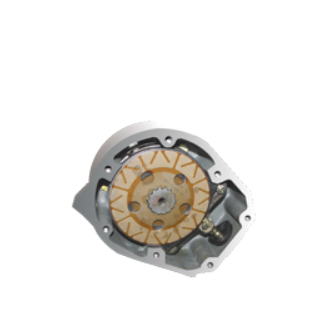

Clutch Type |
Double, Cerametallic Disc |
|
Engine Displacement |
4088 cc |
|
Bore/Stroke |
105/118 mm |
|
Cooling System |
Water-Cooled |
|
Air Cleaner |
Dry Type |
|
Fuel Pump |
Inline, Bosch India |
|
Fuel Tank Capacity |
60 litres |
|
Weight (2WD) |
2660 kg |
|
Weight (4WD) |
2960 kg |
|
Length (2WD) |
3900 mm |
|
Length (4WD) |
3990 mm |
|
Width (2WD) |
1925 mm |
|
Width (4WD) |
1990 mm |
|
Height (2WD) |
1790 mm (up to steering) |
|
Height (4WD) |
1845 mm (up to steering) |
|
Ground Clearance (2WD) |
410 mm |
|
Ground Clearance (4WD) |
410 mm |
|
Wheelbase |
2270 mm |
|
Warranty |
2 Years |
|
Battery |
12 Volts, 88 Ah |
|
Alternator |
42A |
|
Self Starter Motor |
Yes |
|
Driver’s Seat |
Adjustable |
|
Oil Immersed Brakes |
Yes |
|
Aerodynamic Design |
Yes |
|
Synchromesh Gear Box with 12+12 Speeds Carraro Transmission |
Yes |
|
Foldable ROPS with Canopy |
Yes |
|
Heavy 2600 kg Lift |
Yes |
|
Dual PTO Speed |
Yes |
|
Multipurpose Selective DCV |
Yes |
|
USB Mobile Charging |
Yes |
|
Tool Box |
Yes |
|
Trailer Hook |
Yes |
|
Drawbar |
Yes |
|
Fender Guard |
Yes |
|
Heavy Bumper |
Yes |
|
Operator Manual |
Yes |
|
ADDC Hydraulic System |
Yes |
|
Neutral Safety Switch |
Yes |
|
Digital Instrument Cluster |
Yes |
|
Wheel Track (2WD) |
1425–1510 mm |
|
Wheel Track (4WD) |
1585–1510 mm |
