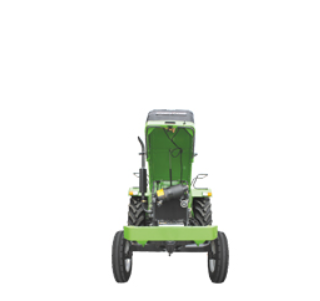

Indo Farm 4110 DI – Agricultural Tractor by Indo Farm
Specifications
|
Specification |
Details |
|
Tractor Model |
4110 DI |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
Four Stroke Direct Injection, Diesel Engine |
|
Engine Power |
110 HP |
|
Number of Cylinders |
Four |
|
Bore/Stroke |
105/118 mm |
|
Rated RPM |
2200 RPM |
|
Air Cleaner |
Dry Type |
|
Fuel Pump |
Inline, Make: Bosch India |
|
Cooling System |
Water cooled |
|
Clutch |
Double, Main Clutch Disc Cerametallic |
|
Number of Gears |
12 Forward + 12 Reverse; 24 Forward + 24 Reverse |
|
Speed Range |
Forward: 0.8-33/0.9-38.0 km/h @ rated engine RPM; Reverse: 0.8-33/0.9-38.0 km/h @ rated engine RPM |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Wet: Oil Immersed Multiple Discs |
|
Brake Actuation |
Hydraulic Actuation |
|
Parking Brake |
Mechanical Actuation |
|
Steering Type |
Hydrostatic Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
14.9 x 24 inches (4WD) |
|
Rear Tyres |
18.4 x 34 inches (4WD) |
Components & Features
|
Specification |
Details |
|
Maximum Lifting Capacity |
2400 kg |
|
Hydraulic Pump |
Gear Type |
|
Power Take Off |
540 and 1000 RPM, 6 Splines |
|
Total Weight |
4100 kg (4WD) |
|
Electrical System |
12 Volts, 88 Ah Battery, Self Starter Motor & Alternator |
|
Minimum Turning Radius |
5.5 m (4WD) |
|
Driver’s Seat |
Adjustable with Seat Belt |
|
Additional Features |
Multipurpose Selective DCV, Aerodynamic Design, Heavy Duty Front Axle & Power Steering, Foldable ROPS with Canopy, Heavy 2400 Kgs Lift, Dual PTO Speed |
|
Wheel Track |
1585–1540 mm (4WD) |
|
Overall Length |
4200 mm (4WD) |
|
Overall Width |
2250 mm (4WD) |
|
Height (up to steering) |
2000 mm (4WD) |
|
Ground Clearance |
420 mm (4WD) |
