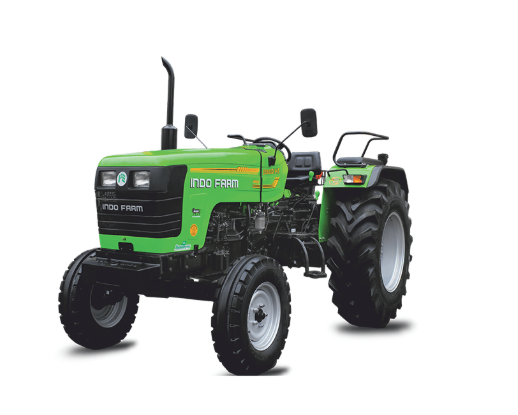

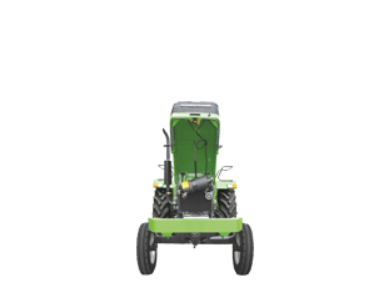

Indo Farm 3060 DI HT 2WD/4WD – Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Indo Farm 3060 DI HT 2WD/4WD |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
13-tine Tiller, 3-bottom M.B. Plough, 16-disk Harrow, 7-ton Trailer, Rotavator 48 Blades |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
4-cylinder, Diesel, Naturally Aspirated, Direct Injection |
|
Number of Cylinders |
4 |
|
Engine Rated RPM |
2000 |
|
Engine Power |
50 HP |
|
Transmission Type |
Constant Mesh |
|
Drive Type |
2WD/4WD |
|
Number of Gears |
8 Forward + 2 Reverse |
|
Forward Speed Range |
2.7–35.0 km/h |
|
Power Range |
50 HP |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed Brakes |
|
Actuation |
Mechanical, Independent Right/Left or Combined |
|
Parking Brake |
Through Hand Lever, Locking Brake Pedals |
|
Steering Type |
Hydrostatic Power Steering |
|
Minimum Turning Radius |
4.25 m (2WD); 4.5 m (4WD) |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyre Size (2WD) |
7.50 x 16 inches |
|
Rear Tyre Size (2WD) |
16.9 x 28 inches |
|
Front Tyre Size (4WD) |
9.50 x 24 inches |
|
Rear Tyre Size (4WD) |
16.9 x 28 inches |
Components & Features
|
Specification |
Details |
|
Hydraulic Control System |
Automatic Depth and Draft Control (ADDC) |
|
Hydraulic Pump |
Gear Type |
|
Lifting Capacity |
1800 kg |
|
DC Valve |
Yes |
|
PTO Type |
6 Spline |
|
PTO Speed |
540 RPM |
|
PTO Power |
52 HP |
|
Reverse PTO |
Yes |
|
Clutch Type |
Dual, Cerametallic Disc |
|
Engine Displacement |
4088 cc |
|
Bore/Stroke |
105/118 mm |
|
Torque |
215 Nm |
|
Cooling System |
Water-Cooled |
|
Air Cleaner |
Dry Type |
|
Fuel Pump |
Inline, Bosch India |
|
Fuel Tank Capacity |
55 litres |
|
Weight (2WD) |
2360 kg |
|
Weight (4WD) |
2640 kg |
|
Length (2WD) |
3880 mm |
|
Length (4WD) |
3840 mm |
|
Width (2WD) |
1940 mm |
|
Width (4WD) |
1950 mm |
|
Height (2WD) |
1680 mm (up to steering) |
|
Height (4WD) |
1710 mm (up to steering) |
|
Ground Clearance (2WD) |
420 mm |
|
Ground Clearance (4WD) |
380 mm |
|
Wheelbase |
2230 mm |
|
Warranty |
2 Years |
|
Battery |
12 Volts, 88 Ah |
|
Alternator |
42A |
|
Self Starter Motor |
Yes |
|
Driver’s Seat |
Adjustable |
|
Oil Immersed Brakes |
Yes |
|
Aerodynamic Design |
Yes |
|
Hydrostatic Power Steering |
Yes |
|
Dry Air Cleaner |
Yes |
|
Straight Rear Axle |
Yes |
|
Heavy 1800 kg Lift |
Yes |
|
8+2 Speed Gear Box |
Yes |
|
Epicyclic Reduction |
Yes |
|
Neutral Safety Switch |
Yes |
|
Digital Instrument Cluster |
Yes |
|
Wheel Track (2WD) |
1410–1490 mm |
|
Wheel Track (4WD) |
1515–1500 mm |
