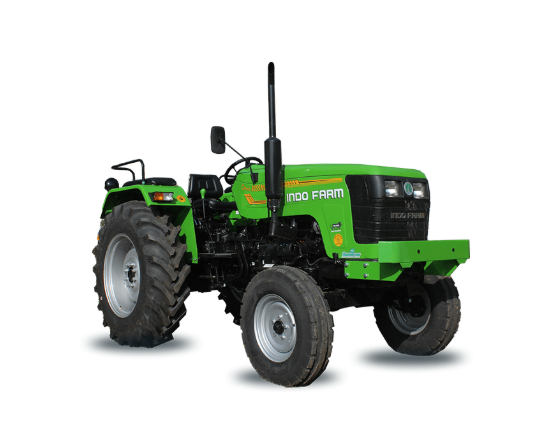

Indo Farm 3055 NV Plus – Agricultural Tractor by Indo Farm
Specifications
|
Specification |
Details |
|
Tractor Model |
3055 NV Plus |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
Diesel, Four Stroke Direct Injection |
|
Engine Power |
55 HP |
|
Number of Cylinders |
Three |
|
Bore/Stroke |
105/118 mm |
|
Rated RPM |
2200 RPM |
|
Air Cleaner |
Dry Type |
|
Fuel Pump |
Inline, Make: Bosch India |
|
Cooling System |
Water cooled |
|

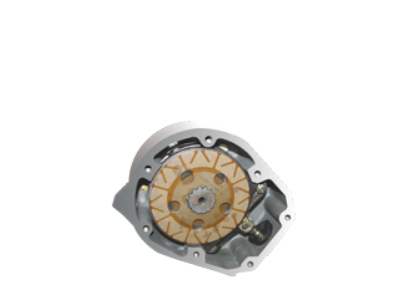

Clutch |
Dual, Main Clutch Disc Cerametallic |
|
Transmission Type |
Constant Mesh with Epicyclic Reduction |
|
Number of Gears |
8 Forward + 2 Reverse |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Oil Immersed |
|
Brake Actuation |
Mechanical, independent right/left or combined |
|
Parking Brake |
Through hand lever, by locking brake pedals |
|
Steering Type |
Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
7.50 x 16 inches (2WD), 8 x 18 inches (4WD) |
|
Rear Tyres |
14.9 x 28 inches (2WD/4WD) |
Components & Features
|
Specification |
Details |
|
Maximum Lifting Capacity |
1800 kg |
|
Hydraulic Pump |
Gear Type |
|
Power Take Off |
540 RPM, 6 Splines |
|
Total Weight |
2260 kg (2WD), 2370 kg (4WD) |
|
Electrical System |
12 Volts, 88 Ah Battery, Self Starter Motor & Alternator |
|
Minimum Turning Radius |
3.5 m (2WD), 4.0 m (4WD) |
|
Driver’s Seat |
Adjustable |
|
Additional Features |
Oil Immersed Brakes, Aerodynamic Design, Hydraulic Steering, Dry Air Cleaner, Straight Rear Axle, 8+2 Speed Gear Box, Epicyclic Reduction |
|
Wheel Track |
1355-1940 mm (2WD/4WD) |
|
Overall Length |
3700 mm (2WD), 3760 mm (4WD) |
|
Overall Width |
1850 mm (2WD/4WD) |
|
Height (up to steering) |
1680 mm (2WD/4WD) |
|
Ground Clearance |
420 mm (2WD), 370 mm (4WD) |
