Indo Farm 3040 DI 2WD – Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Indo Farm 3040 DI 2WD |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Cultivator, Rotary Tiller, Plough, Planter, Other Implements |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
3-cylinder, Diesel, Four Stroke Direct Injection |
|
Number of Cylinders |
3 |
|
Engine Rated RPM |
2100 |
|
Engine Power |
45 HP |
|
Transmission Type |
Constant Mesh |
|
Drive Type |
2WD |
|
Number of Gears |
8 Forward + 2 Reverse |
|
Forward Speed Range |
2.2–30.0 km/h |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed Brakes |
|
Actuation |
Mechanical, Double Disc Type (190 mm diameter) |
|
Parking Brake |
With Parking Brake Lever |
|
Steering Type |
Mechanical - Recirculating Ball Type (Power Steering Optional) |
|
Steering Wheel Diameter |
430 mm |
|
Minimum Turning Radius |
3.2 m |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyre Size |
6.00 x 16 inches |
|
Rear Tyre Size |
13.6 x 28 inches |
Components & Features
|
Specification |
Details |
|
Hydraulic Control System |
Automatic Depth and Draft Control (ADDC) |
|
Hydraulic Pump |
Gear Type |
|
Lifting Capacity |
1400 kg (1500 kg Optional) |
|
PTO Type |
6 Spline |
|
PTO Speed |
1000 RPM (Single Clutch); 540 RPM (Dual Clutch) |
|
PTO Power |
38.3 HP |
|
Clutch Type |
Single / Dual, Cerametallic Disc |
|
Engine Displacement |
2858 cc |
|
Bore/Stroke |
105/111 mm |
|
Compression Ratio |
19:1 |
|
Max Torque Speed |
1200-1400 RPM |
|
Cooling System |
Water-Cooled |
|

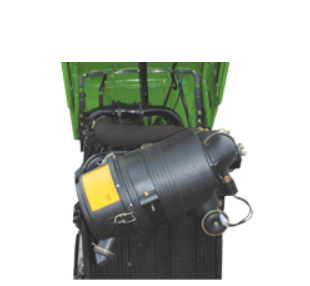

Air Cleaner |
Dry Type |
|
Fuel Pump |
Inline, Bosch India |
|
Fuel Tank Capacity |
55 litres |
|
Weight |
1990 kg |
|
Length |
3600 mm |
|
Width |
1715 mm |
|
Height |
1635 mm (up to steering) |
|
Ground Clearance |
400 mm |
|
Wheelbase |
1895 mm |
|
Warranty |
2 Years |
|
Battery |
12 Volts, 75 Ah |
|
Self Starter Motor & Alternator |
Yes |
|
Driver’s Seat |
Adjustable |
|
Oil Immersed Brakes |
Yes |
|
Aerodynamic Design |
Yes |
|
Dry Air Cleaner |
Yes |
|
Straight Rear Axle |
Yes |
|
Ball Type Steering |
Yes |
|
8+2 Speed Gear Box |
Yes |
|
Epicyclic Reduction |
Yes |
|
Wheel Track |
1355-1895 mm |
