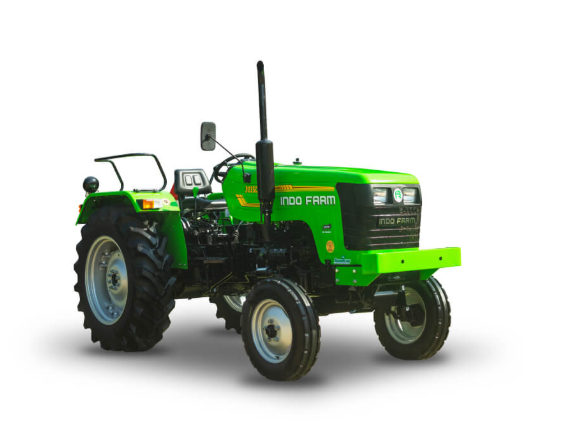

Indo Farm 3035 DI – Agricultural Tractor by Indo Farm
Specifications
|
Specification |
Details |
|
Tractor Model |
3035 DI |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
Diesel, Four Stroke Direct Injection |
|
Engine Power |
38 HP |
|
Number of Cylinders |
3 |
|
Bore/Stroke |
105/111 mm |
|
Compression Ratio |
19:1 |
|
Rated RPM |
2100 RPM |
|
Max. Torque Speed |
1200-1400 RPM |
|
Air Cleaner |
Dry Type |
|
Fuel Pump |
Inline, Make: Bosch India |
|
Cooling System |
Water cooled |
|
Clutch |
Single, Main Clutch Disc Cerametallic |
|
Transmission Type |
Constant Mesh with Epicyclic Reduction |
|

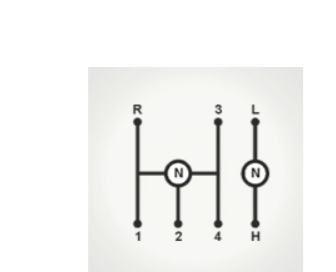

Number of Gears |
8 Forward + 2 Reverse |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Dry Double Disc (190 mm dia) with Parking Brake Lever; Oil Immersed Multiple Discs (Optional) |
|
Steering Type |
Mechanical - Recirculating ball type; Power Steering (Optional) |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
6.00 x 16 inches |
|
Rear Tyres |
12.4 x 28 inches |
Components & Features
|
Specification |
Details |
|
Maximum Lifting Capacity |
1400 kg (standard), 1500 kg (optional) |
|
Hydraulic Pump |
Gear Type |
|
Power Take Off |
1000 RPM, 6 Splines |
|
Total Weight |
1980 kg |
|
Electrical System |
12 Volts, 75 Ah Battery, Self Starter Motor & Alternator |
|
Steering Wheel Diameter |
430 mm |
|
Minimum Turning Radius |
3.2 m |
|
Driver’s Seat |
Adjustable |
|
Additional Features |
Oil Immersed Brakes (Optional), Aerodynamic Design, Dry Air Cleaner, Straight Rear Axle, Ball Type Steering, 8+2 Speed Gear Box, Epicyclic Reduction, Tow-Hook, Constant Mesh Gearbox, Suitable for Ploughing, Seed Drill, Harrow, Puddling, Haulage with Backup Torque |
|
Wheel Track |
1355-1895 mm |
|
Overall Length |
3600 mm |
|
Overall Width |
1670 mm |
|
Height (up to steering) |
1615 mm |
|
Ground Clearance |
385 mm |
