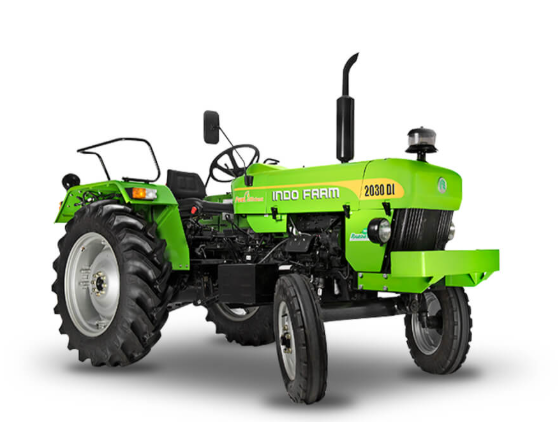

Indo Farm 2030 DI 2WD – Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Indo Farm 2030 DI 2WD |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Cotton, Sugarcane, Vineyards, Orchards, Rotary Implements |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
3-cylinder, Diesel, Four Stroke Direct Injection |
|
Number of Cylinders |
3 |
|
Engine Rated RPM |
2000 |
|
Engine Power |
34 HP |
|
Transmission Type |
Constant Mesh |
|
Drive Type |
2WD |
|
Number of Gears |
8 Forward + 2 Reverse |
|
Forward Speed Range |
2.32–28.05 km/h |
|
Power Range |
34 HP |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed Brakes |
|
Actuation |
Mechanical, Double Disc Type (190 mm diameter) |
|
Parking Brake |
With Parking Brake Lever |
|
Steering Type |
Mechanical - Recirculating Ball Type |
|
Steering Wheel Diameter |
430 mm |
|
Minimum Turning Radius |
3.0 m |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyre Size |
6.00 x 16 inches |
|
Rear Tyre Size |
12.4 x 28 inches |
Components & Features
|
Specification |
Details |
|
Hydraulic Control System |
Automatic Depth and Draft Control (ADDC) |
|
Hydraulic Pump |
Gear Type |
|
Lifting Capacity |
1400 kg |
|
PTO Type |
21 Spline |
|
PTO Speed |
1000 RPM |
|
PTO Power |
29 HP |
|
Clutch Type |
Single, Cerametallic Disc |
|
Engine Displacement |
2502 cc |
|
Bore/Stroke |
91.44/127 mm |
|
Compression Ratio |
18.5:1 |
|
Max Torque Speed |
1200-1300 RPM |
|
Cooling System |
Water-Cooled |
|
Air Cleaner |
Oil Bath Type with Cyclonic Pre-Cleaner |
|
Fuel Pump |
Inline, Bosch India |
|
Weight |
1855 kg |
|
Length |
3465 mm |
|
Width |
1670 mm |
|
Height |
1615 mm (up to steering) |
|
Ground Clearance |
380 mm |
|
Warranty |
2000 Hours or 2 Years |
|
Battery |
12 Volts, 75 Ah |
|
Self Starter Motor & Alternator |
Yes |
|
Driver’s Seat |
Adjustable |
|
Oil Immersed Brakes |
Yes |
|
High Displacement, Powerful Engine |
Yes |
|
Straight Rear Axle |
Yes |
|
Ball Type Steering |
Yes |
|
8+2 Speed Gear Box |
Yes |
|
Epicyclic Reduction |
Yes |
|
Wheel Track |
1355-1895 mm |
