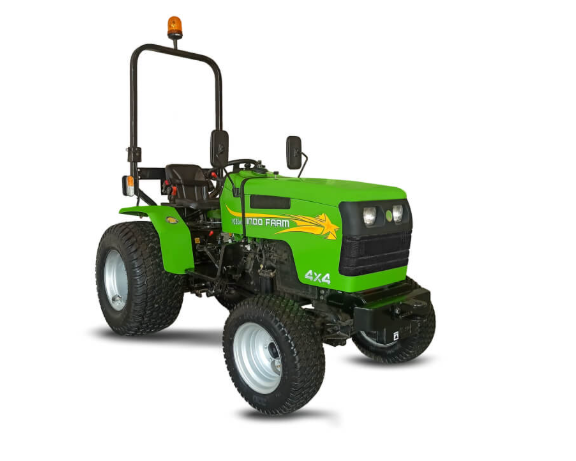

Indo Farm 1026E – Agricultural Tractor by Indo Farm
Specifications
|
Specification |
Details |
|
Tractor Model |
1026E |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
Mitsubishi Euro Stage-V Emission |
|
Engine Power |
24.75 HP |
|
Number of Cylinders |
3 |
|
Engine Displacement |
1319 CC |
|
Rated RPM |
2500 RPM |
|
Max. Torque |
76.3 Nm |
|
Air Cleaner |
Dry Air Cleaner |
|
Transmission Type |
Sliding Mesh |
|
Number of Gears |
6 Forward + 2 Reverse |
|
Differential Lock |
Yes |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Oil Immersed Brakes |
|
Steering Type |
Hydrostatic |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres (Agriculture) |
6.0 x 12 inches |
|
Rear Tyres (Agriculture) |
8.3 x 20 inches |
|
Front Tyres (Industrial) |
23 x 8.5 x 12 inches |
|
Rear Tyres (Industrial) |
33 x 15.5 x 16.5 inches |
Components & Features
|
Specification |
Details |
|
Maximum Lifting Capacity |
500 kg |
|
Hydraulic Controls |
Position and Draft Control |
|
Power Take Off |
540, 540E, 1000 RPM |
|
Total Weight (Agriculture Tyres) |
930 kg |
|
Total Weight (Industrial Tyres) |
990 kg |
|
Fuel Tank Capacity |
23 Litres |
|
Additional Features |
Three Speed PTO, Powerful & Fuel Efficient Engine, Heavy Duty Front Axle, Dry Air Cleaner, Oil Immersed Brakes, Greater Tyre Footprint for Improved Traction, Reduced Wheel Slip, Lower Fuel Consumption, Faster Ground Coverage, Turf Tyre Option, Designed for Orchard and Vineyard Applications |
|
Wheel Track Front (Agriculture) |
910 mm |
|
Wheel Track Rear (Agriculture) |
810 mm |
|
Wheel Track Front (Industrial) |
980 mm |
|
Wheel Track Rear (Industrial) |
1020 mm |
|
Wheelbase |
1520 mm |
|
Overall Length (Agriculture/Industrial) |
2740 mm |
|
Overall Width (Agriculture) |
1070 mm |
|
Overall Width (Industrial) |
1400 mm |
|
Height (up to beacon top, Agriculture) |
2520 mm |
|
Height (up to beacon top, Industrial) |
2500 mm |
