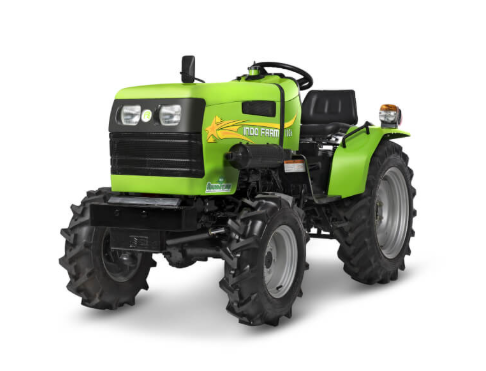

Indo Farm 1026 4WD – Mini Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Indo Farm 1026 4WD |
|
Vehicle Category |
Mini Tractor |
|
Fuel Type |
Diesel |
|
Application |
Farming, Rotary Implements |
Frame & Drivetrain
|
Specification |
Details |
|

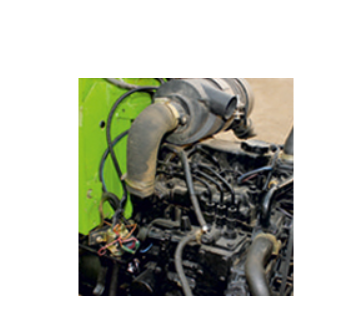

Engine Type |
3-cylinder, Diesel, Four Stroke IDI, Mitsubishi |
|
Number of Cylinders |
3 |
|
Engine Rated RPM |
2700 |
|
Engine Power |
26 HP |
|
Transmission Type |
Sliding Mesh |
|
Drive Type |
4WD |
|
Number of Gears |
6 Forward + 2 Reverse |
|
Forward Speed Range |
Up to 24.59 km/h |
|
Power Range |
26 HP |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed Brakes |
|
Actuation |
Mechanical, independent right/left or combined |
|
Parking Brake |
Through hand lever, by locking brake pedals |
|
Steering Type |
Power Steering |
|
Steering Wheel Diameter |
380 mm |
|
Minimum Turning Radius |
2.2 m |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyre Size |
6.00 x 12 inches, 5.00 x 12 inches |
|
Rear Tyre Size |
8.3 x 20 inches, 8.0 x 18 inches |
Components & Features
|
Specification |
Details |
|
Hydraulic Control System |
Position and Draft Control |
|
Hydraulic Pump |
Gear Type |
|
Lifting Capacity |
500 kg |
|
PTO Type |
Multi Speed, 6 Spline |
|
PTO Speed |
630/930/1605 RPM |
|
PTO Power |
21.8 HP |
|
Clutch Type |
Single |
|
Engine Displacement |
1318 cc |
|
Bore/Stroke |
78/92 mm |
|
Compression Ratio |
22:1 |
|
Max Torque Speed |
2000 RPM |
|
Cooling System |
Water-Cooled |
|
Air Cleaner |
Dry Type |
|
Fuel Pump |
Inline, Denso Japan |
|
Fuel Tank Capacity |
30 liters |
|
Weight |
844 kg |
|
Length |
2680 mm |
|
Width |
1050 mm |
|
Height |
1260 mm (up to steering) |
|
Ground Clearance |
210 mm |
|
Warranty |
2000 Hours or 2 Years |
|
Battery |
12 Volts, 75 Ah |
|
Self Starter Motor & Alternator |
Yes |
|
Driver’s Seat |
Adjustable |
|
Three Speed PTO |
Yes |
|
Powerful & Fuel Efficient Engine |
Yes |
|
Heavy Duty Front Axle |
Yes |
|
Dry Air Cleaner |
Yes |
|
Wheel Track |
Front: 820 mm, Rear: 830 mm |
