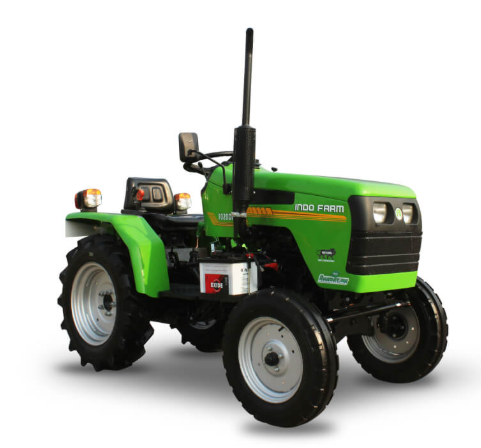

Indo Farm 1020 DI – Agricultural Tractor by Indo Farm
Specifications
|
Specification |
Details |
|
Tractor Model |
1020 DI |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
Diesel, Four Stroke DI Engine |
|
Engine Make |
Field Marshal |
|
Engine Power |
20 HP |
|
Number of Cylinders |
1 |
|
Bore/Stroke |
100/114 mm |
|
Rated RPM |
2300 RPM |
|
Max. Torque Speed |
1200 + 1400 RPM |
|
Cooling System |
Water cooled |
|
Air Cleaner |
Oil Bath Type |
|
Clutch |
Single Clutch |
|
Number of Gears |
6 Forward + 2 Reverse |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |

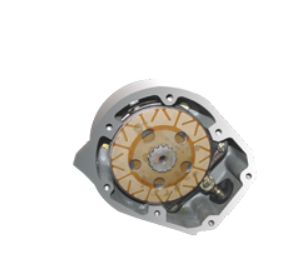

Oil Immersed Multiple Discs |
|
Brake Actuation |
Mechanical, independent right/left or combined |
|
Parking Brake |
Through hand lever, by locking brake pedals |
|
Steering Type |
Mechanical - Recirculating ball type (optional) |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
5.20 x 14 inches |
|
Rear Tyres |
8.00 x 18 inches |
Components & Features
|
Specification |
Details |
|
Maximum Lifting Capacity |
500 kg |
|
Hydraulic Pump |
Gear Type |
|
Power Take Off |
540 RPM @ 2100 Engine RPM, 6 Splines |
|
PTO Power |
12.92 ps |
|
Total Weight |
800 kg |
|
Electrical System |
12 Volts, 65 Ah Battery, Self Starter Motor & Alternator |
|
Steering Wheel Diameter |
380 mm |
|
Minimum Turning Radius |
2.2 m |
|
Driver’s Seat |
Adjustable |
|
Additional Features |
Heavy 500 kg Lift, Oil Immersed Brakes, Fuel-Efficient Engine, Suitable for Cotton, Sugarcane, Vineyards, and Orchards |
|
Wheel Track Front |
940 mm |
|
Wheel Track Rear |
830 mm |
|
Overall Length |
2520 mm |
|
Overall Width |
1050 mm |
|
Height (up to steering) |
1240 mm |
|
Ground Clearance |
210 mm |
