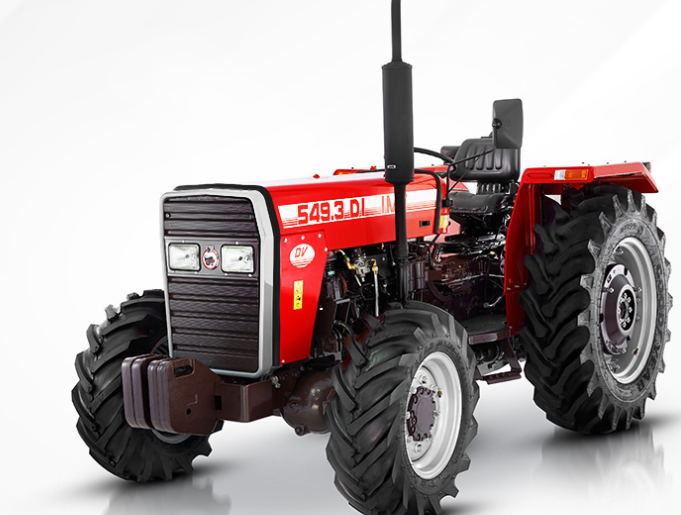

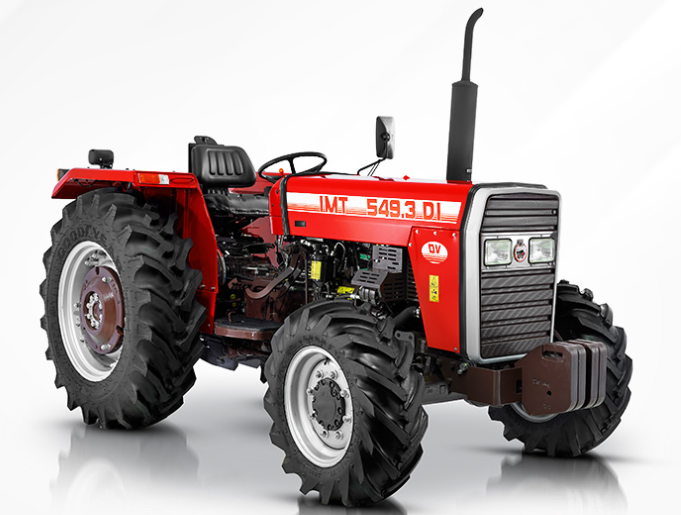

IMT 549.3 DI – 4WD Agricultural Tractor by IMT
Specifications
|
Specification |
Details |
|
Model |
IMT 549.3 DI |
|
Fuel Type |
Diesel |
|
Application |
4WD Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Power Range |
47 hp |
|
Drive |
4WD |
|
Clutch Type |
Dual |
|
Transmission Type |
Sliding Mesh |
|
Number of Speeds |
8 Forward + 2 Reverse |
|
Final Reduction |
Direct Drive |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed |
|
Steering Type |
Hydrostatic |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
10.5/80 x 18 in |
|
Rear Tyres |
13.6 x 28 in |
Components & Features
|
Feature |
Details |
|
PTO Type |
Single Speed |
|
PTO Speed |
540 RPM |
|
Hydraulics Lifting Capacity |
1700 kgf |
|
Three-point Linkage and Controls |
Oil immersed hydraulics |
|
Swinging Drawbar |
Yes |
|
Front Weight |
4 x 25 kg |
|
Rear Weight |
2 x 35 kg |
|
Spool Valve |
Double |
|
Compressor |
Yes |
