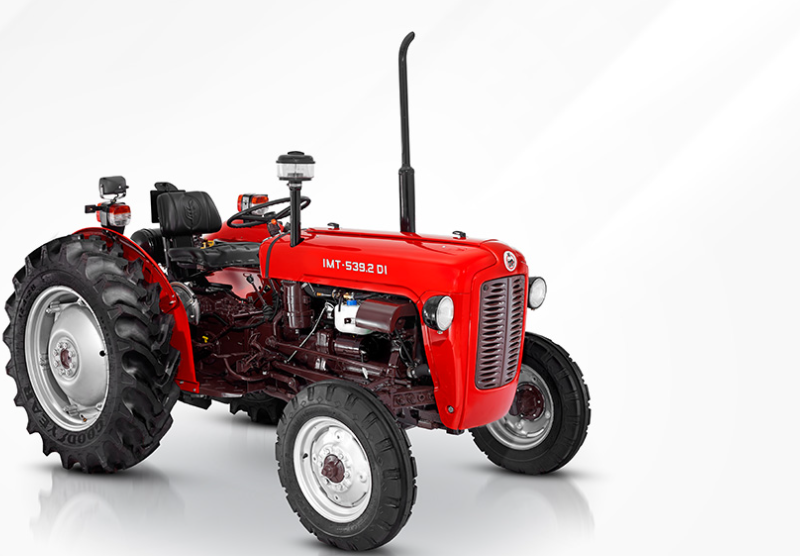

IMT 539.2 DI – 2WD Agricultural Tractor by TAFE
Specifications
|
Specification |
Details |
|
Tractor Model |
IMT 539.2 DI |
|
Vehicle Category |
2WD Tractor |
|
Fuel Type |
Diesel |
|
Application |
2WD Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Make / Type |
47 hp, EUII |
|
Exhaust |
Vertical |
|
Air Cleaner |
Wet |
|
Clutch |
Dual |
|
Transmission |
Sliding Mesh, Centre shift |
|
Drive |
2WD |
|
Number of Speeds |
8 Forward + 2 Reverse |
|
Final Reduction |
Direct drive |
|
Power Range |
47 hp |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Drum |
|
Steering Type |
Manual |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
6.00 x 16 in |
|
Rear Tyres |
12.4 x 28 in |
Components & Features
|
Specification |
Details |
|
PTO |
Single Speed, 540 rpm |
|
Hydraulics Lifting Capacity |
1100 kg |
|
Three-point Linkage and Controls |
Draft, position and response control |
|
Oil Pipe Kit |
Yes |
|
Compressor |
Yes |
|
Accessories |
Swinging drawbar, Optional ROPS |
