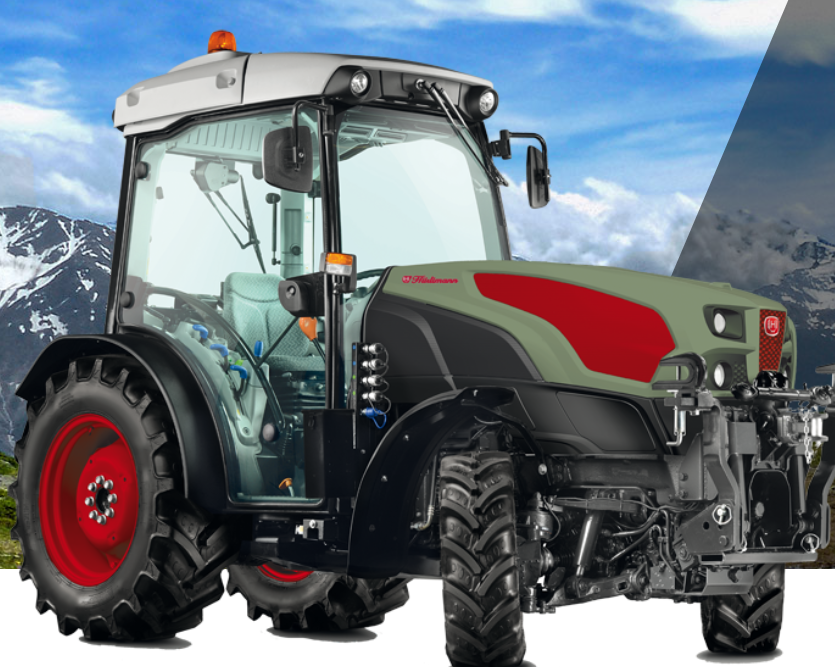

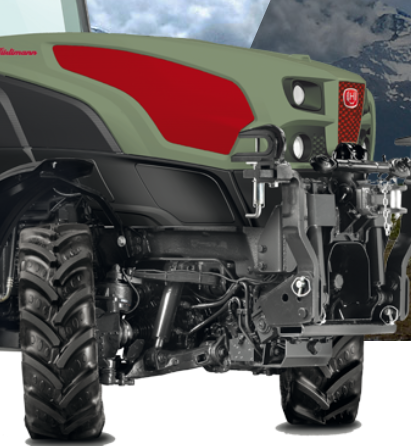

Hürlimann XS/XV Series 115 – 4WD Specialized Tractor for Orchards and Vineyards
Specifications
|
Specification |
Details |
|
Tractor Model |
Hürlimann XS/XV Series 115 (4WD) |
|
Vehicle Category |
Specialized Tractor |
|
Fuel Type |
Diesel |
|
Application |
Fruit Plantations, Vineyards, Tree Nurseries, Fields |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
FARMotion, Common rail direct injection (7-hole injectors, 2000 bar), Turbo intercooler, External EGR, DOC catalytic converter, 4 cylinders, 3849 cc, Stage III B |
|
Maximum Horsepower |
107 HP (79 kW) |
|
Maximum Torque |
435 Nm |
|
Transmission Type |
Mechanical, 30+15 with three ranges and creeper gear, Optional: Three-stage PowerShift (45+45), LS: Mechanical reverse shuttle, GS: Hydraulic reverse shuttle with Stop&Go and ComfortClutch |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Four-wheel braking system with oil-bath disc brakes, Automatic control of front wheel drive |
Components & Features
|
Specification |
Details |
|
PTO Type |
Three or four speeds: 540/540ECO/1000/1000ECO, Ground speed PTO |
|
Hydraulic System |
Single or tandem pump, Up to 64 l/min, Up to three mechanical distributors with flow regulator or three mechanical with two additional duplicated distributors, Maximum hydraulic pressure 180 bar |
|
Rear Lift |
Mechanical (standard) or electronic control (EHR, optional), Maximum lifting capacity 2600 kg |
|
Wheelbase |
Short wheelbase, Steering angle up to 60° |
