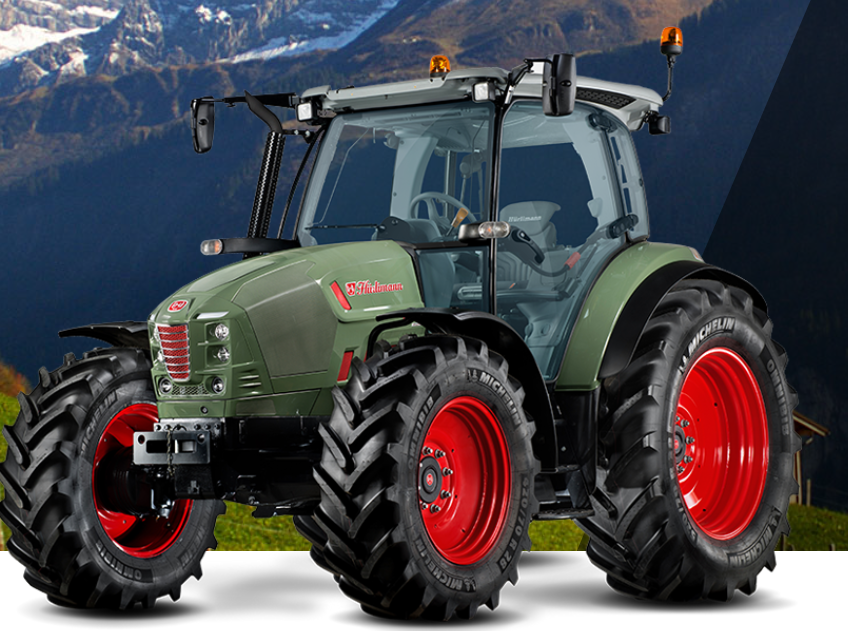

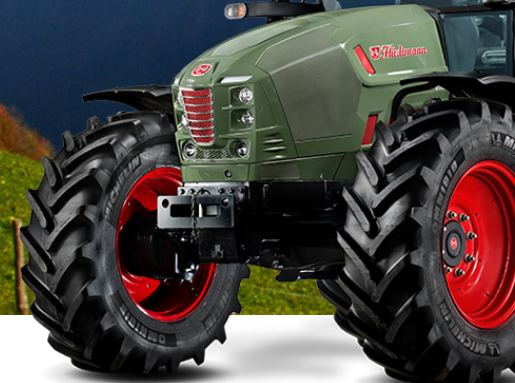

Hürlimann XM T4i V-DRIVE Series 100 – 4WD Specialized Tractor for Farming
Specifications
|
Specification |
Details |
|
Tractor Model |
Hürlimann XM T4i V-DRIVE Series 100 (4WD) |
|
Vehicle Category |
Specialized Tractor |
|
Fuel Type |
Diesel |
|
Application |
Farming, Transport Duty, Variable Terrain Conditions, Multiple Crop Types |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Deutz, Common rail injection, Turbo-intercooled, EGR and DOC catalytic converter, 4 cylinders, 3620 cc, Tier 4i |
|
Maximum Horsepower |
99 HP (72.5 kW) |
|
Maximum Torque |
397 Nm |
|
Transmission Type |
Continuously variable, 2 work ranges (0-25 km/h, 0-50 km/h), AUTO/MANUAL/PTO modes, Sense Clutch hydraulic reverse shuttle, Power Zero, Cruise Control |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Mechanical or air-sprung cab suspension |
Components & Features
|
Specification |
Details |
|
PTO Type |
Electrohydraulically operated, progressive independent multiplate wet clutch, 3 speeds: 540/540ECO/1000 |
|
Hydraulic System |
Single pump 60 l/min, Optional: 60ECO dual pumps 60 l/min at 1600 rpm or 90 l/min with Energy Saving, 6/8-way mechanical/electronic distributors, Independent steering with SDD, Maximum hydraulic pressure 180 bar |
|
Rear Lift |
Electronically controlled, Maximum lifting capacity 4650/6600 kg |
|
Weight with Cab |
4800 kg |
|
Minimum Width |
2180 mm |
