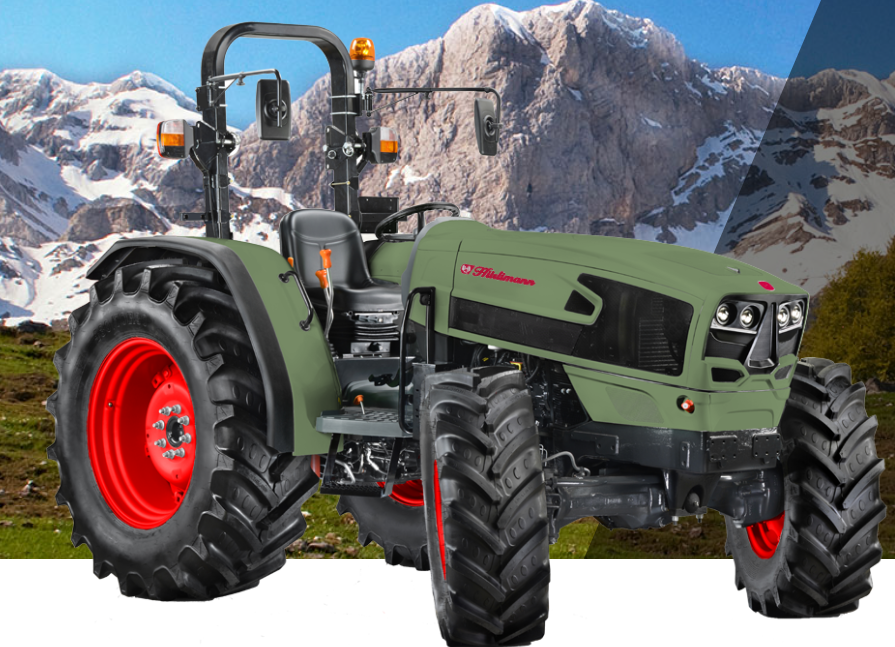

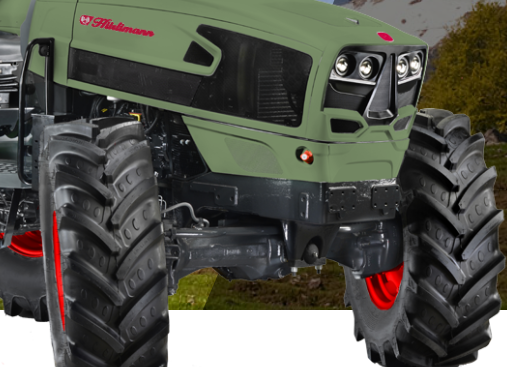

Hürlimann XE 70 – 4WD Specialized Tractor for Orchards and Vineyards
Specifications
|
Specification |
Details |
|
Tractor Model |
Hürlimann XE 70 (4WD) |
|
Vehicle Category |
Specialized Tractor |
|
Fuel Type |
Diesel |
|
Application |
Orchards, Vineyards, Rice Paddies, General Agricultural Applications |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
FARMotion, Common rail direct injection, Turbo intercooler with wastegate valve, 3 cylinders, 2887 cc, Stage III B (DOC catalytic converter), Viscous-drive fan |
|
Maximum Horsepower |
65 HP (48 kW) |
|
Maximum Torque |
292 Nm |
|
Transmission Type |
Mechanical, Variant 1: 4-speed gearbox (12+3 or 8+8 ECO, 30 km/h); Variant 2: 5-speed gearbox with 3 ranges (15+15 or 15+15 ECO, 40 km/h) |
Suspension & Brakes
|
Specification |
Details |
|
Differential Lock |
Front and rear, electrohydraulically operated (standard on 40 km/h versions) |
Components & Features
|
Specification |
Details |
|
PTO Type |
Up to three speeds: 540/540 ECO/1000 |
|
Hydraulic System |
Maximum flow rates of 42 or 50 l/min, Up to six mechanical outlets, Dedicated gear pump for hydraulic steering |
|
Rear Lift |
High-performance rear power lift, Maximum lifting capacity 2500 kg (optional 3500 kg) |
|
Steering |
Hydraulic steering with dedicated gear pump |
|
Electrical System |
Digital instrument cluster integrated in the dashboard |
|
Weight |
3000 kg (without cabin) |
|
Fuel Tank Capacity |
75 l |
