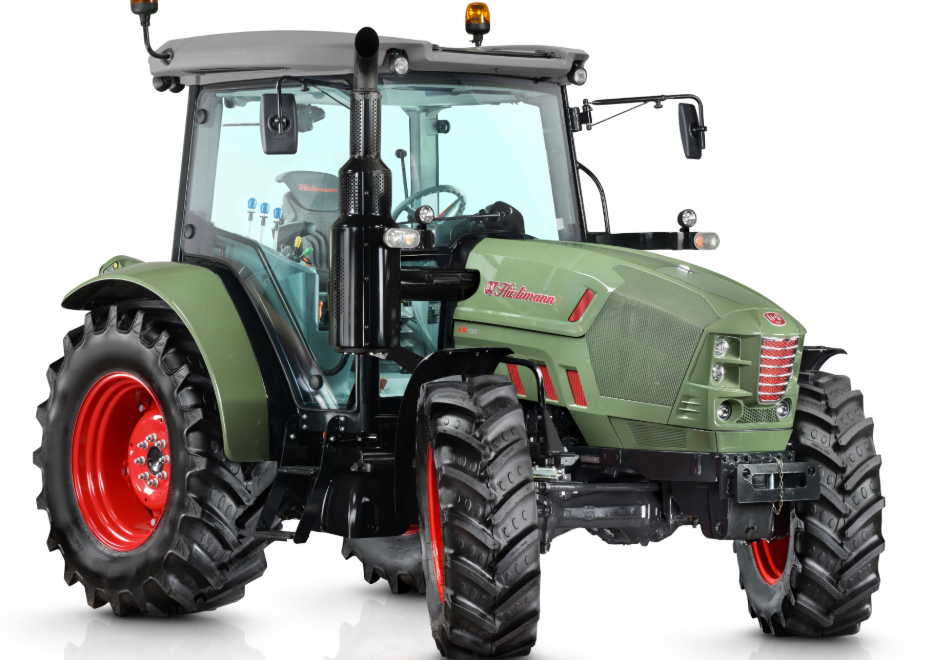

Hürlimann XB Stage IV Series 80 – 4WD Specialized Tractor for Farming
Specifications
|
Specification |
Details |
|
Tractor Model |
Hürlimann XB Stage IV Series 80 (4WD) |
|
Vehicle Category |
Specialized Tractor |
|
Fuel Type |
Diesel |
|
Application |
Farming, Livestock Farms, Farming Contractors, Minimum Processing, Sod Seeding |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
FARMotion, Common rail direct injection (2000 bar), DOC catalytic converter, 3 cylinders, 2887 cc, Stage IV |
|
Maximum Horsepower |
75 HP (55.4 kW) |
|
Maximum Torque |
342 Nm |
|
Transmission Type |
Mechanical, 4 or 5 gears, Options: 16+16 or 20+20 with creeper/supercreeper, 32+32 or 40+40 with double load switching, 30+30 or 60+60 with 5-gear and 3-stage PowerShift |
Components & Features
|
Specification |
Details |
|
PTO Type |
Four speeds: 540/540ECO/1000/1000ECO, Ground speed PTO with independent drive shaft, Optional front PTO at 1000 rpm |
|
Hydraulic System |
Single pump, 55 l/min, Optional: 60 ECO double-pump at 60 l/min from 1600 rpm, 2-3 additional electrical distributors, Maximum hydraulic pressure 180 bar |
|
Rear Lift |
Mechanical (standard) or electronic control (optional), Maximum lifting capacity 3600/4525 kg (LD/MD) |
|
Weight with Cab |
LD: 3600-3620 kg; MD: 3800-3920 kg; HD: 4220-4320 kg |
|
Minimum Width |
LD: 2037-2341 mm; MD: 2129-2273 mm; HD: 2209-2609 mm |
