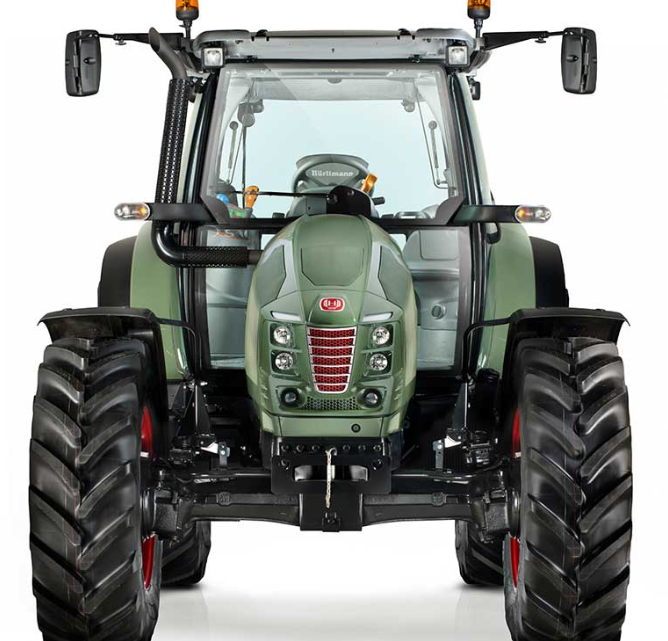

Hürlimann XM T4i 100 – 4WD Utility Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Hürlimann XM T4i 100 |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
Soil Preparation, Harvesting, Transplanting, Hay-Making, Farmyard Tasks, Road Transport |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Deutz, 4 Cylinders, 3,620 cm³, Common Rail Injection @ 1,600 bar, Turbocharged, Electronic Governor, Liquid-Cooled EGR, DOC Catalytic Converter |
|
Maximum Power |
99 HP / 72.5 kW |
|
Homologated Power |
95 HP / 69.5 kW (2000/25/EC) |
|
Maximum Torque |
397 Nm |
|
Transmission Type |
5-Speed Gearbox, 3-Stage Powershift, 2 or 4 Ranges, Hydraulic Reverse Shuttle, 30+30 or 60+60 FWD/REV, Max Speed 40 km/h at Economy Speed |
|
Fuel Tank Capacity |
160 Litres |
|
Frame |
Cab with Mechanically Sprung Suspension, High Visibility Roof |
|
Steering |
Independent Steering System with SDD (Steering Double Displacement) |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Wet Disc Brakes on All Four Wheels |
Components & Features
|
Specification |
Details |
|
PTO Type |
540, 540 ECO, 1000, 1000 ECO, Ground Speed PTO with Independent Output Shaft |
|
Hydraulic System |
60 l/min (Standard), 60 ECO (60 l/min at 1,600 RPM), or 90 l/min with Energy Saving, Mechanically and Electronically Controlled Distributors |
|
Rear Lift |
4,650–6,600 kg (Electronically Controlled) |
|
Front Lift |
Available for Combined Front/Rear Implements |
|
Driving Position |
Cab with Color-Coded Electrohydraulic Controls, Instrument Cluster, High Visibility Roof |
|
Minimum Width |
2,250 mm |
|
Weight |
4,500 kg (With Cab) |
