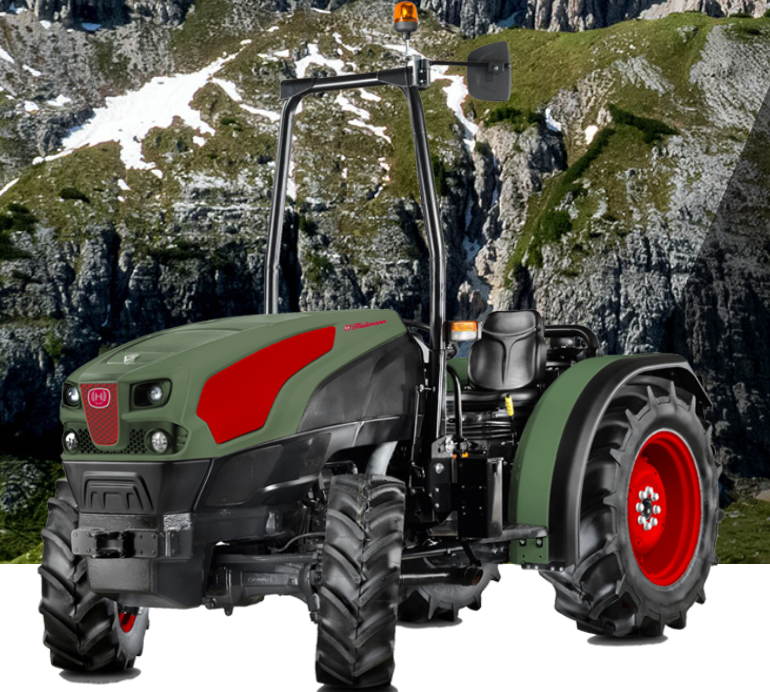

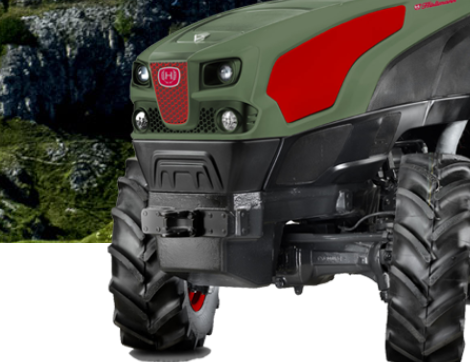

Hürlimann XF Tradition Stage III B 100 – 4WD Utility Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Hürlimann XF Tradition Stage III B 100 |
|
Vehicle Category |
Utility Tractor (Specialized) |
|
Fuel Type |
Diesel, HVO Ready |
|
Application |
Orchards, Vineyards |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
FARMotion 35, 3 Cylinders, 2,887 cm³, Common Rail with 7-Hole Nozzle, Electronically Controlled EGR, DOC Catalytic Converter, Stage III B |
|
Homologated Power |
91 HP / 67 kW (2000/25/EC) |
|
Maximum Torque |
369 Nm |
|
Transmission Type |
Mechanical, Synchronized 5-Speed, 20+10 or 30+15 with Overspeed, Synchronized Reverse Shuttle, Max Speed 40 km/h at Low RPM |
|
Steering |
Independent Steering Pump, Smooth and Jolt-Free Steering |
|
Frame |
Cab-Less Platform, Hinged Roll-Over Protection Frame, Rounded Bonnet and Mudguards |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
4-Wheel Braking, Mechanically Engaged 4WD and Differential Gears |
Components & Features
|
Specification |
Details |
|
PTO Type |
2 Speeds (540/540 ECO) or 3 Speeds (540/540 ECO/1000), Ground Speed PTO, Mechanical Engagement |
|
Hydraulic System |
45 l/min, Up to 6 Distributors |
|
Rear Lift |
2,600 kg |
|
Driving Position |
Wide Operator Seat, Gear Levers on Right, Suspended Pedals, Adjustable Steering Wheel, Hinged Roll-Over Protection Frame |
|
Minimum Width |
1,597 mm |
|
Weight |
2,630 kg |
