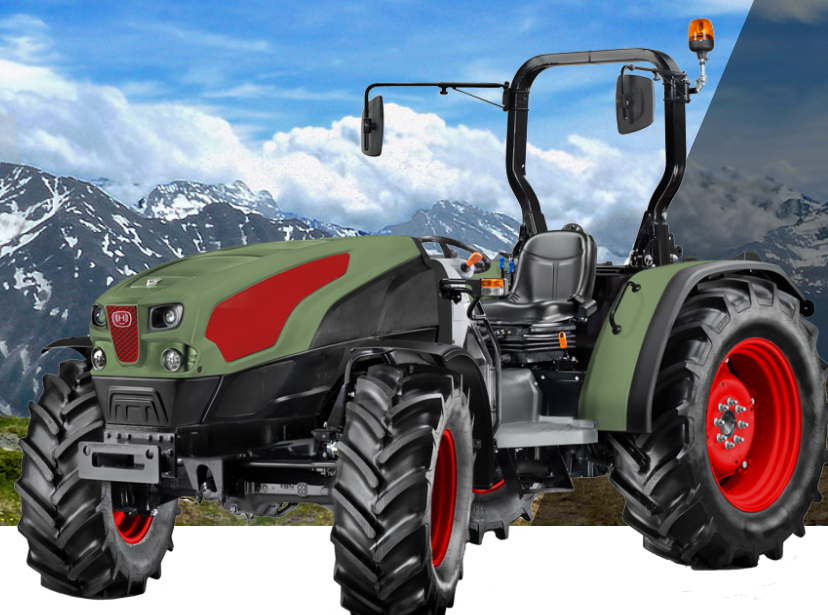

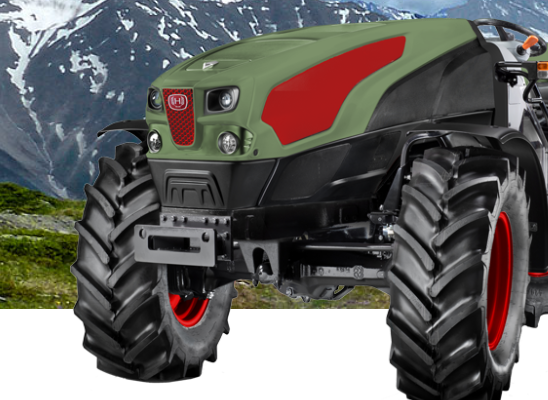

Hürlimann XB TB Stage III B 115 – 4WD Utility Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Hürlimann XB TB Stage III B 115 |
|
Vehicle Category |
Utility Tractor (Specialized) |
|
Fuel Type |
Diesel, HVO Ready |
|
Application |
Olive Groves, Fruit Plantations, Tunnel Greenhouses, Hilly and Mountainous Terrain |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
FARMotion 45, 4 Cylinders, 3,849 cm³, Common Rail @ 2,000 bar, Turbocharger with Intercooler and Wastegate, DOC Catalytic Converter, EGR, Stage III B |
|
Maximum Power |
113 HP / 83 kW |
|
Homologated Power |
107 HP / 79 kW (2000/25/EC) |
|
Transmission Type |
Mechanical (10+10, Optional 20+20 with PowerShift or 40+40 with Supercreeper and PowerShift), Optional Hydraulic Reverse Shuttle with Stop&Go and ComfortClutch, Max Speed 40 km/h at <2,000 RPM, Dust/Water-Resistant Seals |
|
Frame |
Cab-Less Platform, Silent Block Floor Mounts, Two-Pillar Hinged Rear Frame or Front Frame with Retractable Spars |
|
Steering |
35 l/min Dedicated Steering Pump with SDD (Doubles Steering Speed at Low Speeds) |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
24” to 30” Rear Axle |
Components & Features
|
Specification |
Details |
|
PTO Type |
540, 540 ECO, 1000, 1000 ECO, Ground Speed PTO with Dedicated Shaft, Modulated Electro-Hydraulic Engagement |
|
Hydraulic System |
Open-Centre, 55 l/min Pump, 4 to 6 Rear Outlets, Mechanical Distributor |
|
Rear Lift |
3,600 kg (Standard), 4,525 kg (Optional) |
|
Front Lift |
2,100 kg (Optional) |
|
Front PTO |
Available (Optional) |
|
Driving Position |
Operator Seat, Hürlimann Color-Coded Controls, Digital-Analogue Display |
|
Weight |
3,500 kg (Without Cabin) |
