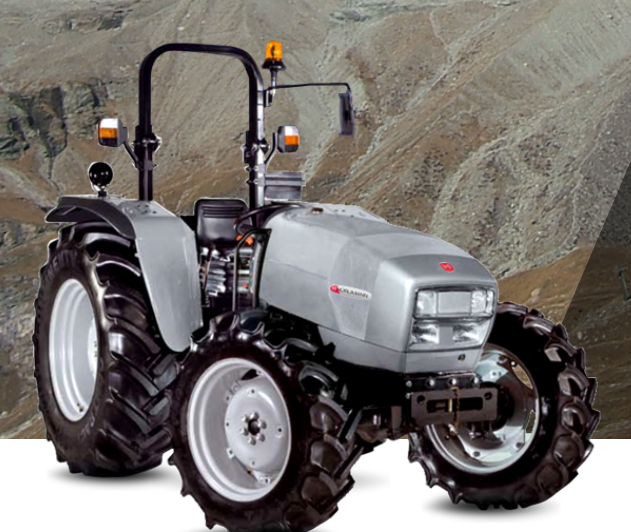

Hürlimann JOKER 75 – 4WD Utility Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Hürlimann JOKER 75 |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
Hay-Making, Livestock Management, Primary Tillage |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
SDF Series 1000, 3 Cylinders, 3,000 cm³, Turbo Intercooler, Hydraulic Tappets (HRT), 1,400 bar Injection, Euro III |
|
Maximum Power |
72 HP / 54 kW |
|
Homologated Power |
69 HP / 51.5 kW (2000/25/EC) |
|
Maximum Torque |
265 Nm |
|
Transmission Type |
Mechanical, Synchromesh, 12+3 FWD/REV, Mechanical Reverse Shuttle, Max Speed 30 km/h |
|
Fuel Tank Capacity |
70 Litres |
|
Frame |
Platform with Under-Platform Exhaust |
|
Steering |
Hydrostatic Steering with Independent Pump |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Hydraulic Wet Disc Brakes on All Four Wheels |
Components & Features
|
Specification |
Details |
|
PTO Type |
540/540ECO RPM |
|
Hydraulic System |
33 l/min Pump, 2 or 4 Way Auxiliary Distributors |
|
Rear Lift |
3,000 kg (Position, Draft, Floating, Mixed Control) |
|
Driving Position |
Platform with Suspended Pedals, Ergonomic Lever Layout, Instrument Cluster |
|
Minimum Width |
1,985 mm |
|
Weight |
2,420–2,900 kg (With Cab) |
