2025 Haro Steel Reserve 3 – Dirt Jumper Bike

Images:

1

2

3

4

5

Specifications

Specification	Details
Model	Steel Reserve 3
Vehicle Category	Dirt Jumper Bike
Application	Dirt jumping
Starting Price (2025)	$1,999.99
Color Options	Matte Black, Atlantic Blue
Sizes	One size (26" wheels)

Frame & Drivetrain

Specification	Details

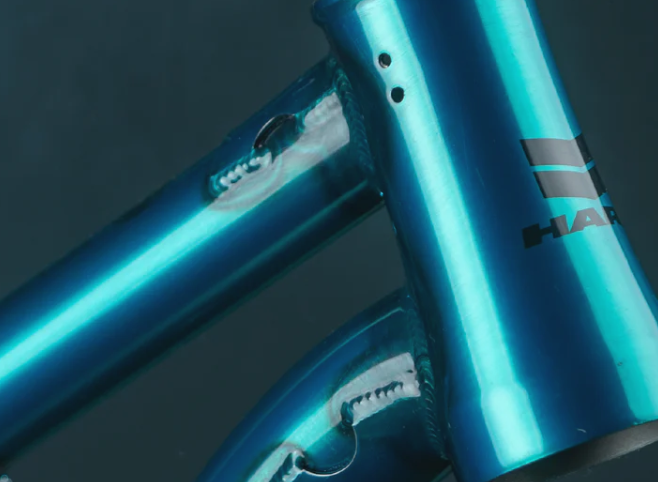

Frame	100% chromoly, integrated head tube, Euro BB shell, investment cast BB yoke, investment cast dropouts with chain tensioners
Fork	Marzocchi Bomber DJ, adjustable damper, alloy tapered steerer, 1-1/8" to 1.5", 100mm travel
Crank	Baseline 48-spline, 19mm chromoly spindle, 165mm
Chain	Baseline half-link
Bottom Bracket	Double row sealed bearing Euro BB

Components & Features

Specification	Details
Seating	Haro DJ Mid Pivotal
Wheels/Tyres	Alloy double-wall, 26", 36H, Kenda Booster SRC 26 x 2.4" front, Kenda 360 SRC 26 x 2.25" rear
Wheel Size	26"
Brakes	Tektro Gemini SL 4-piston hydraulic disc, 160mm rotor
Brake Levers	Tektro Gemini SL
Handlebar	Pro Taper, 31.8mm clamp, 50mm rise
Stem	FSA Gradient, 31.8mm clamp
Headset	FSA 45° x 45° ACB sealed, 1-1/8" to 1.5"
Saddle	Haro DJ Mid Pivotal
Seatpost	27.2mm alloy Pivotal
Grips	Haro Cliq lock-on
Front Hub	CNC Alloy, sealed bearing, 20mm thru axle, 36H
Rear Hub	CNC Alloy, 4 sealed bearings, fully sealed 6-pawl driver, 3/8" female bolts, 36H
Rims	Alloy double-wall, 26", 36H, 36mm inner width
Pedals	Alloy with replaceable pins
Exterior Features	Investment cast dropouts with chain tensioners

* All the images are screenshots!
* Data has been taken from official website (Publicly Available)!
