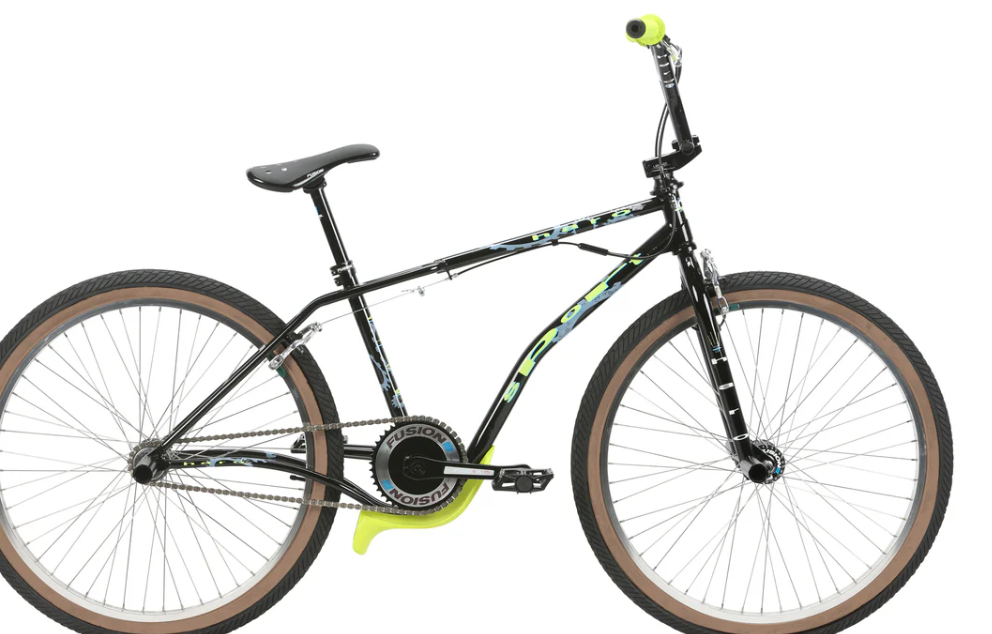

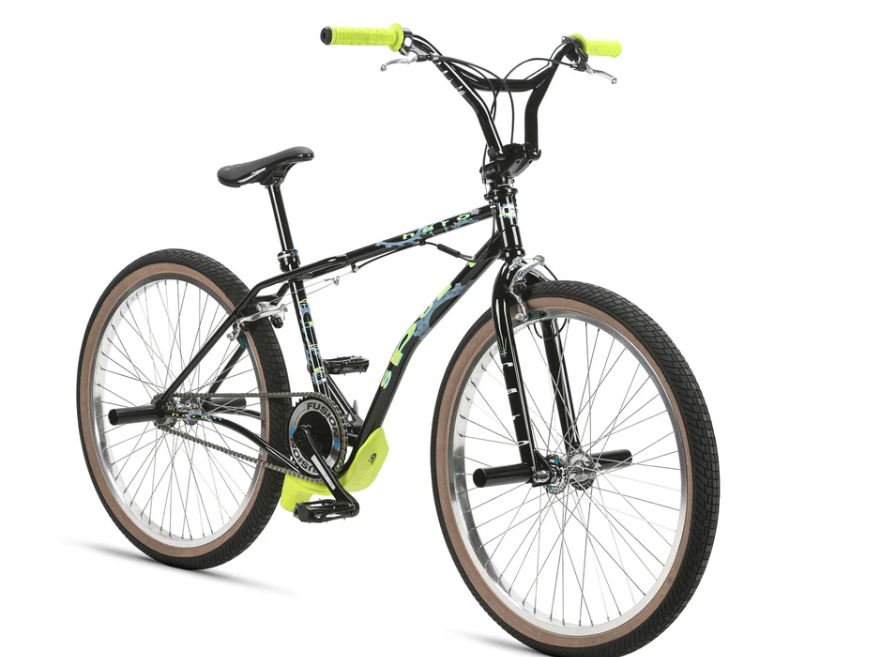

2023 Haro Lineage Sport Bashguard 26 – BMX Bike

Images:

1

2

3

4

5

Specifications

Specification	Details
Model	Lineage Sport Bashguard 26
Vehicle Category	BMX Bike
Application	Freestyle riding
Starting Price (2023)	$1,649.99
Color Options	Black
Sizes	22.5"

Frame & Drivetrain

Specification	Details
Frame	100% chromoly Lineage Sport 26" frame with platform and bash guard, Mid BB shell, integrated head tube, invest-cast drop outs with integrated chain tensioners, 22.5" top tube length, 73° head angle, 13.7" chainstay
Fork	100% chromoly 26" fork with internal threaded steer tube, tapered legs, 1989 style peg bosses, 990 brake mounts with internal brake cable routing, 28mm offset
Crank	Haro Lineage heat treated 3-piece alloy 175mm cranks, bolt drive interface, 22mm spindle, Fusion Disc 41T CNC alloy bolt drive sprocket
Chain	KMC K710SL super light chain
Bottom Bracket	Sealed MID 22mm BB

Components & Features

Specification	Details
Seating	Haro Fusion slim stealth pivotal seat
Wheels/Tyres	Kenda Kranium tires 26 x 2.1" front and rear, Haro Lineage 26 x 1.75" double wall welded joint rims, 36h alloy hub body, 3/8" chromoly straight axle, 2 sealed bearings, Haro Lineage sealed bearings 17t Freewheel, 17mm steel flange axle nuts
Wheel Size	26"

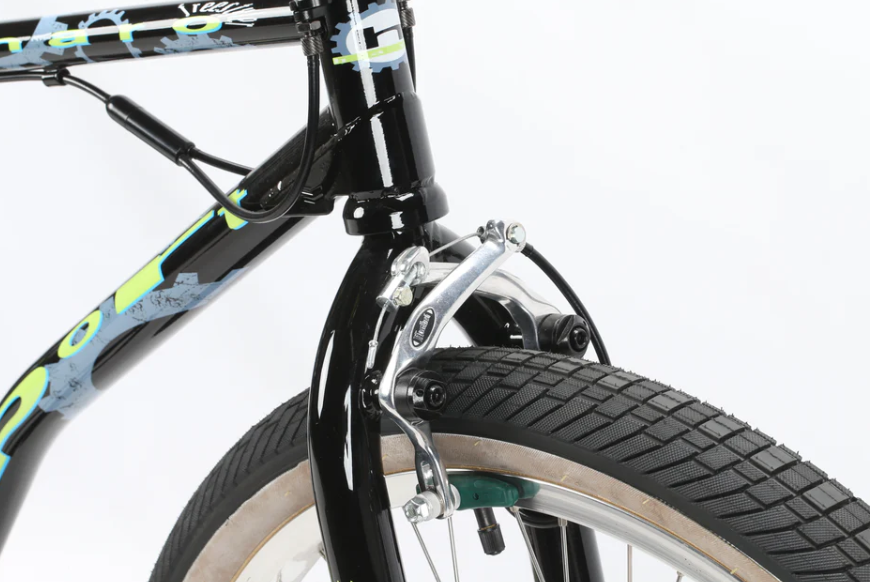

Brakes	Dia-Compe Hombre FS996 front and AD996 rear U-brakes
Brake Levers	Dia-Compe Tech 77 levers

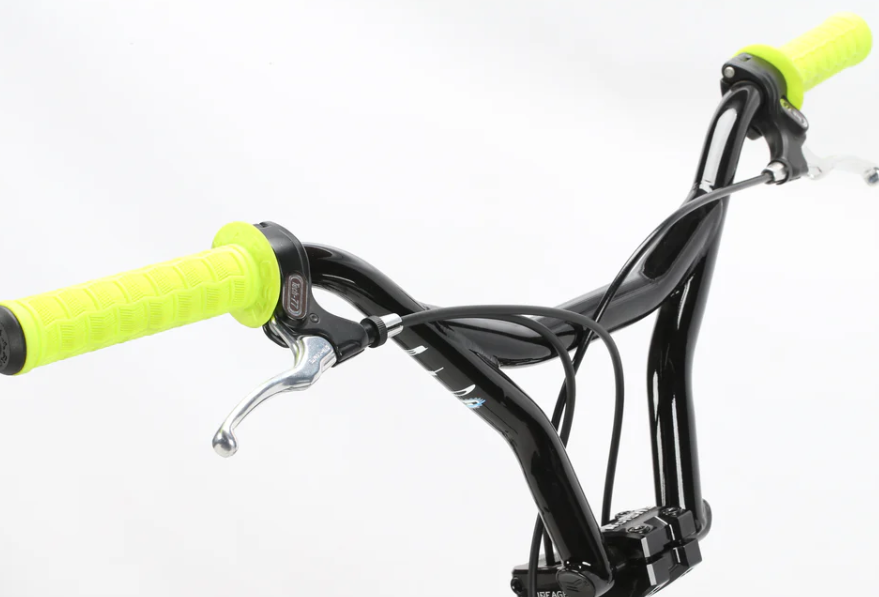

Handlebar	100% heat-treated and butted chromoly Lineage Kneesaver bars, 8.5" rise
Stem	Haro Lineage fusion top load stem, T6 alloy, cold forged with CNC, 52mm
Headset	Sealed Integrated, 1 1/8"
Saddle	Haro Fusion slim stealth pivotal seat
Seatpost	Haro Fusion stealth pivotal seat post, 25.4 x 300mm
Grips	Haro Team grip, 145mm length x 29mm diameter, 50mm od flange (low), kraton a15 material (super soft)
Front Hub	36h alloy hub body, 3/8" chromoly straight axle, 2 sealed bearings
Rear Hub	Haro Lineage sealed bearings, 17t Freewheel, 17mm steel flange axle nuts
Rims	Haro Lineage 26 x 1.75", 46h, double wall welded joint
Spokes	36 hole
Pedals	Haro Fusion, alloy pedal body, chromoly axle

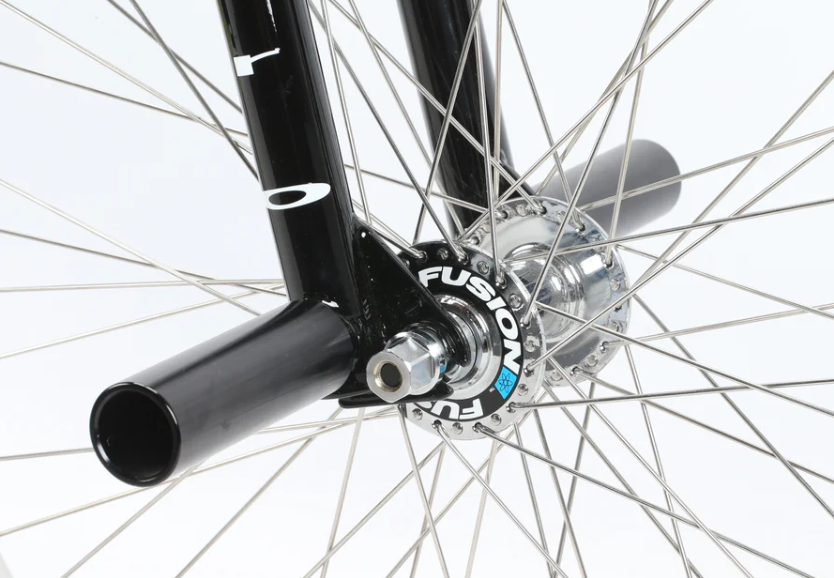

Exterior Features	CNC alloy pegs, CNC alloy gyro with Teflon bearing, Haro Lineage two-bolt alloy seat post clamp

* All the images are screenshots!
* Data has been taken from official website (Publicly Available)!
