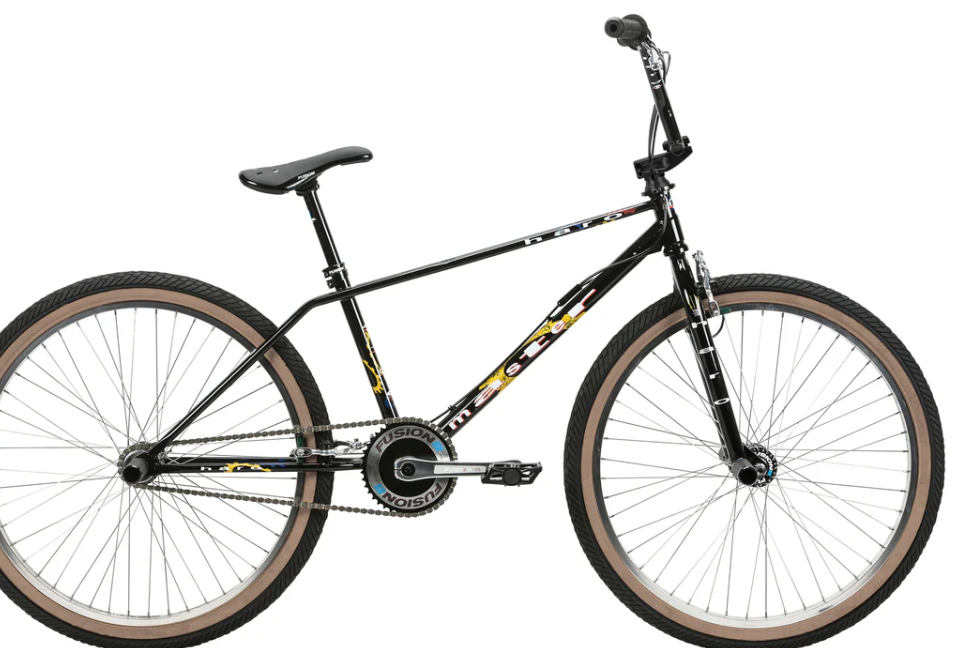

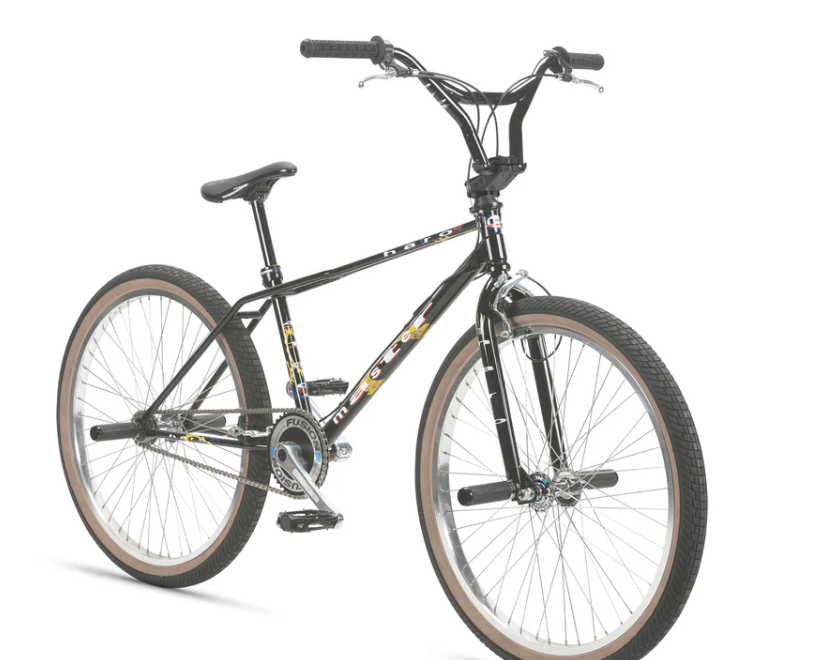

2025 Haro Lineage Ground Master 26 – Big Wheel BMX Bike
Specifications
|
Specification |
Details |
|
Model |
Lineage Ground Master 26 |
|
Vehicle Category |
Big Wheel BMX Bike |
|
Application |
Freestyle riding |
|
Starting Price (2025) |
$1,649.99 |
|
Color Options |
Black |
|
Sizes |
22.5" top tube |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Full chromoly, 22.5" top tube, integrated head tube, mid BB shell, removable brake mounts |
|
Fork |
Full chromoly, CNC 1-piece internal threaded steerer tube, tapered legs, 15mm offset, 990 brake mounts |
|
Crank |

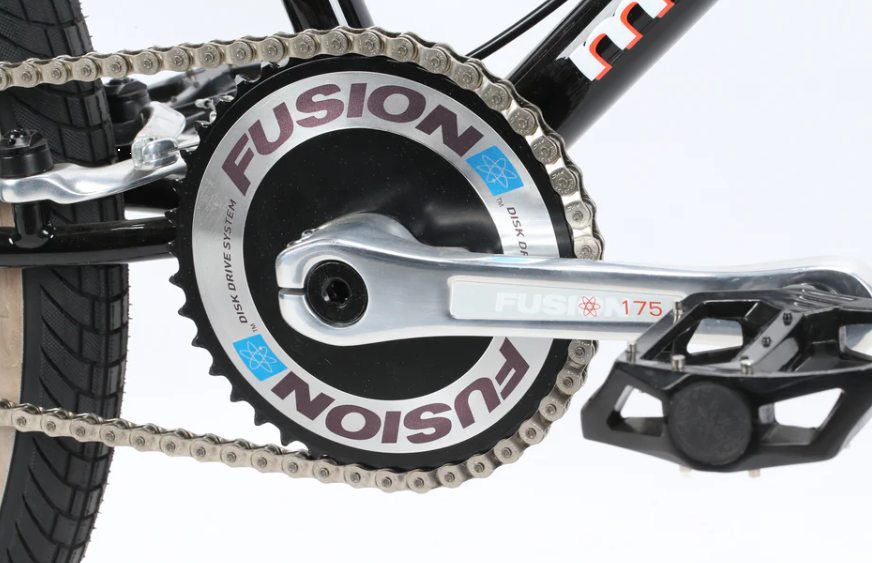

Haro Lineage Fusion 3-piece alloy, 41T, 175mm |
|
Chain |
KMC K1Sl, 1/2 x 1/8, narrow silver super lite |
|
Bottom Bracket |
Sealed mid bottom bracket |
Components & Features
|
Specification |
Details |
|
Seating |
Haro Lineage padded Pivotal stealth |
|
Wheels/Tyres |
Haro Lineage double wall alloy, 36H, Kenda Kranium 26 x 2.1 |
|
Wheel Size |
26" |
|
Brakes |

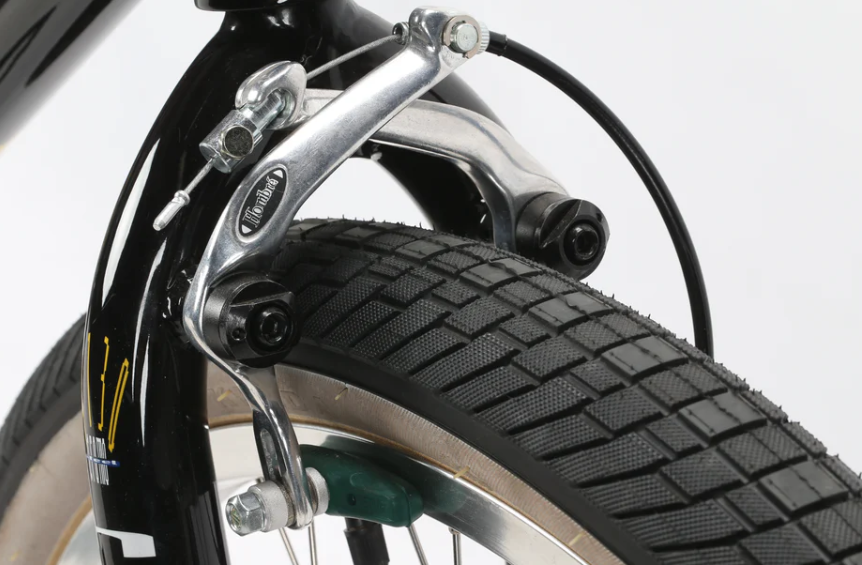

Dia-Compe FS996 Hombre (front), AD996 (rear), V-brakes |
|
Brake Levers |
Dia-Compe Tech-77 |
|
Handlebar |
Lineage Kneesaver, chromoly, 8.5" rise |
|
Stem |
Haro Lineage Fusion top load, T6 alloy, 52mm reach |
|
Headset |
Sealed integrated, 1-1/8" |
|
Saddle |
Haro Lineage padded Pivotal stealth |
|
Seatpost |
Haro Lineage Fusion stealth Pivotal, 25.4mm |
|
Grips |
Haro Team grip, 145mm |
|
Front Hub |

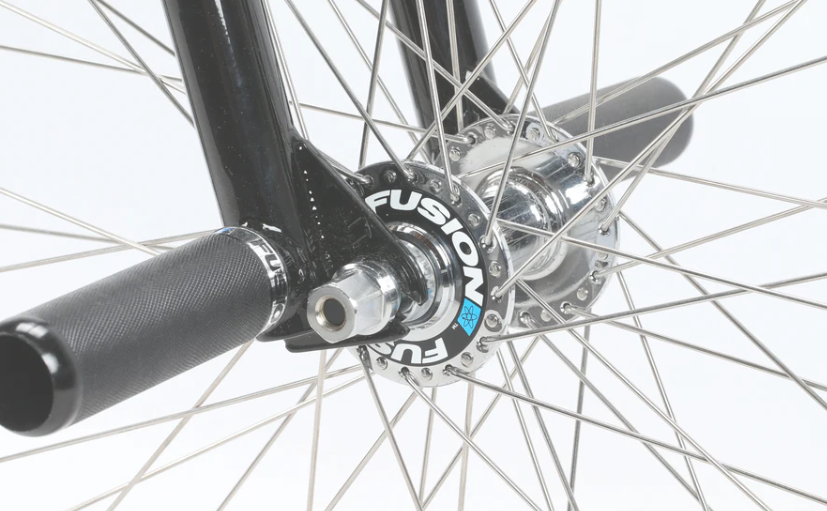

Alloy, high flange, sealed bearings, 3/8" chromoly axle, 36H |
|
Rear Hub |
Haro Lineage, sealed bearings, 17T freewheel, 36H |
|
Rims |
Haro Lineage double wall alloy, 36H |
|
Pedals |
Haro Fusion, alloy pedal body, chromoly axle |
|
Exterior Features |
CNC alloy pegs, CNC alloy gyro |
