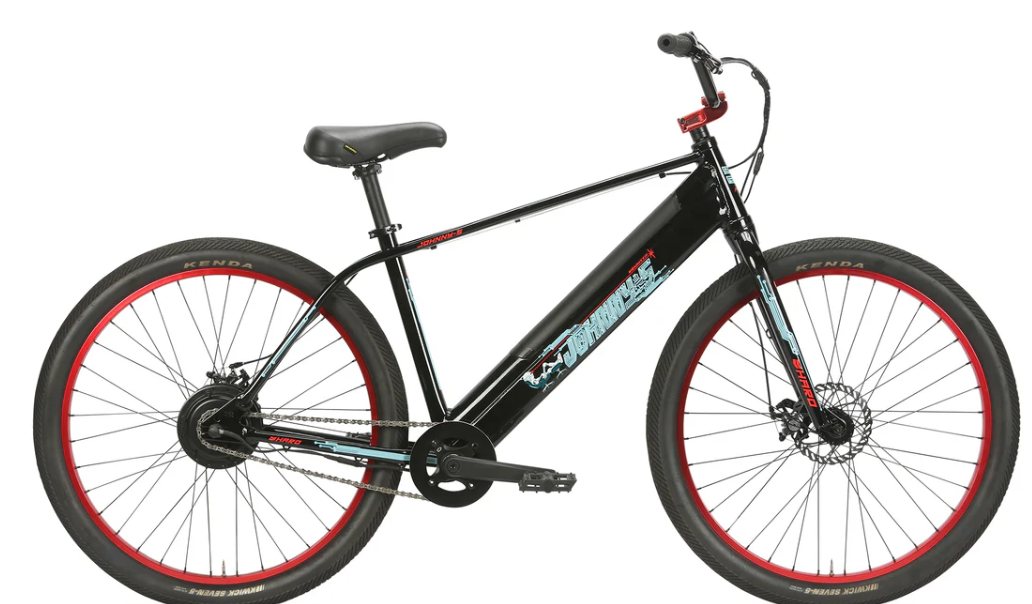

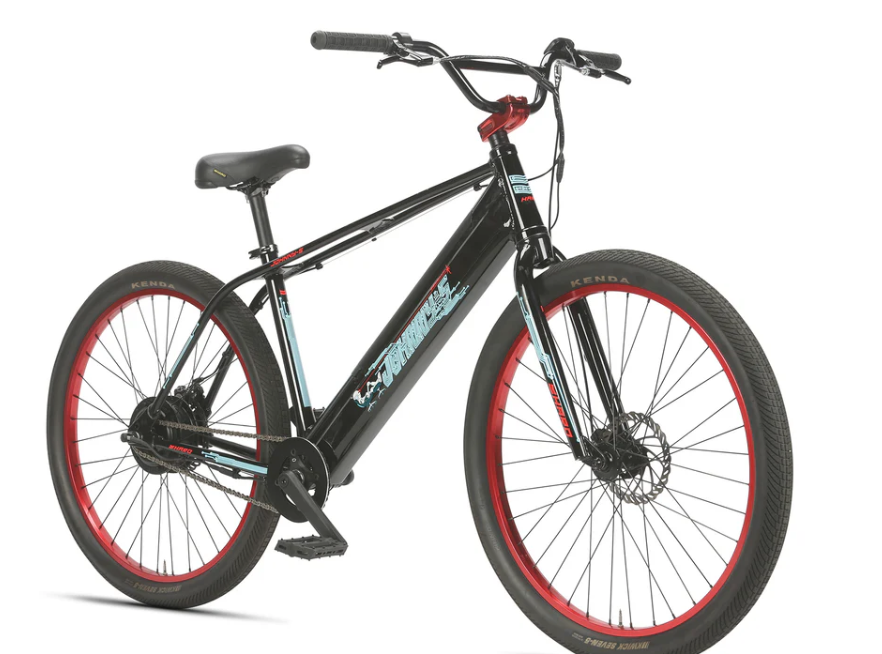

2025 Haro Johnny 5 – E-Bike
Specifications
|
Specification |
Details |
|
Model |
Johnny 5 |
|
Vehicle Category |
E-Bike |
|
Application |
Freestyle riding |
|
Starting Price (2025) |
$1,499.99 |
|
Color Options |
Black |
|
Sizes |
25.3" |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
6061-T6 Heat treated aluminium twin top tube frame, tapered 1-1/8" - 1-1/5" headtube, 25.4" top tube, 17.25" chain stay, 61.9° seat tube, 67° head tube |
|
Fork |
Full chromoly 1-1/8" - 1-1/5" tapered, internally threaded steerer tube fork, M25 Alloy compression cap, 3/8" dropouts, 28mm offset |
|
Crank |
3-pc Hollow forged aluminium with tapered square spindle, 170mm, 36t Alloy Chainring with aluminium chain guard |
|
Chain |
KMC 410 Z chain |
|
Bottom Bracket |
Euro square tapered pedal assist |
Components & Features
|
Specification |
Details |
|
Seating |
Haro Johnny 5 saddle |
|
Fuel Type |
Electric (672WH, 48V, 14AH, Samsung internal down tube battery) |
|
Wheels/Tyres |
Kenda Kwick Seven 27.5" x 2.4", 27.5" Alloy 36h, Double Wall rims, Sealed bearing, High flange, 36H female axle front hub |
|
Wheel Size |
27.5" |
|
Brakes |
Promax Mechanical Disc Brake, 160mm Rotor |
|
Brake Levers |
Promax 2.5 finger |
|
Handlebar |
Haro 5" Legends 2-piece bar |
|
Stem |
Baseline forged 48mm reach |
|
Headset |
FSA 1 1/8" X 1.5" Sealed Bearing |
|
Saddle |
Haro Johnny 5 saddle |
|
Seatpost |
Alloy, 30.9 x 350mm |
|
Grips |
Baseline Flangeless |
|
Front Hub |
Sealed bearing, High flange, 36H female axle front hub |
|
Rear Hub |

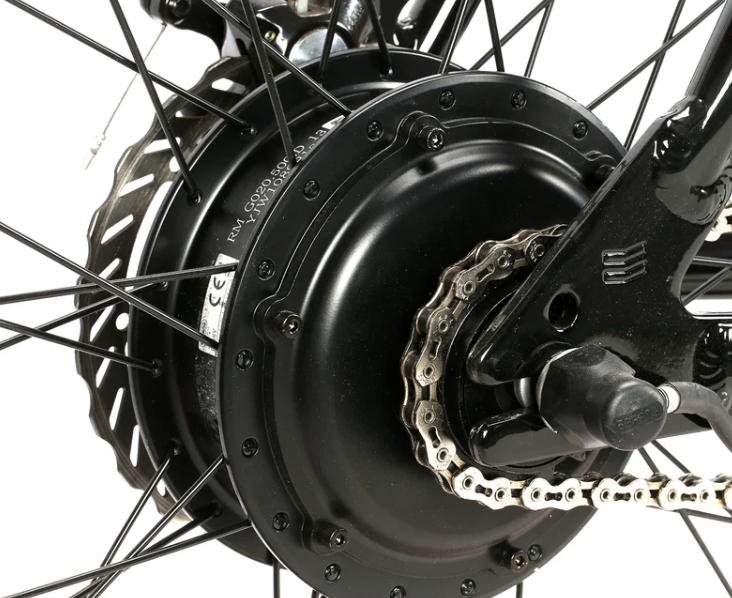

Bafang 48V, 500W 36H, rear hub |
|
Rims |
27.5" Alloy 36h, Double Wall |
|
Spokes |
36 hole |
|
Pedals |
FPD PC 9/16" |
|
Exterior Features |
Bafang LCD Display, 5 power settings, Thumb Throttle |
