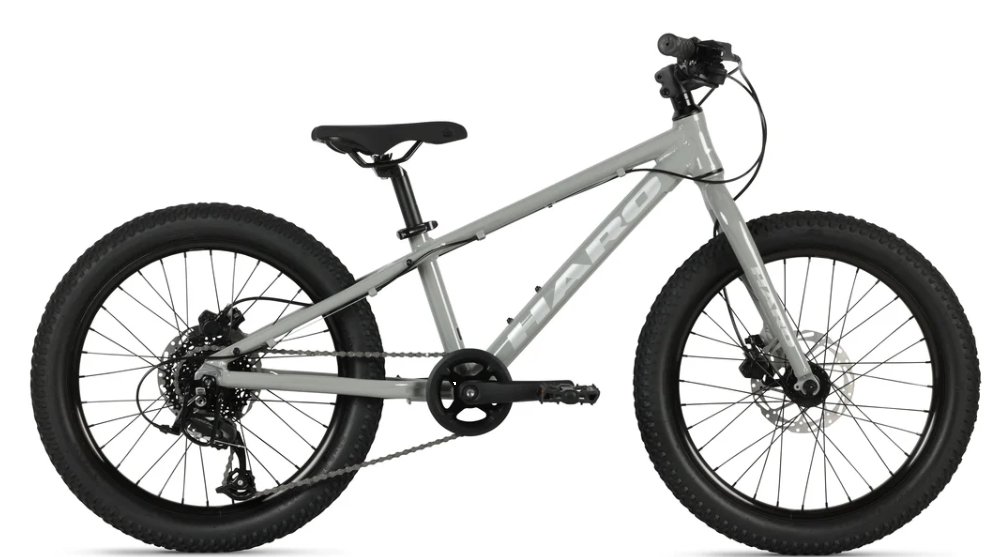

2024 Haro Flightline 20 Plus Disc – Kids Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Flightline 20 Plus Disc |
|
Vehicle Category |
Kids Mountain Bike |
|
Application |
Trail riding |
|
Starting Price (2025) |
$649.99 |
|
Color Options |
Cool Grey |
|
Sizes |
20 |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
FL 20" Plus X6 Series frame, new chainstays, 69° head tube angle |
|
Fork |
6000 Series aluminum 1-1/8" fork, 35mm offset |
|

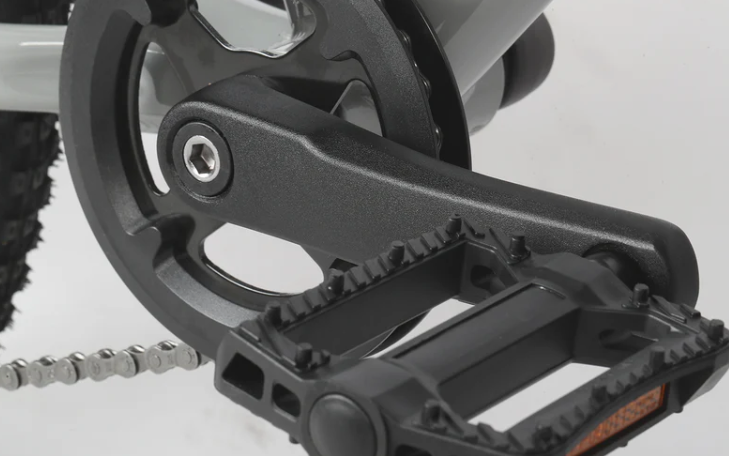

Crank |
Aluminum 3-pc 28T crankset w/ double chainguard, 127mm |
|
Chain |
KMC Z8 8.3, 1/2"x3/32", 92L, GYGY |
|
Bottom Bracket |
Cartridge Bearing 73mmX122.5mm |
|
Shifters |
Shimano SL-M315-R rapid fire 8spd |
|
Rear Derailleur |
Shimano Altus 8-SPD, RD-M310-L |
Components & Features
|
Specification |
Details |
|
Seating |
Haro Flightline Jr |
|
Wheels/Tyres |
Chao Yang H5183 20"x2.60", Aluminum single wall 20" 31mm wide, Steel 6 bolt rotor compatible hubs |
|
Wheel Size |
20" |
|

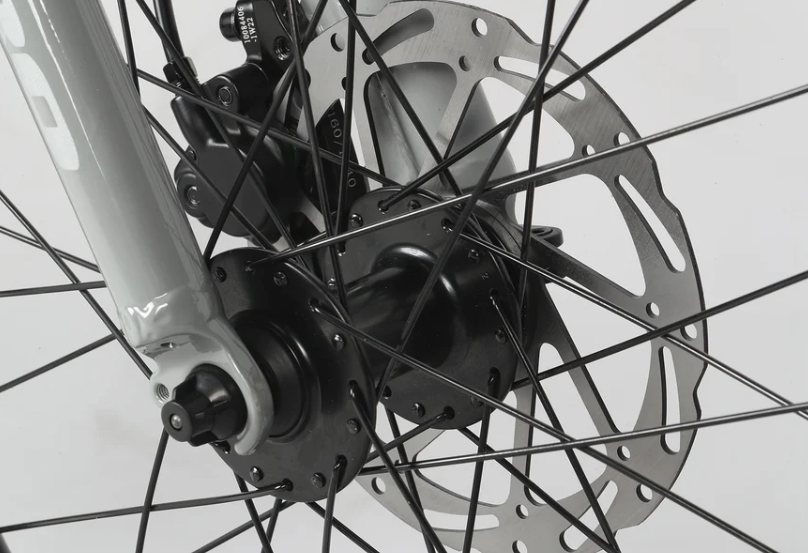

Brakes |
Tektro HD-J285 Hydraulic disc brakes with 160mm rotors |
|
Brake Levers |
Kids specific Tektro HD-J285 brake levers |
|

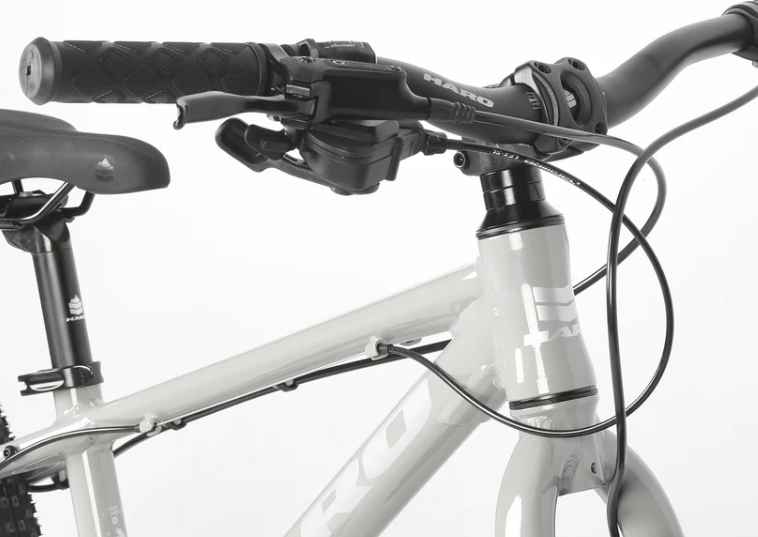

Handlebar |
Alloy Riser Bar, 620mmW, 9° back sweep, 25mm Rise, ø31.8 |
|
Stem |
Alloy 1-1/8", ø31.8 bar bore, 45mmL, 7° Rise |
|
Headset |
1-1/8" Threadless |
|

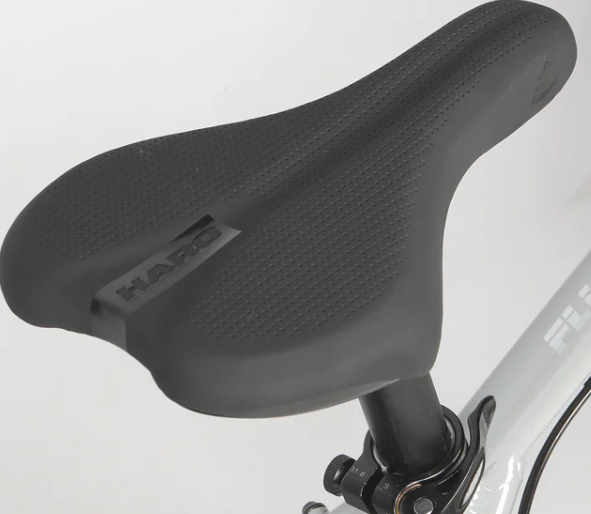

Saddle |
Haro Flightline Jr |
|
Seatpost |
Alloy micro adjust ø27.2 |
|
Grips |
Krayton rubber 127mmL |
|
Front Hub |
Steel 6 bolt rotor compatible |
|
Rear Hub |
Steel 6 bolt rotor compatible |
|
Rims |
Aluminum single wall 20" 31mm wide |
|
Pedals |
MTB nylon body 9/16" |
|
Exterior Features |
Alloy ø31.8 quick release seat clamp |
