2025 Haro Daley Alloy LTD 2 – Mountain Bike

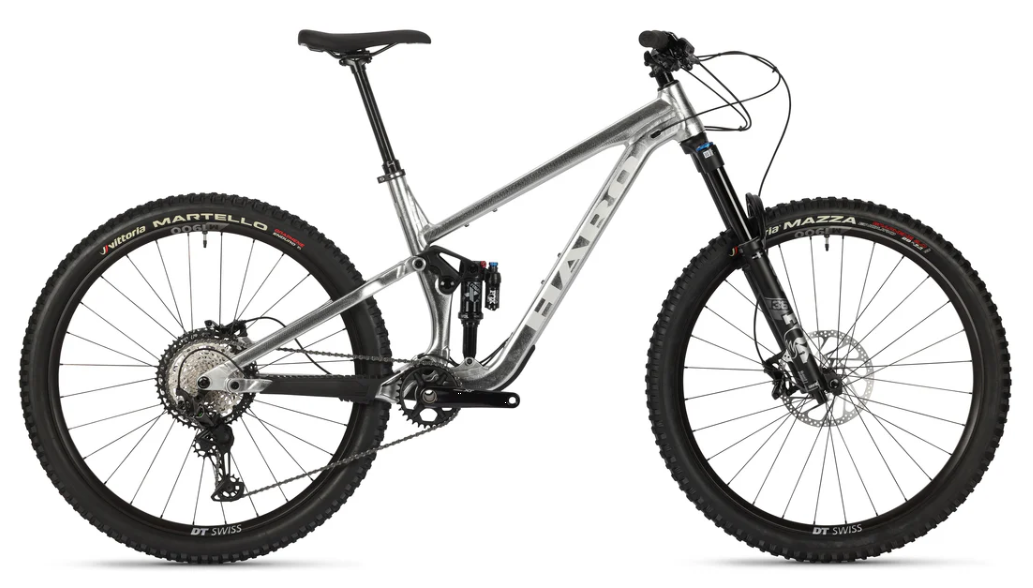

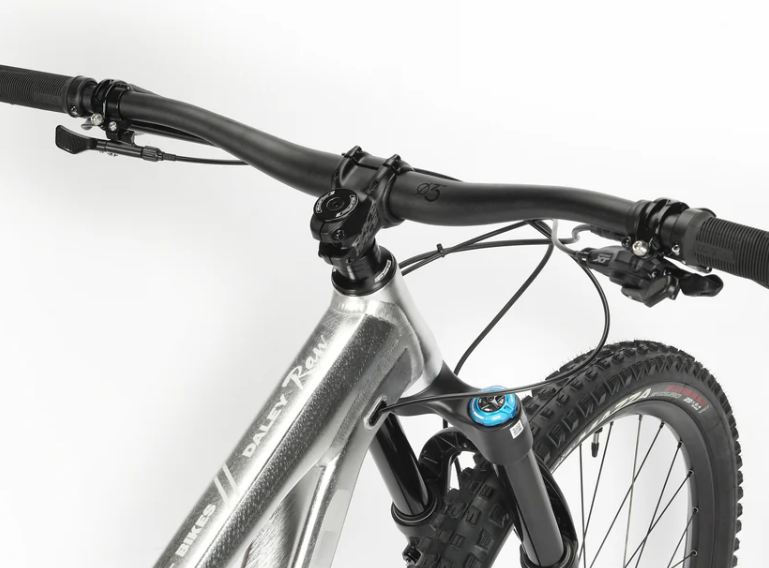

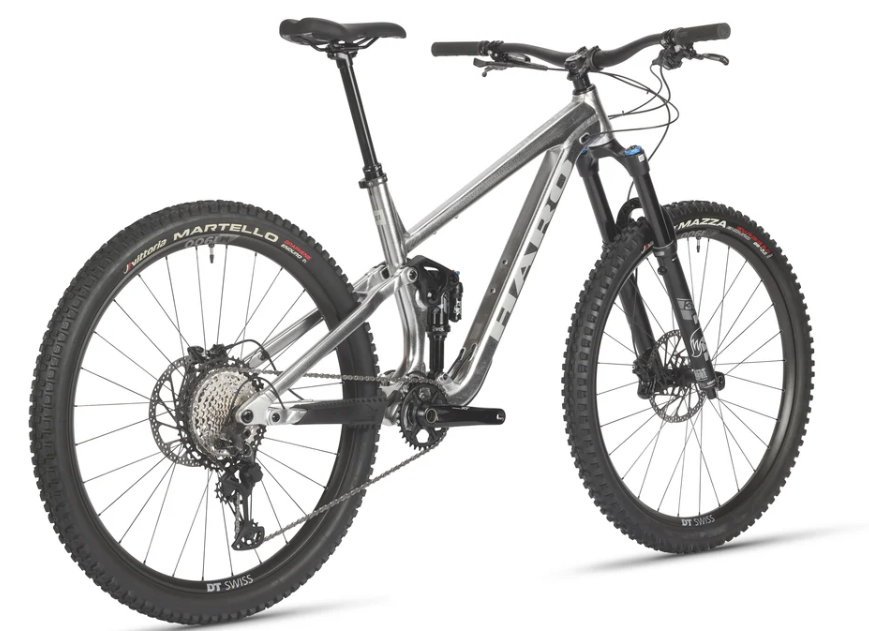

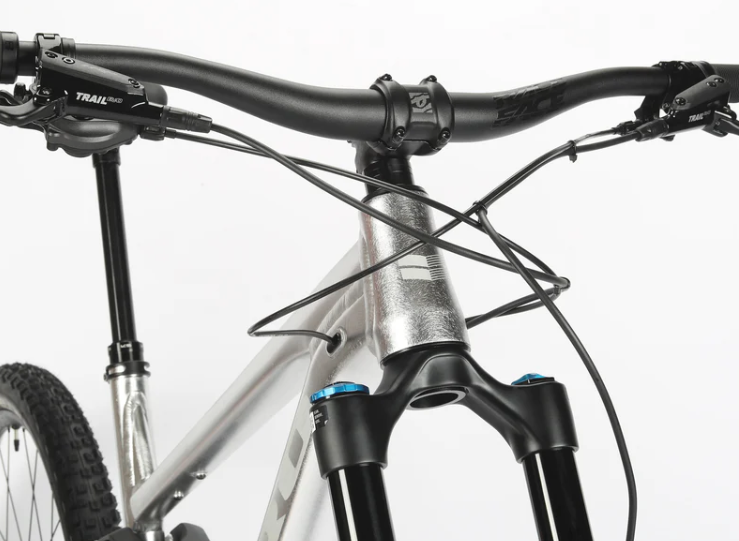

Images:

1

2

3

4

5

Specifications

Specification	Details
Model	Daley Alloy LTD 2
Vehicle Category	Mountain Bike
Application	Trail riding
Starting Price (2025)	$3,749.99
Color Options	Raw
Sizes	S, M, L, XL

Frame & Drivetrain

Specification	Details
Frame	Haro Daley alloy full-suspension frame with raw anodized finish, 1-1/8" - 1-1/5" tapered head tube, 148mm Boost OLD, UDH derailleur hanger, 64.5° head tube angle
Fork	Fox Float 36 Performance Elite with Grip X, 150mm travel, 44mm offset
Rear Shock	Fox Float X Performance Elite, 140mm travel
Crank	Shimano XT, FC-M8120-1, 165mm, 32T chainring, 55:CL
Chain	Shimano CN-M8100 HG 12-speed
Bottom Bracket	Shimano BB-MT501 BSA 68/73mm
Shifters	Shimano XT 12-speed, SL-M8100R
Rear Derailleur	Shimano XT 12-speed, Shadow Plus, RD-M8100

Components & Features

Specification	Details
Seating	WTB Volt Medium PU leather, flex-tuned, chromoly rails, with ABR corners
Wheels/Tyres	Vittoria Mazza 2.4" enduro G2.0 120TPI (front), Vittoria Martello 2.4" enduro G2.0 120TPI (rear), DT Swiss M 1900 Spline wheel set, 27.5" (Small size), 29" (M, L, XL sizes)
Wheel Size	27.5" (Small size), 29" (M, L, XL sizes)
Brakes	TRP Trail EVO 4-piston hydraulic disc with 203mm rotors, front & rear
Brake Levers	TRP Trail EVO
Handlebar	Race Face Chester 35mm OD, 35mm rise, 780mm wide
Stem	Race Face Chester 35mm ID, 40mm reach
Headset	FSA ORBIT 1.5E ZS/ NO.57E tapered, 44/56mm head tube
Saddle	WTB Volt Medium PU leather, flex-tuned, chromoly rails, with ABR corners
Seatpost	Kind Shock Rage-I dropper, 34.9mm OD, Small 150mm, Medium 170mm, Large 190mm, X-Large 190mm
Grips	WTB Wavelength 130mm lock-on
Front Hub	DT Swiss M 1900 Spline
Rear Hub	DT Swiss M 1900 Spline
Rims	DT Swiss M 1900 Spline wheel set
Exterior Features	Tubeless valves and sealant, 3D Forged 6061 aluminum 38.9mm ID seat clamp
Weight	38.2 lbs (17.29 kg, Large size)

* All the images are screenshots!
* Data has been taken from official website (Publicly Available)!
