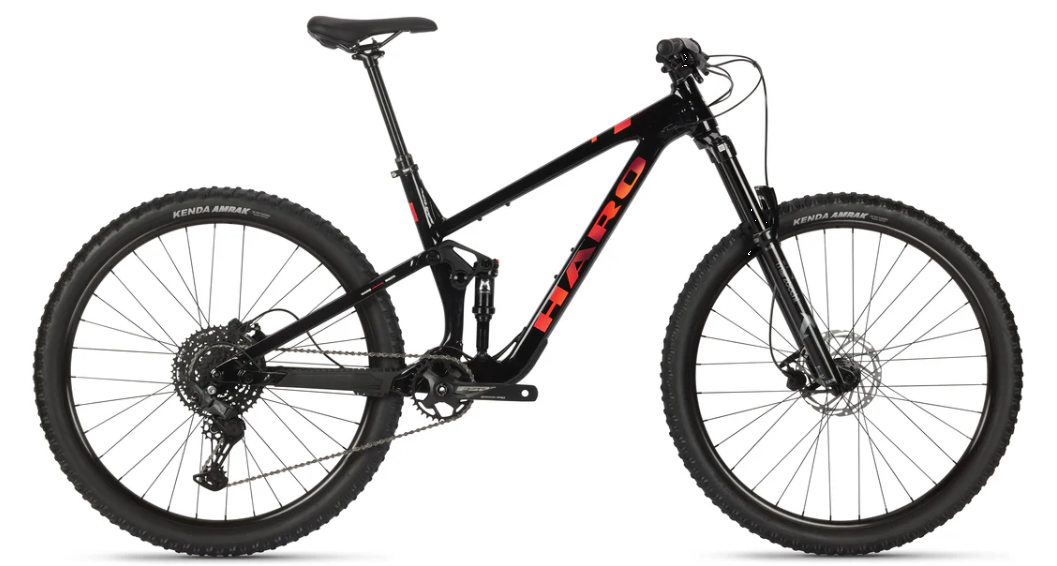

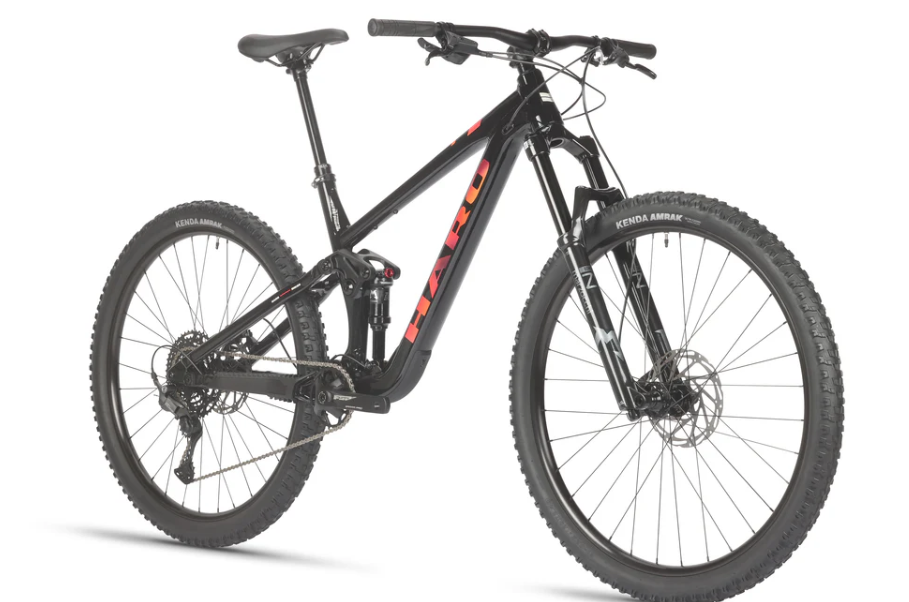

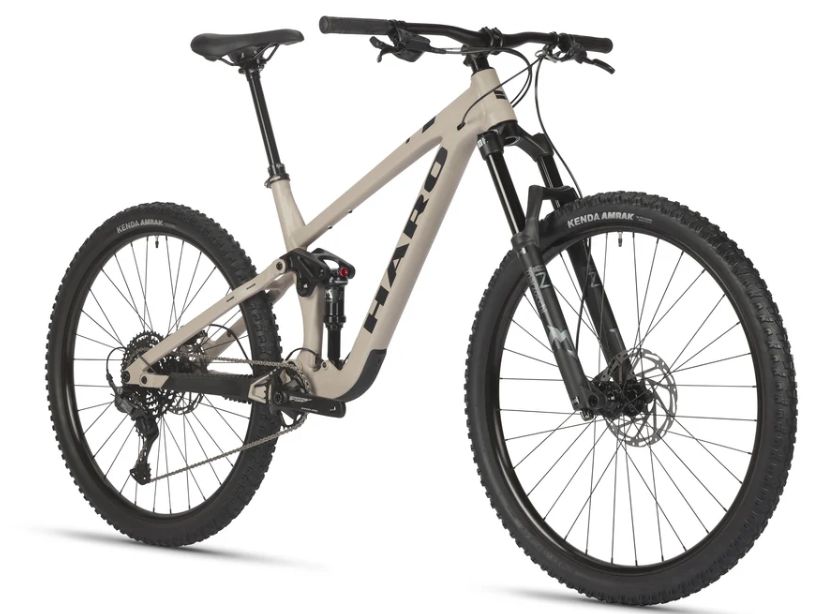

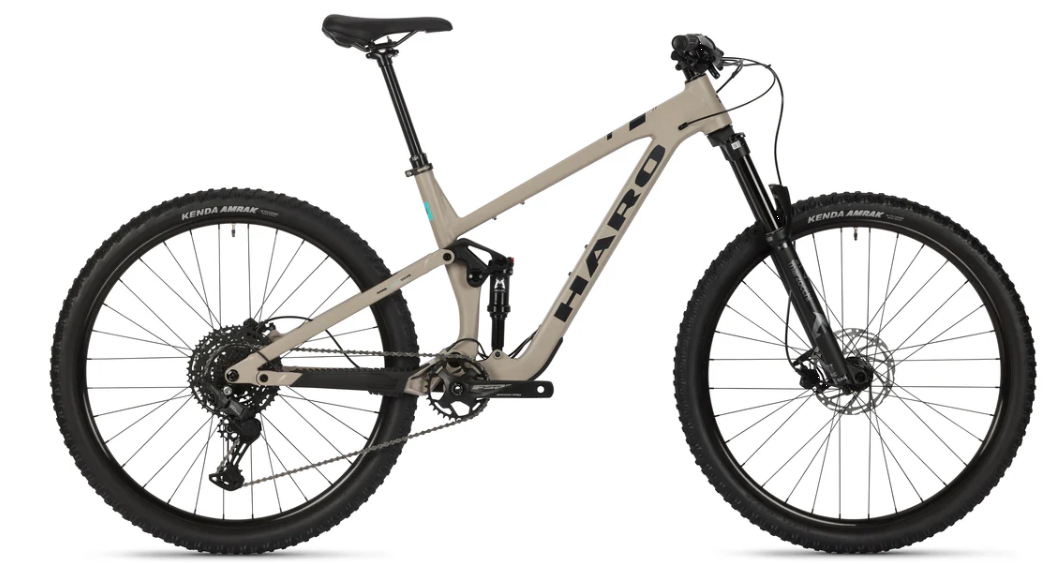

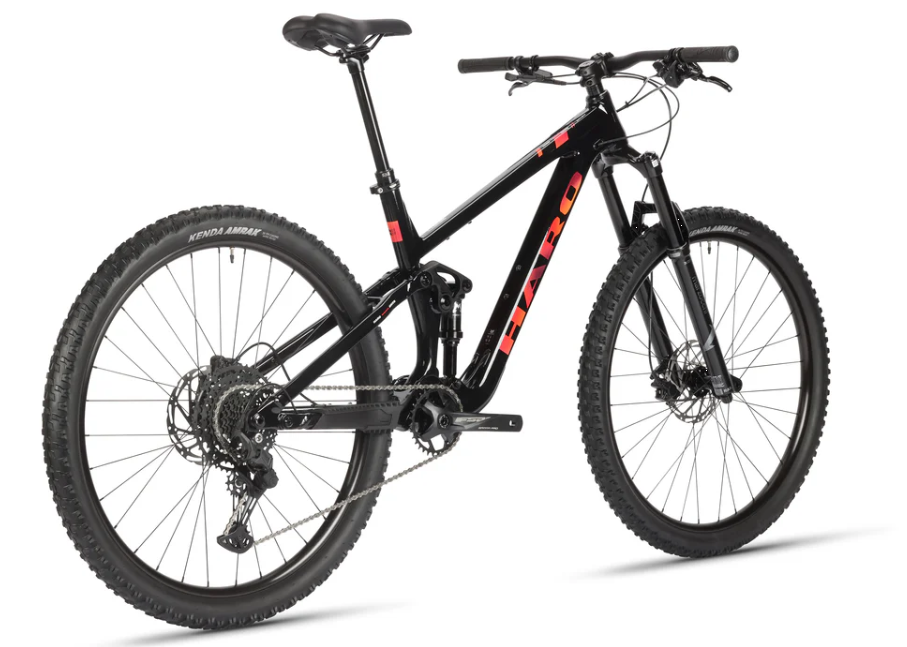

2025 Haro Daley Alloy 3 – Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Daley Alloy 3 |
|
Vehicle Category |
Mountain Bike |
|
Application |
Trail riding |
|
Starting Price (2025) |
$1,999.99 |
|
Color Options |
Trans Black / Amber, Matte Stone Grey |
|
Sizes |
S, M, L, XL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Haro Daley alloy full-suspension frame, 1-1/8" - 1-1/5" tapered head tube, 148mm Boost OLD, UDH derailleur hanger, 64.5° head tube angle |
|
Fork |
Marzocchi Bomber Z2, Rail - Sweep Adjust, Kabolt 110 x 12mm thru-axle, 44mm offset, 150mm travel |
|
Rear Shock |
Marzocchi Inline R, 140mm travel |
|
Crank |
FSA Gamma Pro 165mm, 32T chainring |
|
Chain |
KMC E Glide |
|
Bottom Bracket |
FSA Mega EXO 73mm |
|
Shifters |
Shimano Cues Rapid Fire 10-speed |
|
Rear Derailleur |
Shimano Cues Shadow Plus 10-speed |
Components & Features
|
Specification |
Details |
|
Seating |
WTB Volt Medium, w/steel rails |
|
Wheels/Tyres |
CST L-CAT DK27 2.35" front & rear, Double-wall alloy 32h, I25, Alloy hub shells, 2 sealed bearings, 110x15 Front, 148x12 Rear, 27.5" (Small size), 29" (M, L, XL sizes) |
|
Wheel Size |
27.5" (Small size), 29" (M, L, XL sizes) |
|
Brakes |
Tektro Gemini 2-piston hydraulic disc with 180mm rotors |
|
Brake Levers |
Tektro Gemini |
|
Handlebar |
Alloy 6061-T6 Riser bar, 800mm wide, 20mm rise, 6° back sweep, 4° upsweep |
|
Stem |
6061-T6 Forged Alloy 31.8 ID, 45mm reach |
|
Headset |
FSA Orbit 1.5E ZS/ NO.57E tapered headset, 44/56mm head tube |
|
Saddle |
WTB Volt Medium, w/steel rails |
|
Seatpost |
Kind Shock I900 34.9 OD, Small 150mm, Medium 170mm, Large 200mm, X-Large 200mm |
|
Grips |
WTB Trail II, 140x30mm |
|
Front Hub |
Alloy hub shells, 2 sealed bearings, 110x15 |
|
Rear Hub |
Alloy hub shells, 2 sealed bearings, 148x12 |
|
Rims |
Double-wall alloy 32h, I25 |
|
Spokes |
32 hole |
|
Exterior Features |
3D Forged 6061 aluminum 38.9mm ID seat clamp |
|
Weight |
37.7 lbs (16.98 kg, Large size) |
