Model

Daley Alloy 1

Vehicle Category

Mountain Bike

Application

Trail riding

Starting Price (2025)

$3,249.99

Color Options

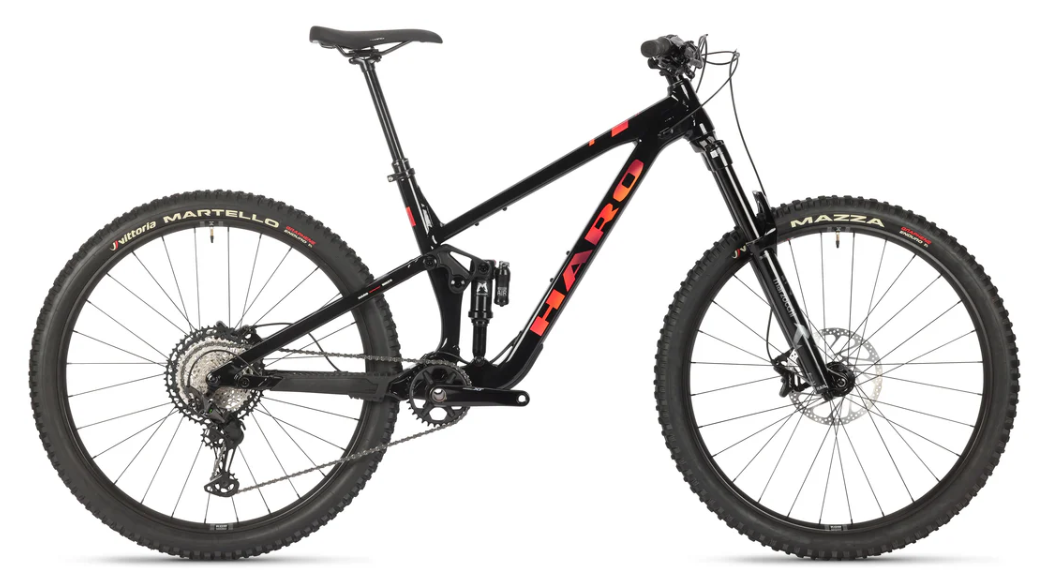

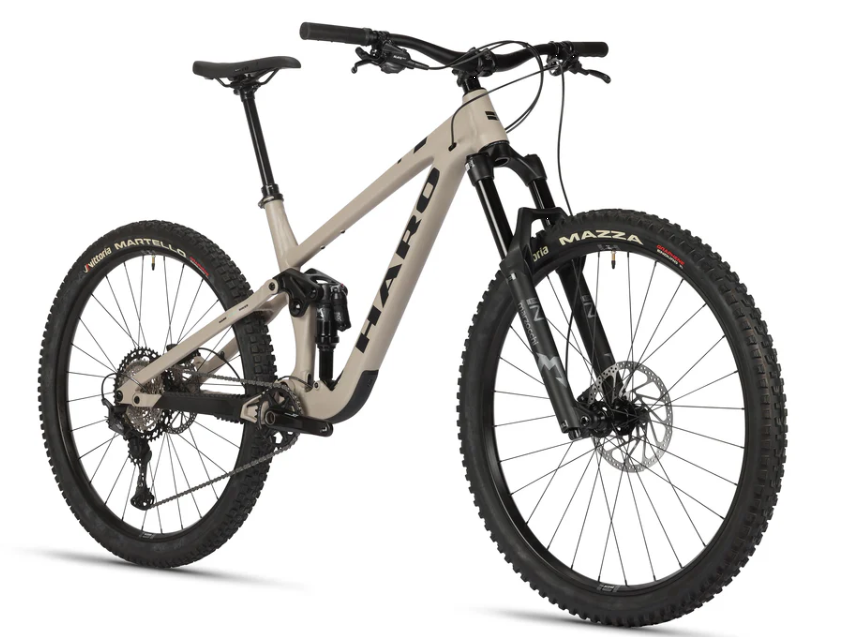

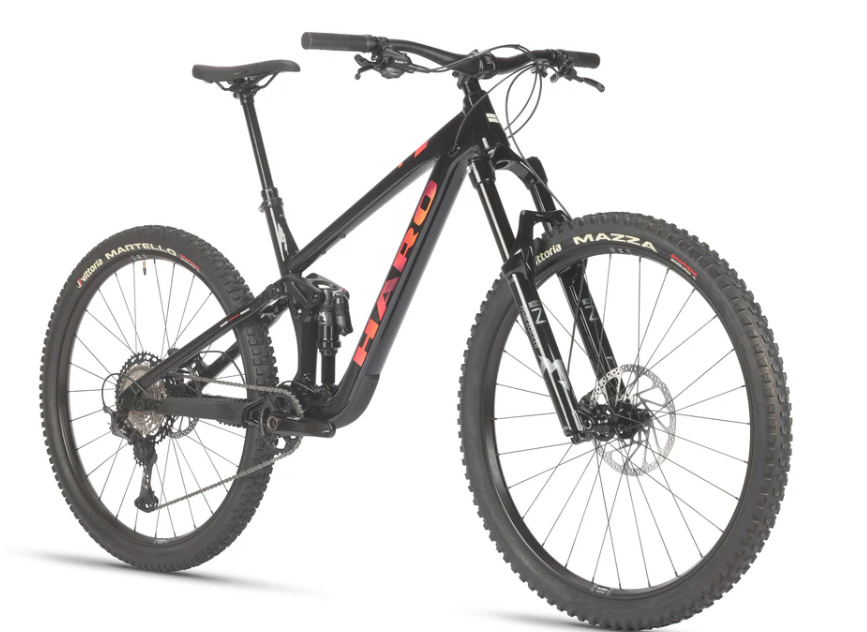

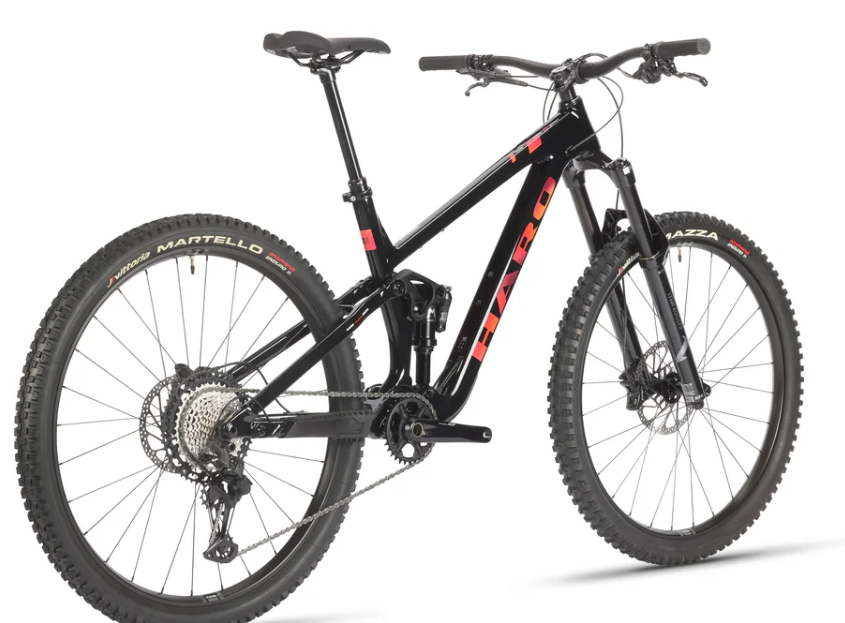

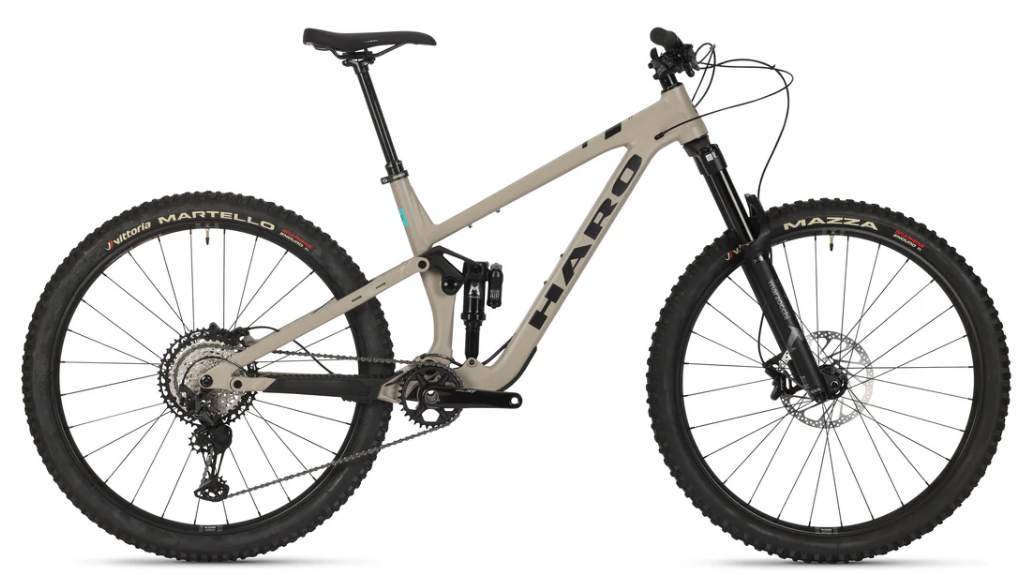

Trans Black/Amber, Matte Stone Grey

Sizes

S, M, L, XL

Frame

Haro Daley alloy, 1-1/8" to 1-1/5" tapered head tube, 148mm Boost OLD, UDH derailleur hanger

Fork

Marzocchi Bomber Z1, Rail - sweep adjust, 150mm travel

Rear Shock

Marzocchi Bomber Air, sweep adjust, 140mm travel

Crank

Shimano XT, FC-M8120-1, 32T, 165mm

Chain

Shimano CN-M8100 HG 12-speed

Bottom Bracket

Shimano BB-MT501 BSA 68/73mm

Shifters

Shimano XT 12-speed, SL-M8100R

Rear Derailleur

Shimano XT 12-speed, Shadow Plus, RD-M8100

Seating

WTB Volt Medium, PU leather, flex-tuned, chromoly rails

Wheels/Tyres

WTB KOM Trail, I30, sleeved double-wall alloy, 28H, Vittoria Mazza 2.4" front, Vittoria Martello 2.4" rear

Wheel Size

29" (S: 27.5")

Brakes

TRP Slate EVO 4-piston hydraulic disc, 203mm front rotor, 180mm rear rotor

Brake Levers

TRP Slate EVO

Handlebar

Race Face Chester, 35mm OD, 780mm wide, 35mm rise

Stem

Race Face Chester, 35mm ID, 40mm reach

Headset

FSA ORBIT 1.5E ZS/NO.57E tapered, 44/56mm

Saddle

WTB Volt Medium, PU leather, flex-tuned, chromoly rails

Seatpost

Kind Shock Rage-i dropper, 34.9mm, 150mm (S), 170mm (M), 200mm (L/XL)

Grips

WTB Wavelength 130mm lock-on

Front Hub

Alloy CNC, 4 sealed bearings, 110 x 15mm front axle, 28H

Rear Hub

Alloy CNC, 4 sealed bearings, 148 x 12mm rear axle, 5-pawl driver, 28H

Rims

WTB KOM Trail, I30, sleeved double-wall alloy, 28H

Exterior Features

Tubeless valves and sealant

Weight

38.2 lbs (17.29 kg)
