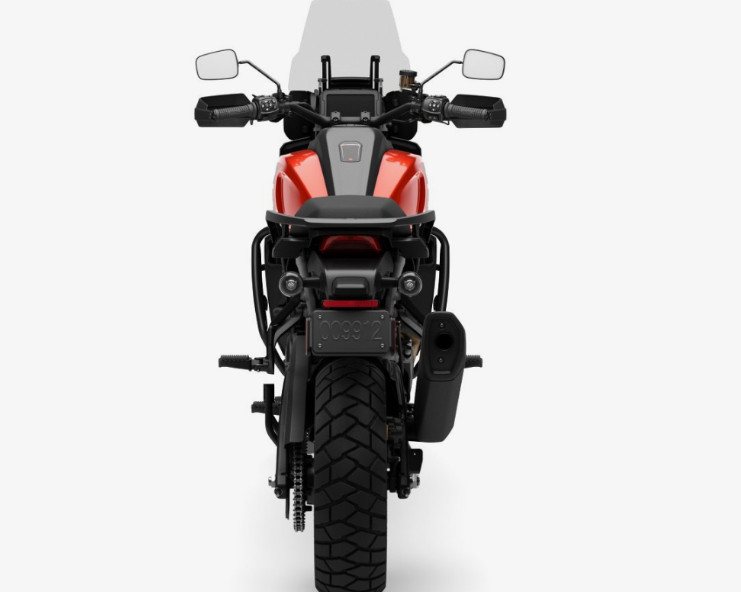

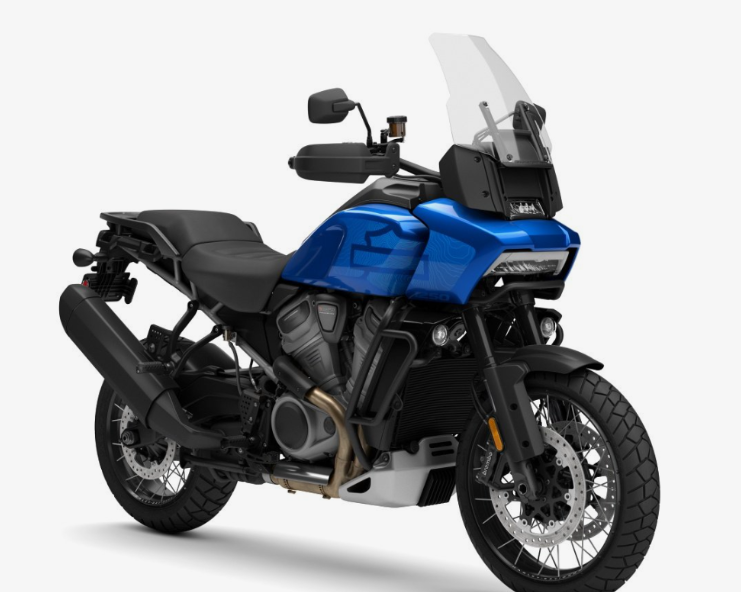

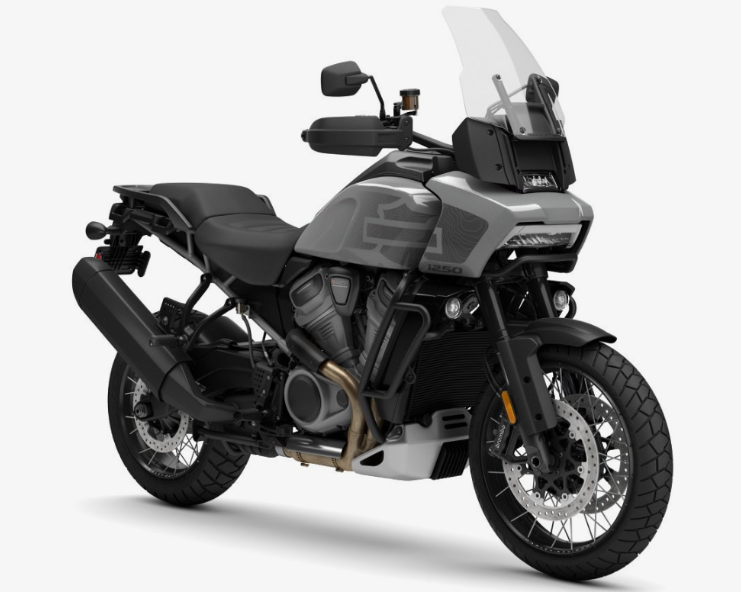

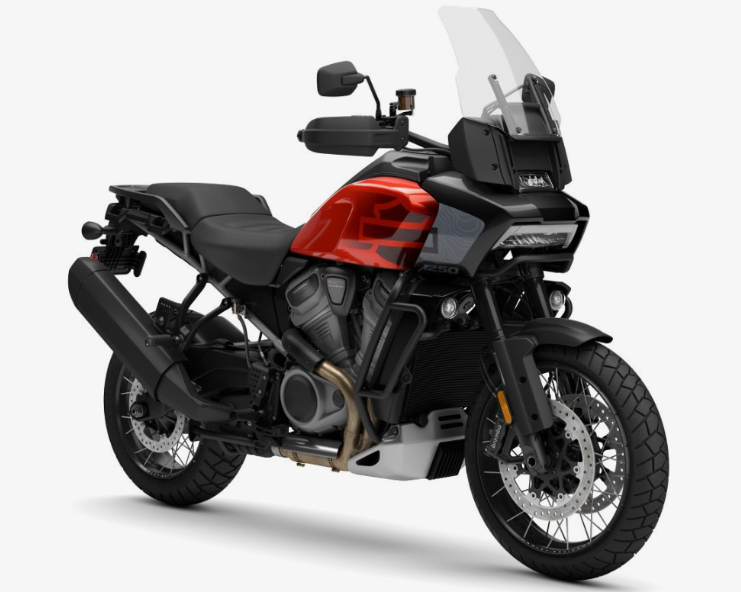

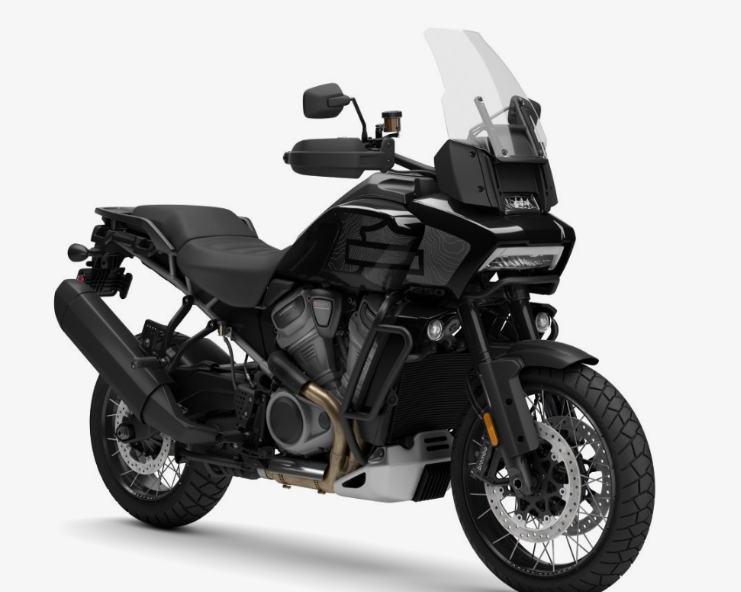

Harley-Davidson Pan America 1250 Special 2025 – Adventure Touring Motorcycle
Specifications
|
Specification |
Details |
|
Engine Type |
Revolution Max 1250, V-Twin, 60° DOHC, liquid-cooled, VVT |
|
Displacement |
1252 cc (76.4 cu-in) |
|
Max Power |
150 hp (112 kW) @ 8750 rpm |
|
Max Torque |
129 Nm (95 lb-ft) @ 6750 rpm |
|
Bore x Stroke |
105 mm x 72 mm |
|
Compression Ratio |
13.0:1 |
|
Fuel System |
Electronic sequential port fuel injection, downdraft intake |
|
Transmission |
6-speed gearbox |
|
Final Drive |
Chain |
|
Dry Weight |
258 kg (569 lbs) |
|
Fuel Capacity |
21.2 liters (5.6 gallons) |
|
Top Speed |
220 km/h (137 mph, estimated) |
|
Mileage |
5.1 liters/100 km (46 mpg, claimed) |
|
Warranty |
2 years unlimited mileage |
|
Price (US, 2025) |
$19,999 (Billiard Gray) (Year-2025) |
|
Price (EU, estimated) |
€18,999(Year-2025) |
|
Price (UK, estimated) |
£16,999(Year-2025) |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Steel trellis, engine as stressed member, aluminum subframe |
|
Rake |
25° |
|
Trail |
108 mm (4.3 in) |
|
Transmission |
6-speed gearbox, wet multi-plate clutch |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
47 mm inverted fork, semi-active damping, 191 mm (7.5 in) travel |
|
Rear Suspension |
Linkage-mounted monoshock, semi-active damping, Adaptive Ride Height, 191 mm (7.5 in) travel |
|
Front Brakes |
Dual 320 mm discs, Brembo 4-piston radial calipers, Cornering ABS |
|
Rear Brakes |
Single 280 mm disc, Brembo 1-piston caliper, Cornering ABS |
Wheels & Tyres
|
Specification |
Details |
|
Wheels |
Cast aluminum or laced (optional), 19-inch front, 17-inch rear |
|
Front Tyre |
Michelin Scorcher Adventure 120/70R19 |
|
Rear Tyre |
Michelin Scorcher Adventure 170/60R17 |
Components & Features
|
Specification |
Details |
|
Lighting |
Adaptive Daymaker LED headlamp, LED tail/stop, bullet turn signals |
|
Instrument Cluster |
6.8-inch TFT touchscreen, Bluetooth-enabled, H-D Connect |
|
Seat |
Dual seat, adjustable 790-813 mm (31.1-32 in) unladen, ARH lowers to ~850 mm |
|
Features |
9 ride modes (Road, Sport, Rain, Off-Road, Off-Road Plus, 4 custom), C-ABS, C-TCS, Drag-Torque Slip Control, TPMS, Adaptive Ride Height, Vehicle Hold Control, skid plate, engine guards, handguards, Euro 5 compliant |
Available Colors
|
Specification |
Details |
|
Colors (2025) |
Billiard Gray, Vivid Black, Blue Burst, Whiskey Fire/Raven Metallic |
